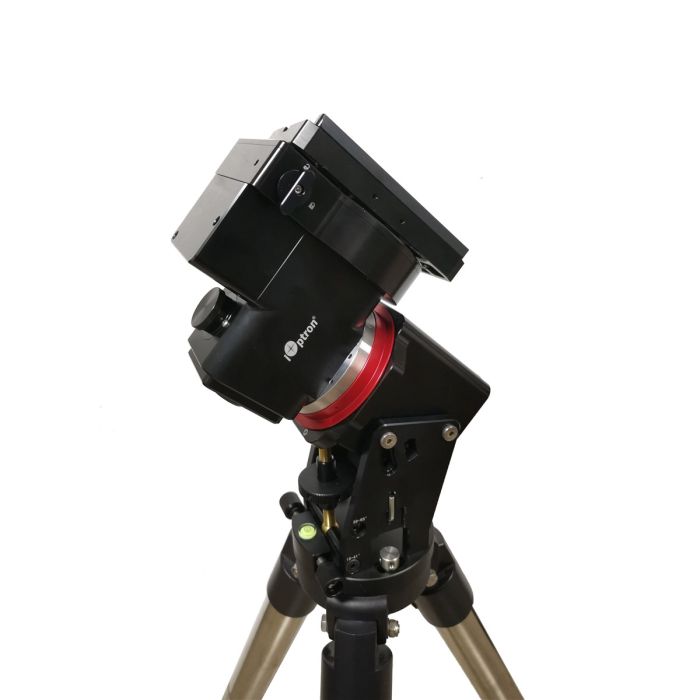

iOptron HEM44EC Hybrid Strain Wave EQ Mount Head with High Precision Encoders
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Advanced strain wave drive technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
270 second gear period - High precision encoder with realtime PEC (RPEC)
- Go2Nova® hand controller with ~212,000 object database
- iPolar electronic polar scope for easy and accurate polar alignment
- Cable management system, no hanging exterior cables to moving parts
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control
- Aluminum carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Freedom from cumbersome counterweights and shaft is here!
Introducing the HEM44EC, iOptron’s latest revolutionary hybrid strain wave gear mount. This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 13.65lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 brings this vision to reality.
Utilizing state of the art strain wave gear technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HEM44 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
The HEM44EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.
HEM44 mounts with low latitude range (0~22 degree) are available via special order.
Specifications:
- Mount: Hybrid Strain Wave Equatorial Mount
- RA gear system: StrainWave
- DEC gear system: Backlash-free worm/belt system
- RA reduction ratio: 640:1
- Payload w/o CW*: 44 lbs (20 kg)
- Mount weight:
- 13lbs (5.9kg) w/o dovetail saddle
- 13.65lbs (6.2kg) with dovetail saddle
- Payload/Mount weight: 3.23
- Payload with CW*: 55 lbs (25kg)
- Period: 270 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- High precision encoder: Yes (RA)
- PEC: Yes, Realtime PEC
- Latitude adjustment range: 15º ~ 65º
- Azimuth adjustment range: ± 6º
- Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 4.5º/sec
- Power consumption: 0.6A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Cable: No moving/wrapping
- Cable management: 2X12V (4A max.), 1X USB2.0
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB, via HC)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft :SS Φ20X200mm, M16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- iOptron® HEM44EC mount head with high precision encoder and iPolar
- Go2Nova® 8409 Hand Controller with USB port
- Internal iPolarTM electronic polar scope (HEM44A or HEM44EC)
- AC adapter 100V-240V, 12V/5A DC output, 5525 plug (for indoor use only)
- 1X coiled control Cable (6P6C RJ11 to RJ11, straight wired)
- USB cable for mount
- MiniUSB cable for iPolar
- Hardcase
- Advanced strain wave drive technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
270 second gear period - High precision encoder with realtime PEC (RPEC)
- Go2Nova® hand controller with ~212,000 object database
- iPolar electronic polar scope for easy and accurate polar alignment
- Cable management system, no hanging exterior cables to moving parts
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control
- Aluminum carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Freedom from cumbersome counterweights and shaft is here!
Introducing the HEM44EC, iOptron’s latest revolutionary hybrid strain wave gear mount. This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 13.65lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 brings this vision to reality.
Utilizing state of the art strain wave gear technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HEM44 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
The HEM44EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.
HEM44 mounts with low latitude range (0~22 degree) are available via special order.
Specifications:
- Mount: Hybrid Strain Wave Equatorial Mount
- RA gear system: StrainWave
- DEC gear system: Backlash-free worm/belt system
- RA reduction ratio: 640:1
- Payload w/o CW*: 44 lbs (20 kg)
- Mount weight:
- 13lbs (5.9kg) w/o dovetail saddle
- 13.65lbs (6.2kg) with dovetail saddle
- Payload/Mount weight: 3.23
- Payload with CW*: 55 lbs (25kg)
- Period: 270 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- High precision encoder: Yes (RA)
- PEC: Yes, Realtime PEC
- Latitude adjustment range: 15º ~ 65º
- Azimuth adjustment range: ± 6º
- Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 4.5º/sec
- Power consumption: 0.6A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Cable: No moving/wrapping
- Cable management: 2X12V (4A max.), 1X USB2.0
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB, via HC)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft :SS Φ20X200mm, M16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- iOptron® HEM44EC mount head with high precision encoder and iPolar
- Go2Nova® 8409 Hand Controller with USB port
- Internal iPolarTM electronic polar scope (HEM44A or HEM44EC)
- AC adapter 100V-240V, 12V/5A DC output, 5525 plug (for indoor use only)
- 1X coiled control Cable (6P6C RJ11 to RJ11, straight wired)
- USB cable for mount
- MiniUSB cable for iPolar
- Hardcase
