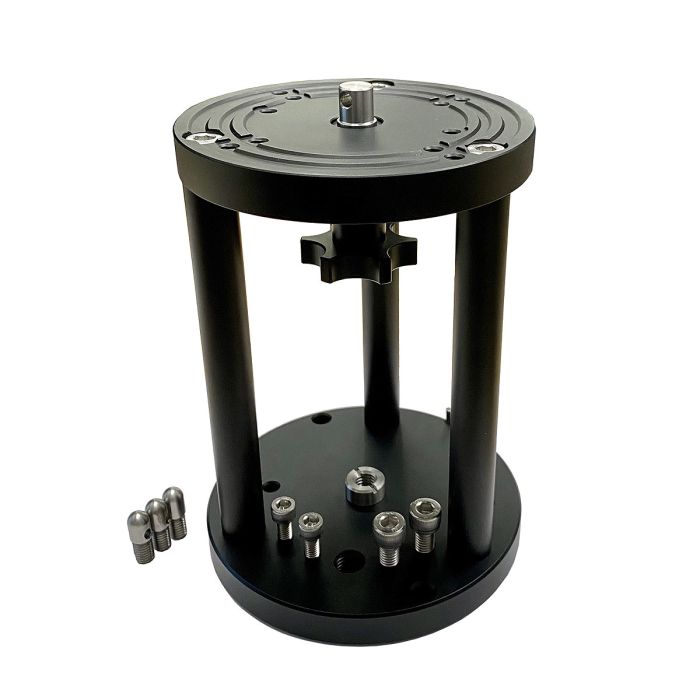

This new versatile iOptron MiniPier is designed for iOptron GOTO mounts and tripods. The design allows a tripod to access different mount head. It also provide 7" extension for a long telescope. It may fit on other brand tripods with some DIY.
Features:
- Versatile design to adapt most iOptron mounts and tripods
- CNC machined
- 3-point leveling (for 8061A carbon fiber tripod only)
The following mounts can be mounted onto the MiniPier:HAZ31/46 (3/8”-16 locking knob)
- CEM26/HEM27/GEM28/HAE29 (2X M6 screws, 83mm separation, 1X center post)
- CEM40/HAE43/HEM44/GEM45 (2X M6 screws, 103mm separation, 1X center post)
- HEM15/HAE16/HAE18 ultra compact strain wave gear mount (3/8”-16 locking knob)
- SkyTracker Pro/SkyGuider Pro (3/8”-16 locking knob)
- SkyHunter (3/8”-16 locking knob)
- Camera and other equipment with a 3/8”-16 mounting hole
The MiniPier fits these iOptron tripod/pier:
- Carbon fiber tripod (8061/8061A)
- CEM26/GEM28 tripod (2X M6 screws, 83mm separation)
- CEM40/GEM45/iEQ30 tripod (2X M6 screws, 103mm separation)
- CEM70/CEM60/iEQ45 tripod (2X M8 screws, 120mm separation)
- CEM25/ZEQ25 tripod (3/8-16 thread adapter)
- 3211 SmartEQ/SGP/STP/SkyHunter tripod (3/8-16 thread adapter)
- Tri-pier (M6 and M8screws)
- Other tripod with 3/8”-16 mounting screw or threaded mounting holes matching the plate mounting holes
DOES NOT fit onto the following pier:
- Tri-pier 360/360A
- Permanent pier
Use caution for the unbalanced heavy payload use when using leveling function.
Technical Specs:
- Height: 178mm (7")
- Top plate diameter: 124mm
- Bottom plate diameter: 134mm, with 3 recessed holes for working with 8061A for fine leveling adjustment
