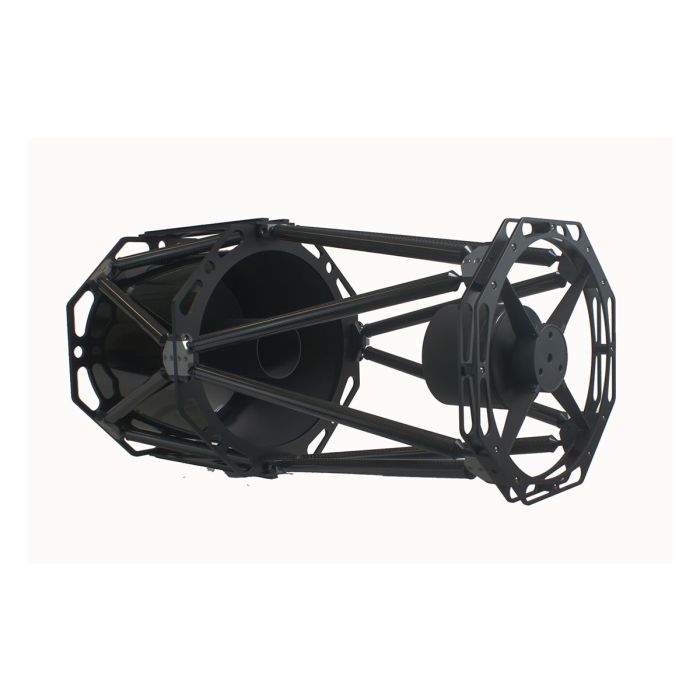

iOptron Photron 16" Ritchey-Chrétien Astrograph Telescope - Truss Tube OTA
Availability: Drop ships directly from vendor. Please contact us for an update on availability
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Photon™ line of Ritchey-Chretien astrograph telescope has been expanded with the addition of four new truss tube models (10,12,14 and 16 inch). Designed for today's astro imager, Photron™ truss tube RC telescopes deliver a sharp clear image from one edge to the other. The truss tube models are designed to carry on our long standing reputation for creating and manufacturing solid, stable, accurate tracking mounts, in a high quality RC astrograph telescope.
iOptron® Photron™ truss tube RC telescopes feature low thermal expansion quartz primary and secondary mirrors with highly reflective dielectric coatings maximizing the light getting to your eyepiece or imagine device. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color and monochrome imaging. A fixed position primary mirror eliminates image shift that occurs when focusing from other telescope designs. With 1/12th wave or better primary mirror our RC scopes delver images and views that are out of this world.
Each Photron truss tube instrument comes equipped with a dual-speed linear bearing Crayford focuser that can facilitate our optional ASCOM compliant electronic focus control. Three focuser extension rings are provided for a “flex-free” solid extension as a means to take up any unneeded back focus. Its backbone, made up of strong, light, carbon fiber truss supports hold the optics firmly in place while keeping weight to a minimum. It's open air design results in rapid cooling, reducing the "wait time" before use. Photron™ by iOptron®, RC truss tube telescopes are sure to meet or exceed even the most discriminating imager or observers expectations.
Compatible with iEAF (iOptron Electronic Automatic Focuser).
Features
- Coma free, chromatic aberration-free, spherical aberration-free optics
- 16" (406mm) optical aperture
- 3250mm focal length
- f/8 focal ratio
- Fixed primary
- Low thermal expansion quartz mirrors
- 3" Dual-speed Crayford focuser
- Optional automatic focuser iEAF (#8453)
Specifications
- Optical Design: Ritchey-Chretien
- Clear Aperture: 16" (406mm)
- Focal Length: 3250mm
- Focal Ratio: f/8
- Focuser: 10:1 Crayford dual-speed
- Focuser size: 3”
- Dovetail Bar: Losmandy-style
- Mounting Bar (Top): Losmandy-style
- Tube material: Carbon truss tube
- Tube Length: 1114mm
- Tube Weight: 93 lbs
- OTA Primary Mirror Cooling Fan: Yes (three built-in fan, with battery holder)
- Other Accessories:
- 1" long extension tube X2
- 2" long extension tube X1
- Gross Weight: 127 lbs
- Warranty: One year limited
| Free Shipping Graphic | Free Contiguous US Shipping |
|---|---|
| Telescope Focal Length | Greater than 3000mm |
| Hide Found a better Shipped Price on Frontend? | Yes |
- 16" Truss Tube RC OTA w/3" dual-speed Crayford focuser
- 2X 1" (25.4mm), 1X 2" (50.8mm) focus extension rings
- Cooling fan battery holder
- Primary and secondary mirror covers
