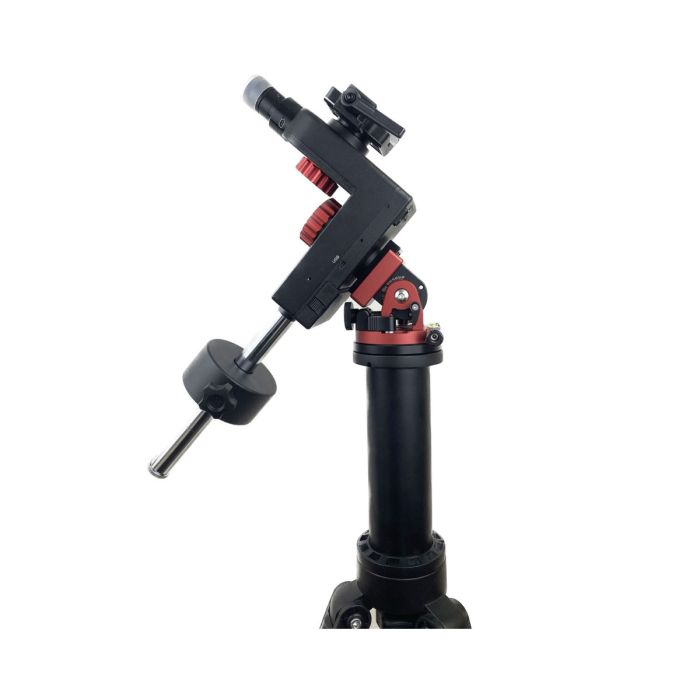

iOptron SkyHunter AZ/EQ Mount with iPolar and Precision Base
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
iOptron's new ultra compact EQ/AZ GoTo mount -- introducing The SkyHunter!
Fifteen years after releasing the innovational CubeTM AZ/EQ GoTo mount, the SkyHunterTM takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history. Weighing in at only 2.9 lbs (including internal rechargeable battery), the SkyHunter TM is capable of supporting an 11 lbs payload in both equatorial and alt-azimuth modes.
The SkyHunter mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.
The SkyHunter mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.
Features
- Specialized Grab N’ Go GOTO EQ/AZ mount
- Mount weighs 2.9 lbs (1.3kg)
- Payload 11 lbs (5kg) (balanced, exclude CW)
- Dual-axis servomotors with optical encoders
- Tracking speed: solar, lunar, 1X, 1/2X, S/N
- Operation in both northern and southern hemisphere
- Vixen dovetail saddle
- Built-in rechargeable battery for up to 10 hours of operation (20°C)
- Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari control
- USB port for firmware upgrade and computer control
- Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
- iPolar electronic polar scope
- Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
- Counterweight: 3 lbs (1.35kg)
- Attaches to a camera tripod with 3/8” or 1/4” threads
- 1.25" Stainless steel tripod (#3221)
- Optional carbon fiber tripod
- Pier-extension (#8041)
- One year limited warranty on mount, 90 day for battery
Technical Specifications:
- Mount: Ultracompact GOTO EQ/AZ mount
- Payload (Max.): 11 lbs (5kg), balanced
- Mount weight: 2.9 lbs (1.3kg) with battery
- Structure material: Metal frame structure
- Transmission: Synchronous belt
- Motor drive: Dual-axis DC servo motor with optical encoder
- Tracking speed: Solar, Lunar, Cel, 1/2 Cel, and N/S
- Maximum slew speed: 4.5°/sec (1080X)
- Worm period: 600 sec
- RA/DEC worm wheel: Φ77 mm, 144 teeth
- Hand controller: Yes (with optional 8410 HC)
- Altitude adjustment range: 0º ~ 90º
- Azimuth adjustment range: ±5º
- Power Requirement: Internal rechargeable battery
- Battery type: Li-Poly, 3.7V, 4600mAh
- Duration of operation: Up to 10 hours at 20ºC
- Polar scope: iPolar electronic polar scope
- Counterweight Shaft: Φ20mmX200mm, 3/8" thread, stainless steel
- Counterweight: 3 lbs (1.3 kg)
- Dovetail saddle: Vixen-type
- Body base connection: Vixen dovetail, 3/8” socket
- Autoguiding: ASCOM compatible
- Power charge port: MiniUSB (5V)
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Firmware upgrade: Yes (via USB port)
- Tripod: 3221 Stainless Steel, optional carbon fiber tripod
- Pier extension: Φ80x190 mm
- Operation Temperature: -10ºC ~40ºC
- Warranty: One year limited (90 day on battery)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x SkyHunterTM GOTO EQ/AZ mount
- 1x Precision AZ/EQ Base
- 1x Stainless steel counterweight shaft
- 1x 3 lbs counterweight
- 1x iPolar electronic polar scope
- 1x MiniUSB charging cable
- 1x One Year Limited Warranty (90 day on battery)
