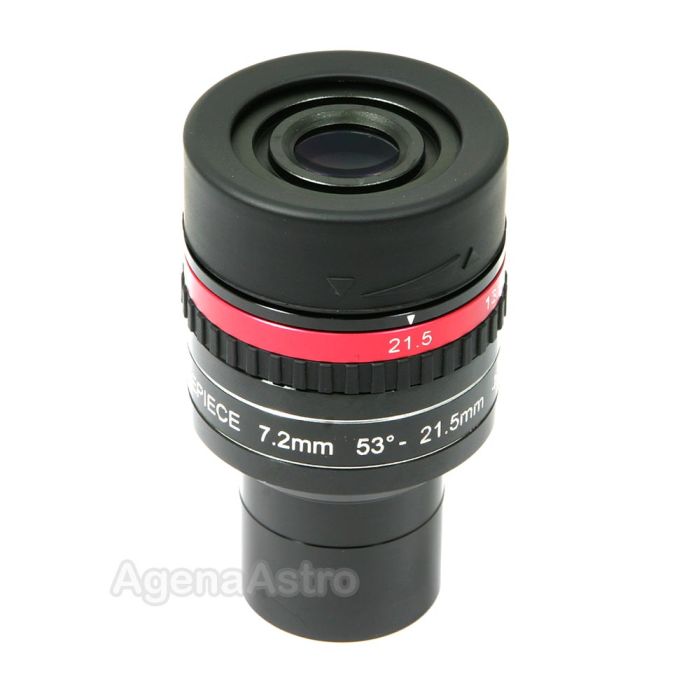

Lunt Solar Systems 1.25" 7.2mm-21.5mm Zoom Eyepiece
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Telescope zoom eyepiece with continuously variable 7.2mm to 21.5mm focal length range
- Provides a variety of viewing magnifications in a single eyepiece
- Designed for Lunt H-alpha solar telescopes, and can be used for terrestrial and night viewing with non-solar telescopes
- Provides a 40-degree field of view at 21.5mm, and a wider 60-degree field of view at 7.2mm
- 15mm eye relief for comfortable viewing
- Fully multi-coated 7-element optics for clear and crisp images
- Threaded for use with 1.25" filters when used with non-solar telescopes
The Lunt Zoom Eyepiece # LS7-21ZE offers ideal magnifications for the standard focal lengths of Lunt H-alpha solar telescopes. It's an ideal 'first look' eyepiece that allows you to quickly view the Sun at a lower magnification, then zoom to higher magnification to see interesting details.
The focal length of this 1.25" eyepiece ranges from 7.2 mm to 21.5 mm with graded markings at focal lengths of 7.2mm, 10mm, 13.5mm, and 21.5mm. The power change ring on the eyepiece features a ribbed gripping surface that makes it easy to make small power changes between these ranges, even when wearing gloves.
The optics in the eyepiece consists of 7 multi-coated lens elements in 4 groups for clear, crisp images. The apparent field of view ranges from 40 degrees at 21.5mm to 60 degrees at 7.2mm. Eye relief is a comfortable 15mm and the barrel is threaded for standard 1.25" filters when the eyepiece is used for general non-solar observing.
While designed for solar observing with a Lunt solar telescope, this eyepiece can also be used for general terrestrial or night-time observing with a non-solar telescope. (Note: For safe solar observation, this eyepiece MUST be used with a solar telescope equipped with safe solar filters).
The Lunt Zoom Eyepiece is great little eyepiece at an affordable price.
Please Note: Many zoom eyepieces will produce a muffled rattling sound when shaken. This is due to the clearances required for moving parts of the zoom mechanism, and does not indicate defects or loose lenses. This sound is completely normal.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | Zoom |
| Focal Length | 7.2mm-21.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 53° - 40° |
| Eye Relief (Designed) | 15mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Lens Elements | 7 |
| Lens Groups | 4 |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 52x80mm |
| End Caps | 2 |
| Rubber Eye Guard | Twist-up Eyecup |
| Weight | 5.5oz |
