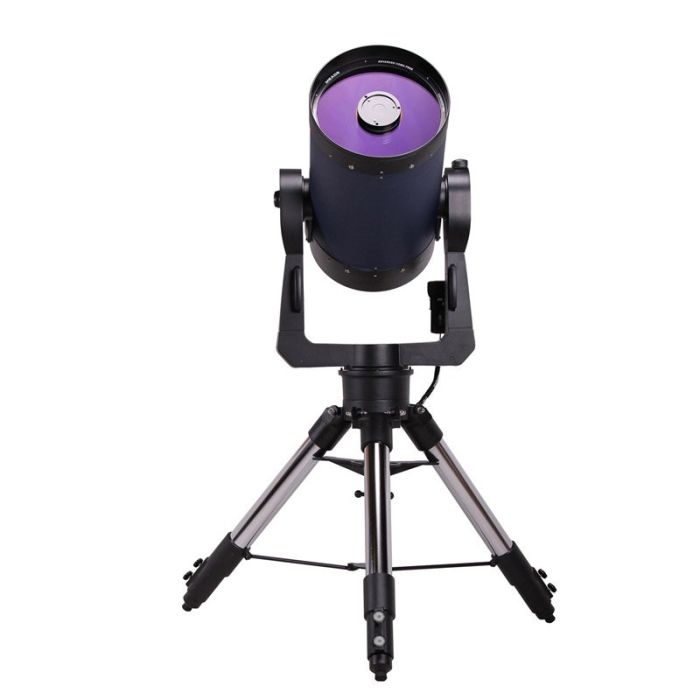

Meade 14" LX200-ACF f/10 Advanced Coma-Free Telescope with UHTC
Availability: No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 14" f/10 Advanced Coma Free Optics - 3556mm focal length
- Ultra-High Transmission Coatings (UHTC)
- Giant Field Tripod
- AutoStar II GOTO system
The most widely used research quality telescope now features the most advanced optical system. Meade’s LX200-ACF brings Advanced Coma-Free (ACF) optics within reach of aspiring astronomers everywhere. Nearly every observatory reflector in the world uses an aplanatic (coma-free) optical system like the Ritchey-Chrétien (RC), including NASA’s Hubble Space Telescope. Now you can own similar optics to what the professionals use. The LX200-ACF includes all the field-proven features of the LX200 including GPS, Primary Mirror Lock, Oversized Primary Mirror, SmartDrive; Smart Mount, AutoStar II and more. The new LX200-ACF. It’s the biggest news in astronomy since, well, the LX200.
The “advanced″ in Advanced Coma-Free. A traditional Ritchey-Chrétien (RC) is a type of reflector that delivers a coma-free, flat field of view via hyperbolic primary and secondary mirrors. Because the mirrors in these telescopes have always been very expensive to make, few amateur astronomers could enjoy them. Fortunately, Meade engineers developed a radical new Advanced Coma Free design by combining a hyperbolic secondary mirror with a corrector-lens-and-spherical-primary-mirror combination that performs as one hyperbolic element. This ACF design produces a coma-free, flat field of view that rivals traditional RC telescopes at a fraction of the cost. The design even eliminates diffraction spikes and improves astigmatism, both of which are inherent in the traditional RC design. When reviewing Meade’s LX400-ACF Advanced Coma Free, Sky and Telescope magazine said, “ [It] does indeed perform like a [Ritchey-Chrétien]. The difference between the off-axis images (compared to a Schmidt-Cassegrain) was dramatic to say the least.″
Coma Killer - What is coma? It’s not some sort of astronomical state of unconsciousness. It’s an optical aberration. Precisely defined, coma is a distortion in which the image of a star cannot be focused to a point, but takes on the shape of a comet.
f/10 Advanced Coma-Free Optics: Building from a classic RC design, Meade has created a new design with the same coma-free pinpoint star images and flatter field also reduces the astigmatism and eliminates diffractions spikes found in classical RCs. The LX200-ACF is the perfect platform for the demanding researcher and imaging enthusiast with telescopes available in apertures of 8 inches, 10 inches, 12 inches, 14 inches, and 16 inches.
Meade Ultra-High Transmission Coatings (UHTC) increases total light transmission and image brightness by nearly 20% over Meade’s standard coatings. Objects such as stars, galaxies and nebulae will appear significantly brighter.
Zero Image-Shift Microfocuser optional for the 8″, 10″, 12″,14″ and standard with the 16″ models, allows you to obtain precise image focus with no image movement. Perfect for astroimaging or during planetary observation. Focus is controlled thru the Autostar II handbox.
Oversize Primary Mirror diameters are greater than their listed aperture (e.g., the diameter of the 8″ LX200-ACF is actually 8.25″). This additional 1/4″ yields a wide, fully illuminated field-of-view.
Primary Mirror Lock locks the mirror in place preventing movement during long-exposure astrophotography.
Smart Drive provides permanent periodic error correction (PPEC) on both axes by learning and averaging error over the course of one or more training periods, thereby minimizing guiding corrections during long-exposure photographs. PPEC is available on both axes and functions in both polar and altazimuth modes.
SonyGPS Receiver Sensor automatically inputs precise time, date, and geographical location to help quickly and precisely align the telescope.
AutoAlign - Telescopes with Meade’s new AutoAlign are smart scopes that know the night sky right out of the box. AutoAlign picks two alignment stars for you and places them right in your view-finder. Just center to fine tune your alignment and the wonders of the universe are at your fingertips.
AutoStar II controller features “Hot Keys″ for quick access to a 145,000 celestial object database. AutoStar II can be updated with the latest software upgrades, guided tours and timely objects like comets free at meade.com.
Product carries full two year Meade factory limited warranty (within US/Canada only).
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | Greater than 3000mm |
| Hide Found a better Shipped Price on Frontend? | No |
- 14" f/10 Advanced Coma Free Optics - 3556mm focal length
- Ultra-High Transmission Coatings (UHTC)
- Giant Field Tripod
- AutoStar II GOTO system
The most widely used research quality telescope now features the most advanced optical system. Meade’s LX200-ACF brings Advanced Coma-Free (ACF) optics within reach of aspiring astronomers everywhere. Nearly every observatory reflector in the world uses an aplanatic (coma-free) optical system like the Ritchey-Chrétien (RC), including NASA’s Hubble Space Telescope. Now you can own similar optics to what the professionals use. The LX200-ACF includes all the field-proven features of the LX200 including GPS, Primary Mirror Lock, Oversized Primary Mirror, SmartDrive; Smart Mount, AutoStar II and more. The new LX200-ACF. It’s the biggest news in astronomy since, well, the LX200.
The “advanced″ in Advanced Coma-Free. A traditional Ritchey-Chrétien (RC) is a type of reflector that delivers a coma-free, flat field of view via hyperbolic primary and secondary mirrors. Because the mirrors in these telescopes have always been very expensive to make, few amateur astronomers could enjoy them. Fortunately, Meade engineers developed a radical new Advanced Coma Free design by combining a hyperbolic secondary mirror with a corrector-lens-and-spherical-primary-mirror combination that performs as one hyperbolic element. This ACF design produces a coma-free, flat field of view that rivals traditional RC telescopes at a fraction of the cost. The design even eliminates diffraction spikes and improves astigmatism, both of which are inherent in the traditional RC design. When reviewing Meade’s LX400-ACF Advanced Coma Free, Sky and Telescope magazine said, “ [It] does indeed perform like a [Ritchey-Chrétien]. The difference between the off-axis images (compared to a Schmidt-Cassegrain) was dramatic to say the least.″
Coma Killer - What is coma? It’s not some sort of astronomical state of unconsciousness. It’s an optical aberration. Precisely defined, coma is a distortion in which the image of a star cannot be focused to a point, but takes on the shape of a comet.
f/10 Advanced Coma-Free Optics: Building from a classic RC design, Meade has created a new design with the same coma-free pinpoint star images and flatter field also reduces the astigmatism and eliminates diffractions spikes found in classical RCs. The LX200-ACF is the perfect platform for the demanding researcher and imaging enthusiast with telescopes available in apertures of 8 inches, 10 inches, 12 inches, 14 inches, and 16 inches.
Meade Ultra-High Transmission Coatings (UHTC) increases total light transmission and image brightness by nearly 20% over Meade’s standard coatings. Objects such as stars, galaxies and nebulae will appear significantly brighter.
Zero Image-Shift Microfocuser optional for the 8″, 10″, 12″,14″ and standard with the 16″ models, allows you to obtain precise image focus with no image movement. Perfect for astroimaging or during planetary observation. Focus is controlled thru the Autostar II handbox.
Oversize Primary Mirror diameters are greater than their listed aperture (e.g., the diameter of the 8″ LX200-ACF is actually 8.25″). This additional 1/4″ yields a wide, fully illuminated field-of-view.
Primary Mirror Lock locks the mirror in place preventing movement during long-exposure astrophotography.
Smart Drive provides permanent periodic error correction (PPEC) on both axes by learning and averaging error over the course of one or more training periods, thereby minimizing guiding corrections during long-exposure photographs. PPEC is available on both axes and functions in both polar and altazimuth modes.
SonyGPS Receiver Sensor automatically inputs precise time, date, and geographical location to help quickly and precisely align the telescope.
AutoAlign - Telescopes with Meade’s new AutoAlign are smart scopes that know the night sky right out of the box. AutoAlign picks two alignment stars for you and places them right in your view-finder. Just center to fine tune your alignment and the wonders of the universe are at your fingertips.
AutoStar II controller features “Hot Keys″ for quick access to a 145,000 celestial object database. AutoStar II can be updated with the latest software upgrades, guided tours and timely objects like comets free at meade.com.
Product carries full two year Meade factory limited warranty (within US/Canada only).
