Meade 2" Photo-Visual Coma Corrector for Newtonian Telescopes
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Designed for any reflector in the f/3.5 - f/6 range
- Eliminates coma inherent in the reflector optical design, and provide sharp stars across the entire field of view
- Usable for visual work with an eyepiece as well
- Depending on the camera or eyepiece, various optional extension rings will be necessary for the correct spacing in order to reach optimal coma correction
- Fully multi-coated optics
Conquer coma and enjoy images with sharp stars across the entire field of view or photographic image frame in your fast Newtonian reflector with the 2" Photo-Visual Coma Corrector.
The 2" Photo-Visual Coma Corrector for Newtonians minimizes the coma inherent in fast Newtonian reflectors with focal ratios from f/3.5 to f/6. Coma appears as flared, comet-shaped stars and gets progressively worse farther out from the center of the field. This coma corrector greatly reduces this effect as well as the effects of field curvature, rendering sharp stars across the entire field of view or image frame. The 2" Photo-Visual Coma Corrector works for astrophotography as well as for visual observing with an eyepiece.

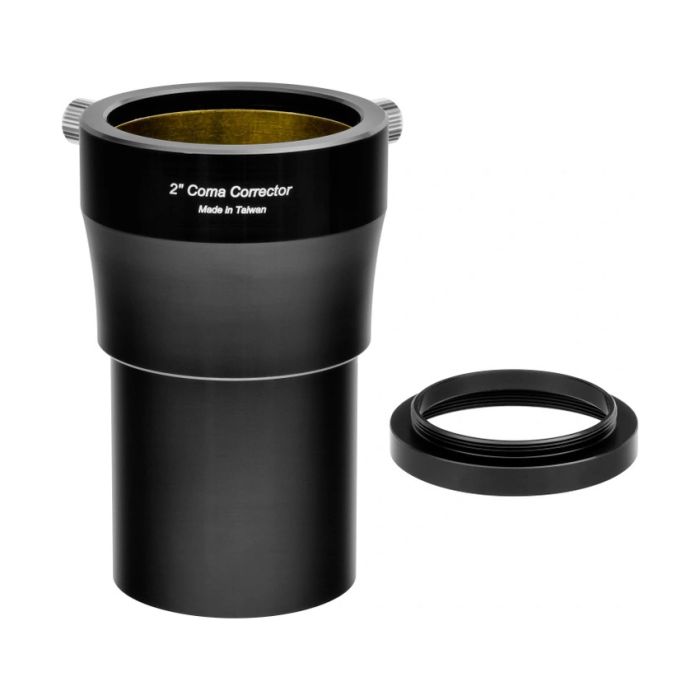

The optics are contained in a 2" nosepiece, which is threaded into the upper housing that features an eyepiece holder for 2" eyepieces. The eyepiece holder has a non-marring brass compression ring and two thumbscrews. The bottom of the nosepiece is threaded for 2" filters. The third component is an M48-to-T2 (M42) adapter ring, which is useful when using the Coma Corrector for astrophotography.
For astrophotographic use, you unthread and set aside the upper housing and use only the optics-containing nosepiece. The Coma Corrector's back focus is about 75mm. For DSLR use you'll need a 20mm spacer ring (sold separately) to achieve proper image focus. For astronomical cameras additional spacing will be required, the amount of which can be determined by factoring in your camera's sensor position relative to its front flange.
For visual use some additional spacing may be required for certain eyepieces. Some users report that adding 0.75" (19mm) of spacing between the upper housing and optical nosepiece allowed perfect focus with their wide-field eyepieces.
The 2" Photo-Visual Coma Corrector produces a 1.1x magnifying factor. The optics are fully multi-coated for maximum light throughput. Weighs 11.3 oz, assembled.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Designed for any reflector in the f/3.5 - f/6 range
- Eliminates coma inherent in the reflector optical design, and provide sharp stars across the entire field of view
- Usable for visual work with an eyepiece as well
- Depending on the camera or eyepiece, various optional extension rings will be necessary for the correct spacing in order to reach optimal coma correction
- Fully multi-coated optics
Conquer coma and enjoy images with sharp stars across the entire field of view or photographic image frame in your fast Newtonian reflector with the 2" Photo-Visual Coma Corrector.
The 2" Photo-Visual Coma Corrector for Newtonians minimizes the coma inherent in fast Newtonian reflectors with focal ratios from f/3.5 to f/6. Coma appears as flared, comet-shaped stars and gets progressively worse farther out from the center of the field. This coma corrector greatly reduces this effect as well as the effects of field curvature, rendering sharp stars across the entire field of view or image frame. The 2" Photo-Visual Coma Corrector works for astrophotography as well as for visual observing with an eyepiece.
The optics are contained in a 2" nosepiece, which is threaded into the upper housing that features an eyepiece holder for 2" eyepieces. The eyepiece holder has a non-marring brass compression ring and two thumbscrews. The bottom of the nosepiece is threaded for 2" filters. The third component is an M48-to-T2 (M42) adapter ring, which is useful when using the Coma Corrector for astrophotography.
For astrophotographic use, you unthread and set aside the upper housing and use only the optics-containing nosepiece. The Coma Corrector's back focus is about 75mm. For DSLR use you'll need a 20mm spacer ring (sold separately) to achieve proper image focus. For astronomical cameras additional spacing will be required, the amount of which can be determined by factoring in your camera's sensor position relative to its front flange.
For visual use some additional spacing may be required for certain eyepieces. Some users report that adding 0.75" (19mm) of spacing between the upper housing and optical nosepiece allowed perfect focus with their wide-field eyepieces.
The 2" Photo-Visual Coma Corrector produces a 1.1x magnifying factor. The optics are fully multi-coated for maximum light throughput. Weighs 11.3 oz, assembled.
