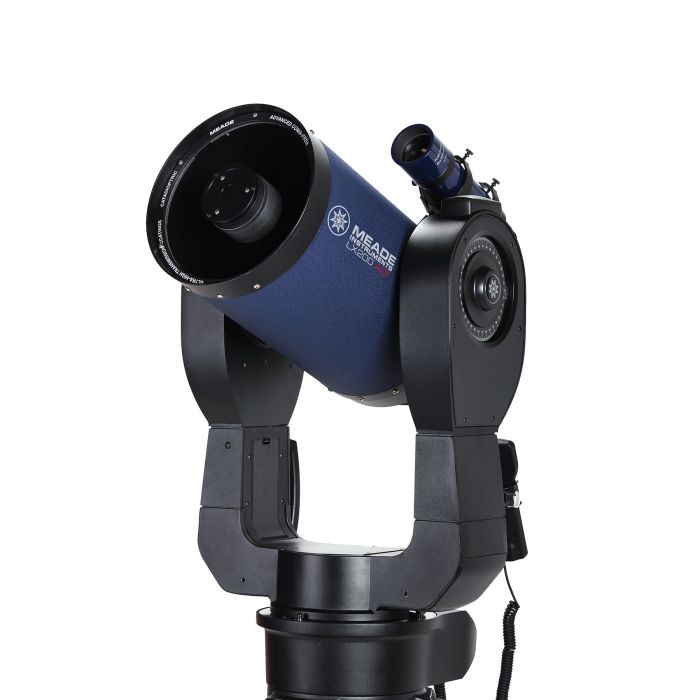

Meade 8" LX200-ACF f/10 Telescope with UHTC - No Tripod
Availability: No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 8" f/10 Advanced Coma Free Optics - 2000mm focal length
- Ultra-High Transmission Coatings (UHTC)
- AutoStar II GOTO system
This 8" LX200-ACF has 8” diameter f/10 ACF optics (focal length 2000mm) and Ultra-High Transmission Coatings (UHTC) for maximum image brightness and contrast. Features the advanced LX200 AutoStar II computer system with 145,000 object library, multiple guided tours, High Precision Pointing capability with sub arc-minute pointing accuracy, and Meade SmartDrive with Permanent Periodic Error Correction.
Precise and quick star alignment is done near effortlessly with Meade's level north technology alignment system incorporating a 16 channel GPS receiver. The Autostar II is flash-updatable via free downloads at Meade.com (optional cable required). The drive base of the telescope has multiple input and output ports including an RS-232 PC interface and jacks for a (user supplied) CCD Autoguider and illuminated reticle.
Mechanically loaded as well all LX200 models feature a primary mirror locking mechanism, which effectively prevents movement of the primary mirror during long exposure astrophotography or observing. Turn the lock knob located just above the telescopes main focus knob and the progressive-tension primary lock completely cancels any residual image shift due to mirror movement during visual, photographic, or imaging applications.
All LX200-ACF models feature the DC-servo driven super heavy duty double fork mount, the strongest and most rigid mount in its class. Fast slew speeds are from 1 to 8 degrees per second, and can be user selected at .1 degree per second increments, while fine slewing and photographic guiding speeds can be adjusted from .01x to 1x sidereal in one one-hundredth increments. The mount and all electronics are internally powered by 8 (user supplied) C-cell batteries which will typically operate the telescope for around 20 hours (optional Meade Universal AC adapter also available). The mount additionally has mechanical locks and slow motion manual controls in both axis if for some reason you found yourself without power.
The LX200-ACF comes fully equipped a 1.25" diagonal mirror, Series 4000 26mm Plössl eyepiece, 8x50 viewfinder with quick release bracket and Meade AutoStar® Suite Astronomer Edition Software for PC. Scope weight is 45 pounds with 19 pound tripod. Ships in 2 boxes.
Specifications:
- Series: LX200 Telescopes
- Warranty: 2 Year
- Experience Level: Intermediate, Advanced
- Clear Aperture: 8"
- Optical Design: Advanced Coma-Free (ACF)
- Optical Coatings: UHTC™
- Focal Length: 2000mm
- Focal Ratio: f/10
- Resolving Power (Dawes' Limit): 0.570 arc-seconds
- Oversized Primary Mirror: Yes
- Mirror Lock: Yes
- Viewfinder: 8x50mm with cross-hair reticle
- Eyepiece(s): 26mm Series 4000™ Super Plössl
- Focuser Mechanism: Single Speed Focuser
- Diagonal: 1.25" diagonal mirror
- Hand Controller: AutoStar® II
- Object Database: 145,000 objects
- Pointing Precision (High-Precision Mode): 1 arc-minute (+/-)
- Periodic Error Correction: Both Axes
- Permanent Periodic Error Correction (PPEC): Yes
- Slow Motion Controls: Mechanical & Electronic
- Slew Speeds: RA and Dec: 0.01x to1.0x sidereal, variable in 0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 2°/sec., variable in 0.1° increments.
- Tracking Rates: Sidereal, Lunar, or custom-selected from 2000 incremental rates
- Control Panel: 12v DC in, 12v DC out, Power, Focuser, Reticle, Handbox port, 2x computer connection ports (RS232), 1 Aux guide port
- Power Source: (Optional) 12v DC, 5 amp Meade Universal Power Supply
- Batteries (User-Supplied): 8 x C cells
- GPS Receiver: Yes
- True Level & North Sensors (LNT): Yes
- Time Chip: Yes
- Electronic Focuser: Optional
- Smart Mount™: Yes
- Smart Drive™: Yes
- Anti-vibration Pads: Optional
- Wedge: Optional
Product carries full two year Meade factory limited warranty.
