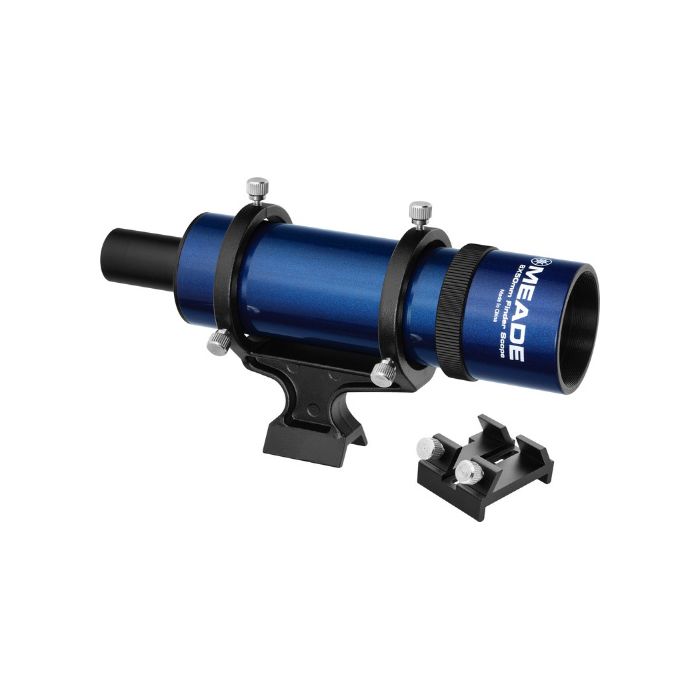

Meade 8x50 Viewfinder with Bracket and Dovetail Base
Availability: No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 8X magnification
- 4.7-deg field of view
- 6-point Aluminum bracket with dovetail mounting base
- Designed to fit SCT/ACF optical tubes
- Crosshair reticle
Easily locate and center deep sky objects with this straight-thru Meade 8x50 Viewfinder. Includes a 6-point Aluminum bracket with six nylon-tipped metal thumbscrews to protect the viewfinders polished blue finish. An extra-wide universal dovetail mounting base designed for SCT/ACF optical tubes is also included.
The finder comes with two #8-32 x ½" mounting screws to attach to the optical tube. The universal base was designed with slotted mounting holes making this compatible with both small and large aperture optical tubes. The finders mounting base includes two metal thumbscrews making it a breeze to install and uninstall the finder quickly.
The finder's large 4.7-degree field of view includes a crosshair reticle making sighting objects during the alignment process easier than looking through the main telescope's eyepiece. Focusing the finder is as simple as rotating the objective lens.
Meade 8x50 Viewfinder Specifications
-
User level: Intermediate
-
Finder scope lens diameter: 50mm
-
Field of view - angular: 4.7°
-
Coatings: Multi-coated
-
Image orientation: Inverted
-
Viewing angle: Straight-through
-
Reticle: Single crosshair
-
Illuminated: No
-
Adjustable focus: Yes
-
Weight (oz.): 170
-
Warranty: Two year
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x 8x50 Viewfinder
- 1x Finder bracket
- 1x O-ring
- 1x Dovetail base
- 2x Mounting screws
- 6x Nylon tipped adjustment screws
