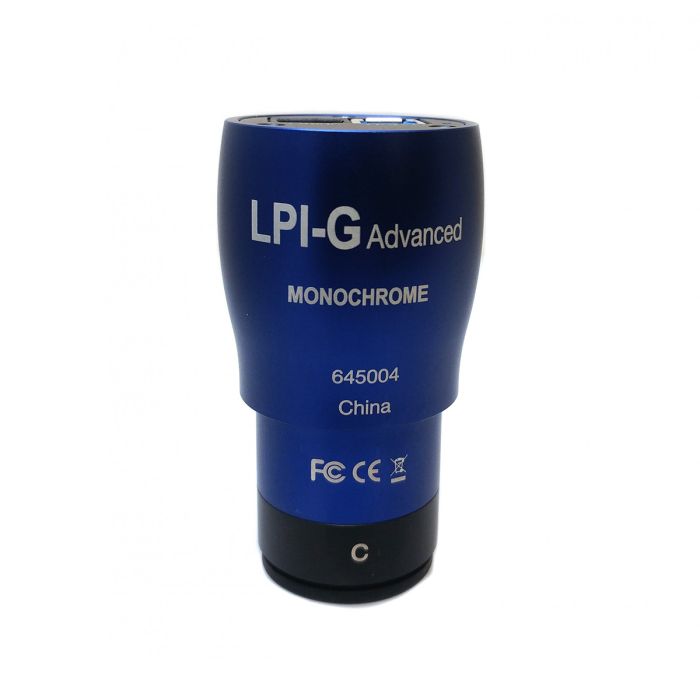

Meade LPI-G Advanced Camera - Lunar, Planetary Imager and Guider (Monochrome)
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- CMOS - SONY IMX178 Image Sensor
- 6.3 Megapixels (3072 x 2048)
- 1.25" Nosepiece, C-Mount
- 2.4µm x 2.4µm Pixel Size
- Can be used for Auto-Guiding, or Astrophotography of Solar System Objects
The LPI-G Advanced allows the user to experience our universe on a whole new level with Meade's Advanced solar, lunar, and planetary guide camera.
This USB 3.0 14-bit camera allows for increased dynamic range allowing the user to experience the universe like never before! The LPI-G Advanced features a large image sensor along with a high pixel count that allows for increased resolution, making it ideal for planets and solar imaging. The LPI-G Advanced has a back illuminated CMOS - SONY IMX178, image sensor with 2.4 x 2.4 micron pixel size and pixel array of 6.3 Megapixels (3072 x 2048). This Imager & Guider is able to take 59 frames per second at full resolution. The camera has a 3.0 connection and ASCOM ST-4 Guider Port for easy connection to the mount.
The LPI-G Advanced also includes a high-speed USB 3.0 connecting cable, ST-4 Guide Cable, 1.25" nose extension with C-Mount, and Meade Sky Capture Software on CD Rom - includes Installation and Operating instructions.
The LPI-G Advanced is able to save images in a variety of formats including: JPEG, BITMAP, FITS, TIFF, PNG, PCX, TGA & BCM. It can also save videos in either SER or AVI formats.
Will work with the following Operating Systems:
- Microsoft Windows XP (32 & 64 Bit)
- Microsoft Windows Vista (32 & 64 Bit)
- Microsoft Windows 7 (32 & 64 Bit)
- Microsoft Windows 8 (32 & 64 Bit)
- Microsoft Windows 10 (32 & 64 Bit)
- Mac OS X
- Linux
Computer Requirements: Equal to Intel Core 2.8GHz or higher. Solid State hard drive recommended for getting the maximum frame rates.
The LPI-G Advanced is available in both Color & Monochrome.
*NOTE* When using to image the Sun, use appropriate solar filters.
Specifications:
- UPC: 709942999426
- Power Source: DC 5V over PC USB port
- Warranty: 1 Year
- Contents Included
- LPI-G Monochrome camera
- High Speed USB 3.0 A male to B male gold plated connectors' cable/ 1.5m
- ST-4 Guide cable - 1.5m guide cable
- 1.25" nose extension with C-mount
- Meade Sky Capture Software on CD ROM- Includes Installation and Operating Instructions.
- Operating Temperature: -10c - 50c
- Product Dimensions: 1.24" diameter. 1.7" x 2.8" (43mm x 72mm)
- Product Weight: 3.4 Ounces
Product carries full one year Meade factory limited warranty (within US/Canada only).
