Meade 1.25" Basic Camera Adapter
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Camera adapter for use in eyepiece projection photography
- 1.25" nosepiece to fit into any standard 1.25" focuser
- Rear side features a male 42mm t-thread for attachment of t-ring or compatible camera
- Rigidly couples your camera to the telescope

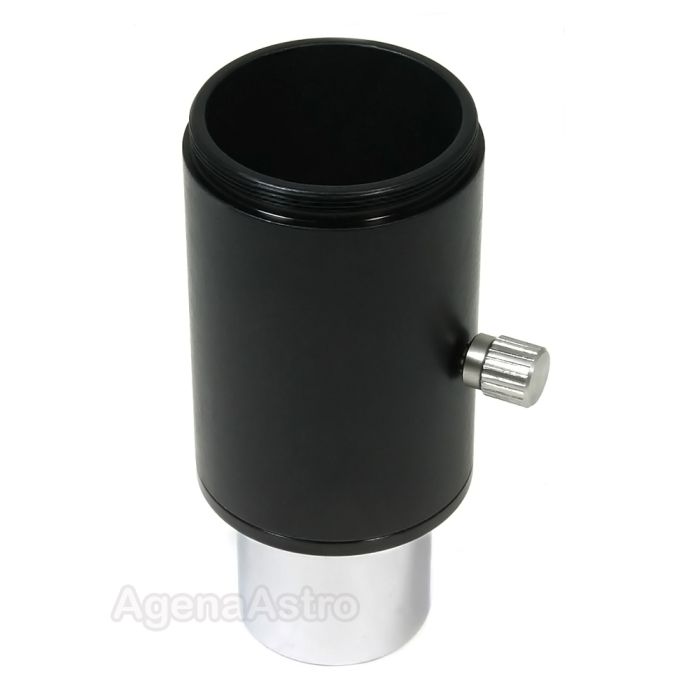

Please Note: Meade very frequently keeps changing the cosmetic appearance of the item. Over the years, they have produced this in black/silver and all black finishes, and with or without Meade branding on the adapter itself. We've seen them switch this item at least 5 times now and you will see many different photos of this item on the internet. And now, it is black/silver again with no branding as pictured above. This is again subject to change at any time.
Meade Basic Camera Adapter (1.25") #07356. For astrophotography or imaging using eypiece projection photography.
The Basic Camera Adapter (1.25") accepts an eyepiece that will project an enlarged image to the camera or imager such as a Meade DSI. A 1.25" eyepiece is typically inserted into the body of the Basic Camera Adapter, typically in the 15mm to 32mm focal length range. The machined sliding-cell assembly can be fixed at any position along its length and is held in position with 2 thumbscrews. The resulting effective focal ratio is then determined by the adjustment and eyepiece used.
For digital or film SLR type cameras a T-Mount is additionally required, ordered separately for your camera brand. The Basic Camera Adapter permits a rigid coupling of the camera to any telescope with a 1.25" eyepiece holder. The T-mount threads onto the universal threads of the T-Adapter on one side and has the bayonet-mount unique to the user's brand of 35mm camera on the other side. In this way the camera body is rigidly coupled to the telescope's optical system, which in effect becomes the camera's lens.
