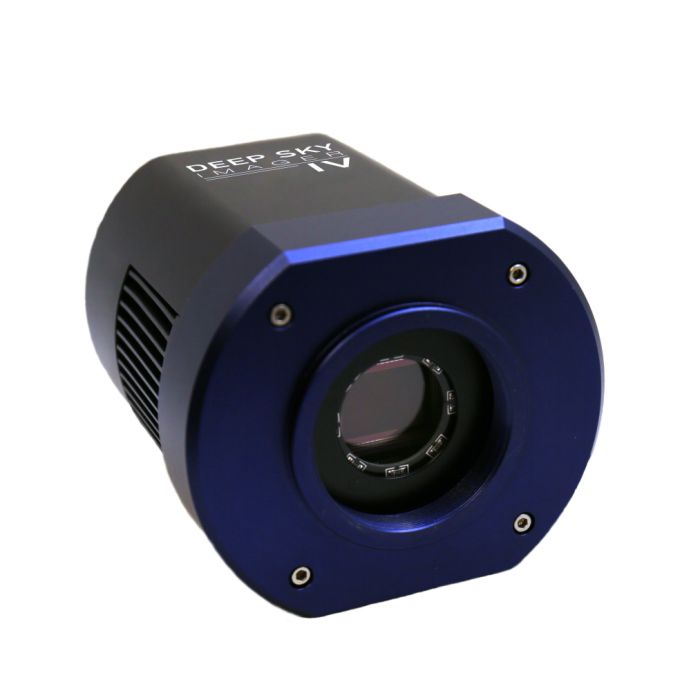

Meade DSI-IV Deep Sky Imager 16 MP USB 3.0 Camera - Monochrome
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Pixels: 16 Megapixels
- Pixel Size: 3.8μm x 3.8μm
- Frames Per Second: 23 Frames Per Second at Full Resolution
- Image/Video Format: JPEG, BITMAP, FITS/ SER, AVI
- Operating Systems: Microsoft Windows XP/Vista/7/8/9/10 (32 & 64 Bit). Mac OS X. Linux.
The acclaimed Deep Sky Imager (DSI) camera series is back, and it’s more advanced than ever. Equipped with a 16MP Panasonic CMOS image sensor, regulated two-stage thermoelectric cooler, and 3.8µm pixels, the new DSI IV is the ideal camera for all of your astrophotography pursuits. The low-noise, high-resolution and fast USB 3.0 readout make this camera suitable for both deep-sky and planetary imaging, making it one of the most versatile astronomy cameras available.
The DSI IV offers immense value beyond the camera itself. It not only comes with its own high-quality, weather-resistant hard carrying case and AC power adapter, but we’ve included a new version of SkyCapture camera control software. With complete camera control for all major operating systems including Windows, Mac OS X and Linux, SkyCapture can run automatic image capture sequences without the need to purchase additional software.
Introducing, Meade's Deep Sky Imager IV! This 12-bit camera was designed to enhance your astrophotography experience like never before. The 2-stage signal to noise ratio greatly reduces thermal noise, allowing you to take long exposed pictures of galaxies, nebulae, and star clusters with your telescope.
Specifications:
- Pixels: 16 Megapizels
- Pixel Size: 3.8μm x 3.8μm
- A/D Conversion: 10 or 12 ADS
- Framer Per Second: 23 FPS at Full Resolution
- Chip Dimensions: 4/3" (21.9mm diagonal) (17.6mm L x 13.3mm W)
- Shutter: Electronic Rolling Shutter
- Min/Max Exposure Time: MIN:0.15ms. MAX: 3,600s
- Mounting Type: M42x0.75M
- Interface Type: USB 2.0 or 3.0
- Back Focus Distance: 17.5mm
- Image/Video Format: JPEG, BITMAP, FITS / SER, AVI
- Binning: 1x1, 2x2, 3x3
- Spectral Range: 405-690nm (with IR-Cut Filter)
- Built-in USB Hub: 2 x USB 2.0 Ports
- Power Supply: DC 5V over PC USB Port. External Power Adapter for Cooling System, DC12V, 3A
- Software: Meade SkyCapture (CD-ROM Included)
- Accessories: High-Speed USB 3.0 Cable. AC Adapter. Hard Carry Case
- Product Weight: 1.51 lbs.
- Product Dimensions: 3.4" x 3.2" x 4.1"
- UPC: 709942999396
- Assembled Product Dimensions: 3.4" x 3.2" x 4.1"
- Assembled Product Weight: 1.51 lbs.
- Power Source: DC 5V over PC USB Port. External Power Adapter for Cooling System, DC12V, 3A
- Operating Temperature: -10C ~ 50C
- Product Weight: 1.51 lbs (.69 kg)
Minimum System Requirements
- Operating System: Microsoft Windows XP/Vista/7/8/10 (32 & 64 Bit). Mac OS X. Linux
- CPU Requirements: Equal to Intel Core2 2.8GHz or Higher
- Memory & USB Port: 2GB or More. USB 3.0
Product carries full one year Meade factory limited warranty (within US/Canada only).
