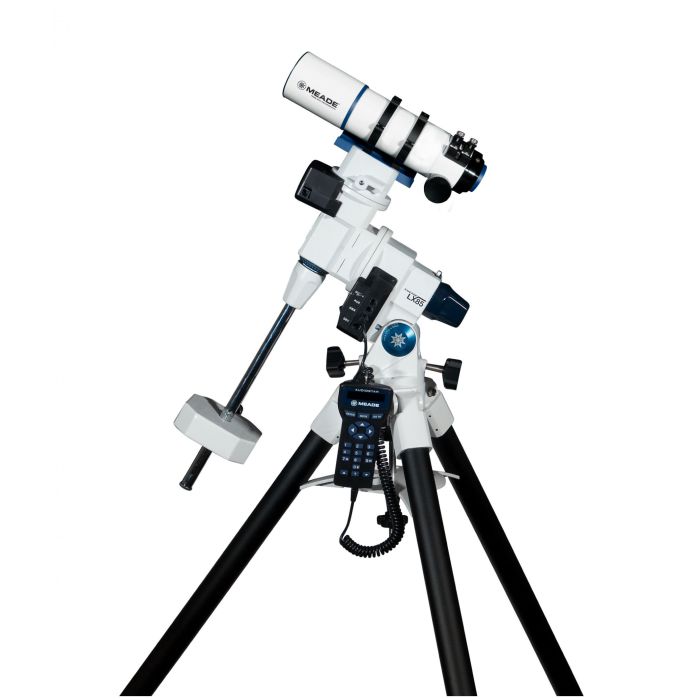

Meade LX85 Series 70mm f/5 Astrograph Telescope
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 70mm Apochromatic Refractor
- 350mm Focal Length
- f/5 Focal Ratio
- Vixen-Style Dovetail INCLUDED
- Fully extendable Dew Shield
Mount Information
- Vixen-Style Dovetail receiver
- GoTo German Equatorial Mount with 33 lb. payload capacity
- Available in 9 different OTA bundles or as a stand-alone mount!
70mm f/7 Astrograph OTA
The LX85 Series 70mm Astrograph has a 4-element petzval optical design with FPL 53 ED (extremely low dispersion) optical glass for outstanding contrast and sharpness as well as near zero detectable chromatic aberration or "color fringing." Features a 70mm aperture, 350mm focal length, and f/5 focal ratio. Equipped with a 2.5" dual rack & pinion focuser (10:1 fine focuser)f or ultra fine focus control and fully multi-coated optical coatings. Includes a fully extendable dew shield and vixen-style dovetail. Standard equipment also includes an aluminum hard carry case to protect your Astrograph. The OTA alone weighs 4.5 lbs and has dimensions of 12.25" x 4.5" x 5.5".
Sturdy GoTo Mount
Meade's new LX85 Series features a high-quality, portable, GoTo, German Equatorial Mount. The LX85 Series is the perfect choice for the cultivated observer and astro-imager looking to chase deep-sky objects! Use as a stand-alone mount or maximize your viewing potential with an array of different optical tubes to choose from. Meade's LX85 Series will keep you looking up for many years to come and sets a standard for mid-sized telescopes at a great price.
The LX85 mount features a vixen-style dovetail, for mounting optical tubes up to 33lbs, coupled with a sturdy build, that ensure smooth tracking performance. With it's included integer gearing in the motor drive, you’ll be able to track through long exposures using permanent periodic error correction (PPEC), another benefit for astrophotography. Seamlessly image the best parts of night sky with not having to worry about performing a meridian flip. This stable mount can impressively handle slight load imbalances with ease. This mount includes an integrated autoguider port to readily connect to your autoguider camera, making your astro-imaging experience easy and straightforward.
AudioStar® Hand Box
With the included AudioStar® hand controller, you have easy access to 30,000-objects, that you can view with a simple press of a button! AudioStar® features a built-in speaker that plays educational content about the celestial objects you view!
Specifications:
- Series: LX85 Telescopes
- UPC: 709942998832
- Warranty: 1 Year
- Focus System: 2.5" Dual Rack & Pinion, 10:1 Fine Focuser
- Clear Aperture: 70mm
- Optical Design: Apochromatic Refractor
- Optical Coatings: Fully Multi-Coated
- Focal Length: 350mm
- Focal Ratio: f/5
- Viewfinder: None
- Eyepiece(s): None
- Focuser Mechanism: 2.5" Dual Rack & Pinion, 10:1 Fine Focuser
- Dovetail: Vixen-Style
- Dew Shield: Yes
- Hand Controller: AudioStar™
- Object Database: 30,000 objects
- Power Source: 12v DC, 5 Amp Power Supply (Optional)
- Assembled Product Weight: 38.6 lbs.
