Meade LX85 8" ACF Telescope OTA
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 8" f/10 Advanced Coma-Free Optics - 2032mm focal length
- Ultra-High Transmission Coatings (UHTC)
- Oversized low-expansion Borosilicate primary mirror
- Vixen style mounting dovetail bar
- Includes 26mm Super Plössl eyepiece, 1.25" mirror star diagonal, and 8x50 optical finder scope

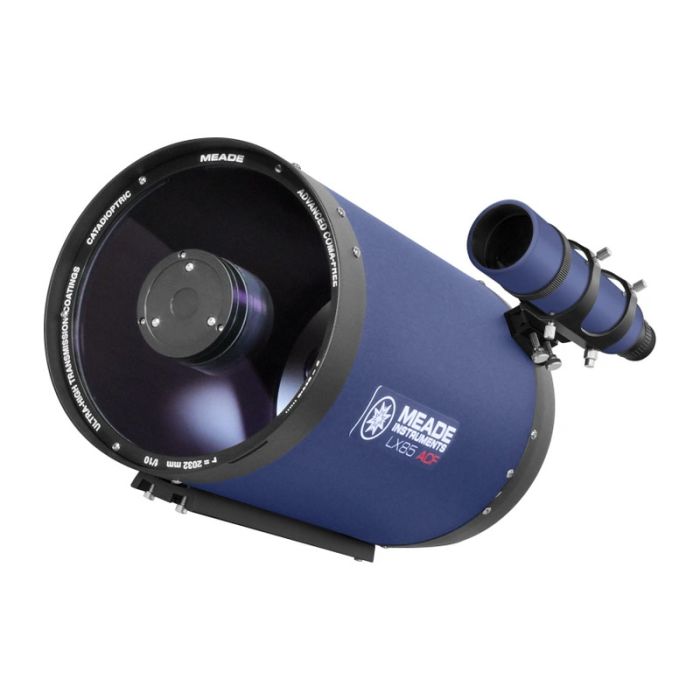

The Meade 8” f/10 LX85 ACF optical tube assembly offers large aperture in a very compact form. Designed to be portable and lightweight, and includes a Vixen-style dovetail bar mounted to the bottom of the tube which allow attachment to any Vixen compatible mount.
The Advanced Coma-Free (ACF) optical system features Ultra-High Transmission Coatings (UHTC), an oversized low-expansion Borosilicate primary mirror, a Schott® Borosilicate ® glass corrector plate, and beautiful diffraction limited optics. The ACF optical system has brought the highest level of optical performance well within the reach of amateur astronomers at an affordable price. Using this Meade exclusive design, ACF optics achieve aplanatic performance - with a flatter field, reduced astigmatism and of course no diffractions spikes impeding the view as with a reflector design.
Designed and Manufactured in North America, and the ACF primary, secondary and corrector plate glass blanks are manufactured in the USA exclusively for Meade.
Optical features include an 8" (203mm) aperture, 2032mm focal length, and f/10 focal ratio. The internal single speed focuser provides fine control of focus and the UHTC coatings provide impressive views of brighter star clusters, more fine detail in nebulae, and greater surface features on planets. Includes a 1.25" 26mm Super Plössl eyepiece and an 8x50 optical finder scope. With included accessories, the optical tube weighs 11.5 lbs (5.2kg) with dimensions of 460mm length X 250mm diameter.
Optical features include an 8" (203mm) aperture, 2032mm focal length, and f/10 focal ratio. The internal single speed focuser provides fine control of focus and the UHTC coatings provide impressive views of brighter star clusters, more fine detail in nebulae, and greater surface features on planets. Includes a 1.25" 26mm Super Plössl eyepiece and an 8x50 optical finder scope. With included accessories, the optical tube weighs 11.5 lbs (5.2kg) with dimensions of 460mm length X 250mm diameter.
Note that no mount is included with this OTA.
Specifications
- Best for viewing: Brighter deep sky
- Best for imaging: Solar, lunar, planetary & Messier objects
- Astro-imaging capability: Lunar, planetary & long exposure
- User level: Advanced
- Optical design: Advanced Coma-Free (ACF)
- Optical diameter: 203mm
- Focal length: 2032mm
- Focal ratio: f/10.0
- Finder scope magnification: 8x
- Finder scope lens diameter: 50mm
- Eyepieces: Super Plossl 26.0mm (1.25")
- Magnification with included eyepieces: 78x
- Resolving power: 0.57arc*sec
- Lowest useful magnification: 29x
- Highest useful magnification: 300x
- Highest theoretical magnification: 406x
- Limiting stellar magnitude: 14.2
- Optical quality: Diffraction limited
- Finder scope: 8x50
- Focuser: Internal
- Mount type: Optical Tube without Mount
- Tube material: Aluminum
- Weight, optical tube: 11.5 lbs.
- Additional included accessorie: Vixen style dovetail bar, 1.25" 90 degree diagonal mirror
- Other features: Ultra High Transmission Coatings (UHTC)
- Warranty: Two year
