Meade LX850 German Equatorial Mount without Tripod
Availability: No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 90 pound instrument capacity
- StarLock dual imager full time autoguider
- AutoStar II GOTO system
- Heavy-duty tripod
- Telescope to computer USB Cable and AutoStar Suite software
- Anti-vibration pads
Meade Instruments proudly introduces the new standard in astrophotograhic performance, the LX850 mount with StarLock dual imager full time autoguider. Includes AutoStar II GOTO system with over 144,000 object library and all the features an advanced visual observer or astrophotographer would ever want. Take your imaging to the next level.
The LX850 mount, constructed of machined stainless steel and aircraft grade aluminum is a rock solid platform for the most demanding applications, with a 90 pound payload capacity and pointing accuracy as good as one arcminute. Features include precision roller bearings on each axis, a 1.75 stainless steel RA shaft, 5.8" main gears, fine manual adjustment controls on both axis, illuminated reticle output port, telescope to computer USB cable and AutoStar Suite software. Mount main body weight is 55 pounds. The fully height adjustable (29 to 45") tripod features massive 3" diameter stainless steel legs for rock steady performance and weighs 36 pounds.
Includes StarLock - the revolutionary new technology that makes target acquisition on your imaging sensor and accurate guiding during exposures completely automatic. With Meade's exclusive LightSwitch technology at its core, StarLock uses an 80mm f/5 optic and two camera sensor system to provide computer assisted polar alignment using the drift method. Once aligned the StarLock is guiding the mount in real time, and even automatically programs periodic error correction, achieving a guiding accuracy of up to 1 arcsecond in good seeing and with the capability of guiding on stars as faint as 11th magnitude.

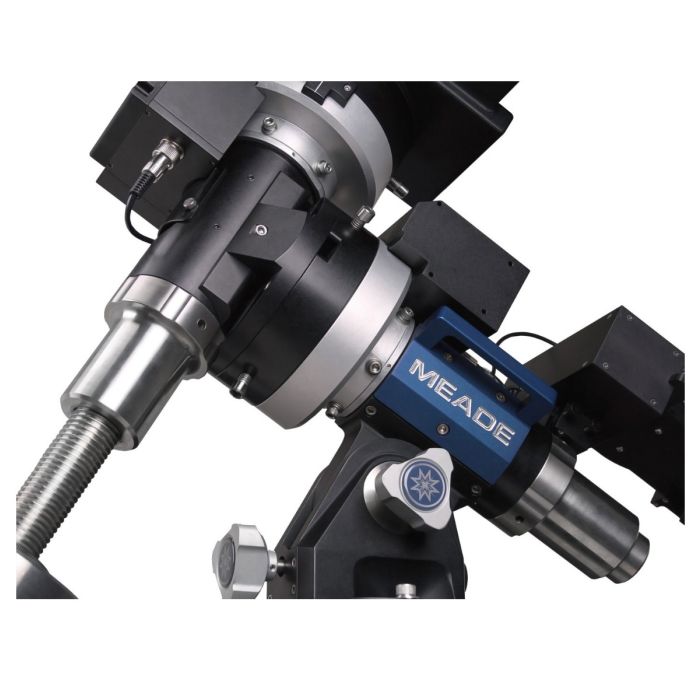

The LX850 features DC-servo motors on each axis with a maximum slew speed of 3 degrees per second, allowing slewing 180 degrees to the opposite side of the sky in one minute flat. Fine slewing and photographic guiding speeds can be adjusted from .01x to 1x sidereal, with faster slewing at 2x, 8x, 16x, or 1/4, 1/2, 1 or 3 degrees per second. The mount and all electronics are externally powered by the included Meade Universal Power Supply (12V). An external DC battery or power pack may also be used; Meade 607 Power Cord sold separately. The mount includes both mechanical locks and slow motion manual controls in both axis if for some reason you found yourself without power. Includes single 26 pound stainless steel counterweight, additional weights sold separately. LX800 mount shown in photo, LX850 mount similar.
Product carries full two year Meade factory limited warranty.
