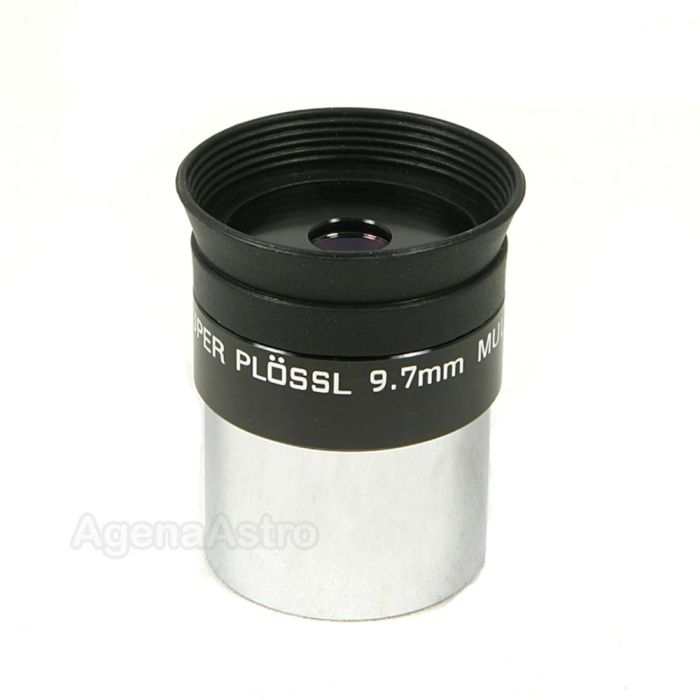

Meade Series 4000 1.25" Super Plossl Eyepiece - 9.7mm
Availability: No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 9.7mm focal length for high magnification viewing
- 52 degree apparent field of view
- Precision engineered 4-element Meade optics
- Standard 1.25" barrel
- Threaded for 1.25" eyepiece filters
This Meade Series 4000 9.7mm Super Plössl eyepiece # 07171-02 offers precision engineered Meade optics, with a wide field, sharp image, and a very satisfying view at very reasonable cost.
Utilizing the very latest in optical glass types, the Series 4000 represents an excellent general-purpose eyepiece. Engineered with a high quality 4-element design and offering a generous 52° apparent field of view, the eyepiece uses premium grade optical glass with multi-layer coatings and blackened lens edges for great image sharpness and contrast. Eye relief is 5mm.
Features a precision made standard 1.25" barrel and fold down rubber eyeguard for comfortable viewing as well as blocking stray light. Parafocal with other eyepieces of this series to minimize the need to refocus when switching eyepieces.
The Meade Series 4000 9.7mm eyepiece is a terrific value and the lowest cost way to expand your range of magnifications with genuine Meade quality optics.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Series 4000 Super Plossl |
| Focal Length | 9.7mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 5mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| End Caps | 2 |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Rubber, Fold up) |
| Weight | 3.1 oz. |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
