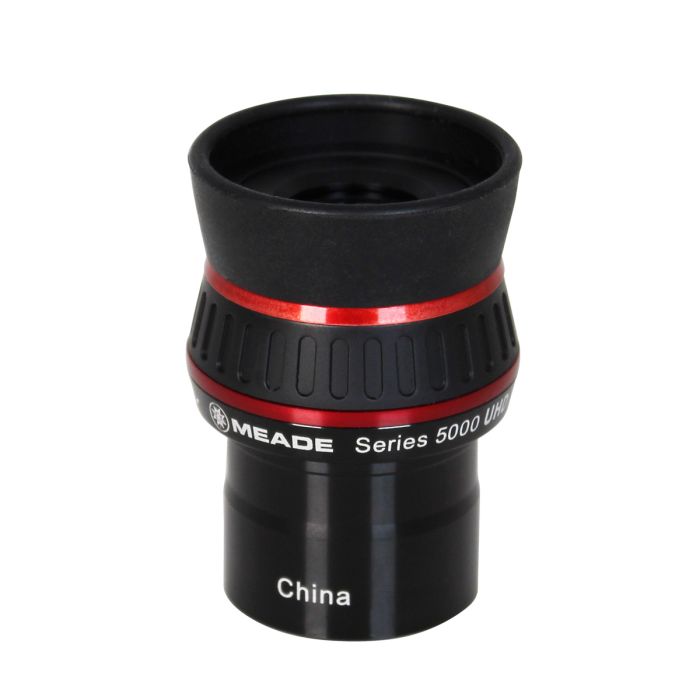

Meade Series 5000 1.25" Ultra High-Definition Eyepiece - 10mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 10mm focal length for medium-high magnification viewing
- 16mm eye relief works well even when using eyeglasses
- 60 degree apparent field of view provides a wider view than the traditional Plossl design
- Waterproof design, to protect against fog and excess dew
- 1.25" barrel diameter
Meade’s new Ultra-High Definition (UHD) Eyepieces offer a very wide field-of-view, with pinpoint edge-of-field sharpness. These latest advancements in Meade’s Series 5000 Eyepiece Series offers a fully multi-coated optical design with premium-grade, exotic optical glass for the best possible image correction in color and brightness. The blackened lens edges provide enhanced contrast and help to reduce reflections while the parfocal design delivers little-to-no focus change when switching between eyepieces. With a generous eye relief, enjoy a comfortable observing experience. UHD eyepieces deliver a 40% improvement in corrections for chromatic aberration and edge distortions over traditional Plössls.
With a waterproof design, UHD eyepieces will guard against fog and outdoor atmospheric elements. Observe your favorite celestial objects in a new and improved view.
Specifications:
- Series: Series 5000 UHD Eyepieces
- Focal Length: 10mm
- Barrel Size: 1.25"
- Apparent FOV: 60º
- Eye Relief: 16mm
- # of Elements: 5
- Optical Coatings: Fully Multi-Coated
- Blackened Edges: Yes
- Parfocal: Yes
- Barrel security recess: No
- Rubber eyeguards: Yes
- Body Material: Aluminum
- Case: No
- Waterproof: Yes
- Weight (oz.): 3
- Dimensions: 2.2 in. x 1.6 in.
| Manufacturer | Meade |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Series 5000 Ultra High Definition |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.75mm) |
| Apparent Field of View (Mfg Specified) | 60° |
| Eye Relief (Designed) | 16mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Multi-Coated |
| Lens Elements | 6 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| Height (With Eyeguard Extended) | 57.5mm |
| Maximum Width | 41.0mm |
| End Caps | 2 |
| Eye Lens Diameter | 17.0mm |
| Rubber Eye Guard | Yes |
| Warranty | Product is covered by full one year Meade factory limited warranty. |
| Weight | 102 g / 3.6 oz |
