OGMA Off-Axis Guider with 1.25" Holder and M48 / M42 Threads
Availability: Sales of this item are currently suspended on our site due to ongoing tariff uncertainties. We do not know when this will be back in stock again or at what price.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

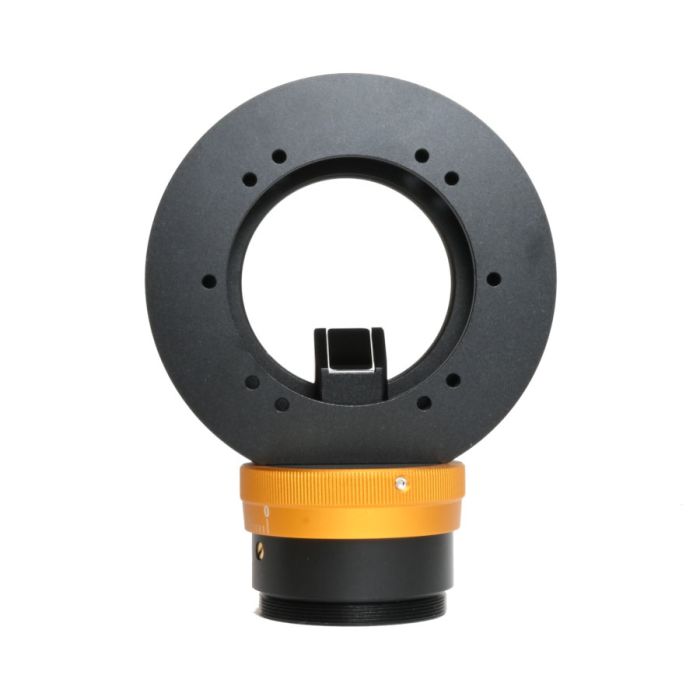

The OAGM48 Off-Axis Guider is a crucial instrument that allows astrophotographers to use the same telescope for guiding and imaging.
After adding the OAGM48 to your imaging train, the 10x10mm prism located inside the Off-Axis Guider will redirect a portion of the star field that usually doesn't fall on the primary camera sensor to a guiding camera inserted into the 1.25'' holder.
This Off-Axis Guider has an M48 thread on the side of the telescope and multiple tapped holes on the side of the camera. These holes are designed to match most filter wheels currently available in the market.
- The size of the prism is a generous 10x10mm.
- The Off-axis guider consumes 17.5mm of back focus.
- The OAGM48 can be used with or without a filter wheel.
- If you don't have a filter wheel or a Universal Filter Drawer, you can use the 20mm width spacer that comes in the package between the camera and the Off-axis guider, to help you achieve proper back focus simultaneously on both, the main and the guiding cameras.
- The smooth helical focuser will help you achieve precise focus with your guiding camera.
- The prism can be moved up and down for a precise placement.
Assembly
If you don't use a filter wheel or a filter holder, use the included adapter between the OAG and the primary camera. This will help you achieve the required back focus for your guide camera.
Remember that if your primary camera doesn't have a UV/IR window, you must use a filter wheel or a filter holder with the right filter; otherwise, you won't get sharp stars.
The Off-axis guider consumes 17.5mm of back focus when fully assembled, including the front plate.
Adapter
If you don't use a filter wheel or a filter holder, you can use the included adapter between the OAG and the camera to achieve the correct back focus of both the guiding and the main cameras.
You won't need this adapter if you use a filter wheel or a filter holder.
The preferred method for connecting this adapter is by using the provided screws to bolt it to the front of the camera. Then, bolt the OAG to the adapter.
For cameras that don't have the six threaded holes in the front, this adapter has an M54(f) thread on the camera's side, and an M48(f) thread on the OAG's side.
