Optolong L-Synergy Dual Band SII & OIII 7nm Filter - 2" Mounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
-
Isolates two critical emission lines OIII (500.7 nm), and SII (672.4 nm) each with a narrow 7 nm bandwidth
-
Offers transmission rates greater than 85% for both wavelengths
-
Effectively blocks unwanted wavelengths outside the OIII and SII bands.
-
Designed for use with one-shot color (OSC) cameras, it simplifies the imaging process by enabling the capture of both emission lines in a single exposure.
-
Built with a 2" mounted design (M48x0.75 thread), it's compatible with a wide range of telescopes and imaging setups.
Optolong L-Synergy: Double the Bands, Double the Brilliance!
Introducing the Optolong L-Synergy Dual Band Filter! This 2" mounted filter is built with dual-narrowband technology designed especially for color camera users, making it easier to capture rich narrowband data without the need for multiple filters. By isolating the OIII (500.7 nm) and SII (672.4 nm) emission lines with a narrow 7 nm bandwidth, it passes the key signals while blocking unwanted light pollution. Perfect for imaging emission nebulae, planetary nebulae, and other colorful deep-sky objects, it delivers stunning results even under bright city skies.
Optical Design
By analyzing the spectral characteristics of both celestial emission lines and light pollution, L-Synergy selectively preserves the SII and OIII nebula colors while filtering out the majority of light pollution. Specifically designed and optically optimized, L-Synergy maintains consistently high transmission across both SII and OIII bands. This ensures users can precisely capture the target nebula emissions, delivering optimal astrophotography results.

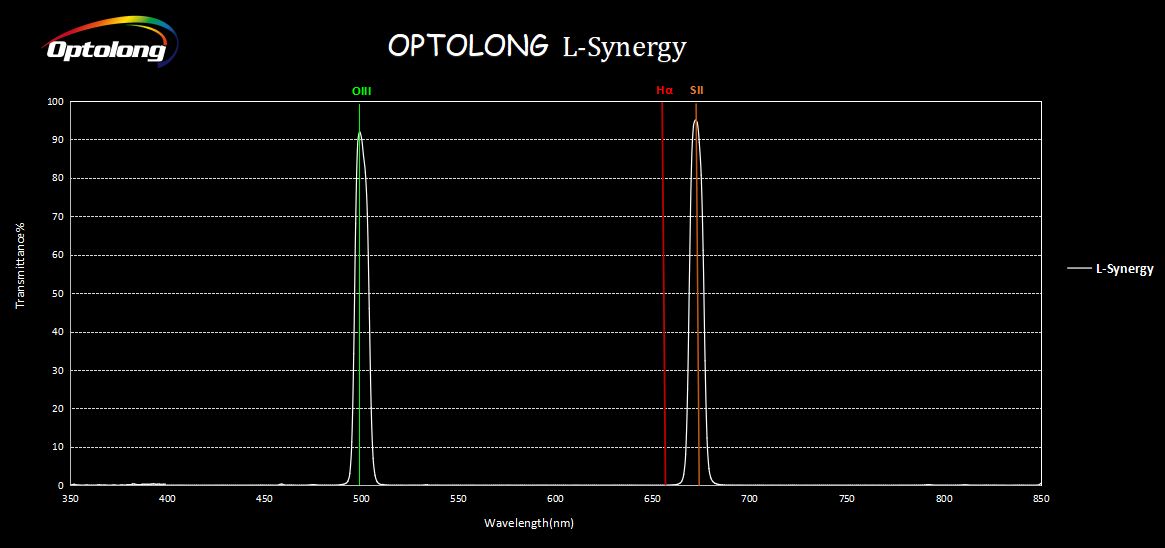

A transmission chart, like the one above, is a filter’s fingerprint! It shows which colors of light the filter lets through (the tall peaks) and which it blocks out (the flat areas), helping you see how it boosts nebula signals while cutting light pollution.
Compatability
This filter is a dual 7 nm narrowband filter compatible with DSLR/CCD cameras, and color CMOS sensors! Supporting telescope systems with ratios of f/3.3 or above (slower systems). Its key advantage lies in enabling astrophotography amateurs to capture exceptionally detailed emission nebulae even in light-polluted environments. This filter comes in a standard 2" mounted design with M48x0.75 threads, making it easy to screw into most filter wheels, focusers, and accessories. Its versatile threading ensures broad compatibility across a wide range of telescope setups!
Traditional Narrowband for OSC
The innovation of the L-Synergy filter lies in its precise combination of dual-narrowband technology designed for color camera users. By isolating SII and OIII, it fills the gap that traditional Ha + OIII filters leave behind, giving one-shot color imagers access to the missing SHO component. This makes it possible to create Hubble Palette-style deep-sky images comparable to those captured with monochrome SHO systems—without switching cameras or investing in multiple filters. The result is professional-level narrowband imaging made more accessible and affordable.
Emission Line Isolation
The L-Synergy filter selectively transmits only the nebula emission lines OIII (500.7 nm) and SII (672.4 nm) while blocking all other light-polluting wavelengths. This ensures that oxygen and sulfur signals are captured cleanly, producing a darker sky background and significantly enhancing contrast and signal-to-noise ratio (SNR). Even in heavily light-polluted areas, it effectively isolates nebula emission lines, minimizing the impact of unwanted light and delivering clearer, more detailed astrophotography.
The L-Synergy in Action!
Gear:
- Telescope: Tecnosky Carbon 200
- Camera: ZWO ASI 2600 duo
- Mount: ZWO AM5
- Filter: Optolong L-Synergy
200 × 5-minute exposures
Gear:
- Telescope: TS 90 OWL
- Camera: Omegon 571vTec
- Mount: EQ6 mod Rowan
- Filter: Optolong L-Synergy
52 × 10-minute subs
Specifications
- Filter Size: 2" (M48×0.75) threaded mount
- Emission Lines: Isolates SII (672.4 nm) and OIII (500.7 nm)
- Transmission: Greater than 85% for both SII and OIII
- Bandwidth: Each line has a 7 nm Full Width at Half Maximum (FWHM)
- Thickness: 1.85 mm
- Focal Ratio Compatibility: Designed for telescopes with a focal ratio of f/3.3 or higher
- Substrate: Multi-Coated Optical glass
| Product Banner Type | coming-soon |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x L-Synergy Dual Band Filter
- Dust Case
-
