Pegasus Astro 12V/10A DC Power Supply Unit: 2.5mm Connector Plug for UPB v1 or DewMaster (No...
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please Note: This power supply # PA-PSU-2.5 features a 2.5mm connector for use with the Pegasus Ultimate Power Box version 1 (UPB) or DewMaster only. It is NOT for use with the UPB2, Pocket Power Box (PPB) and other products that require a 2.1mm or XT60 connector.

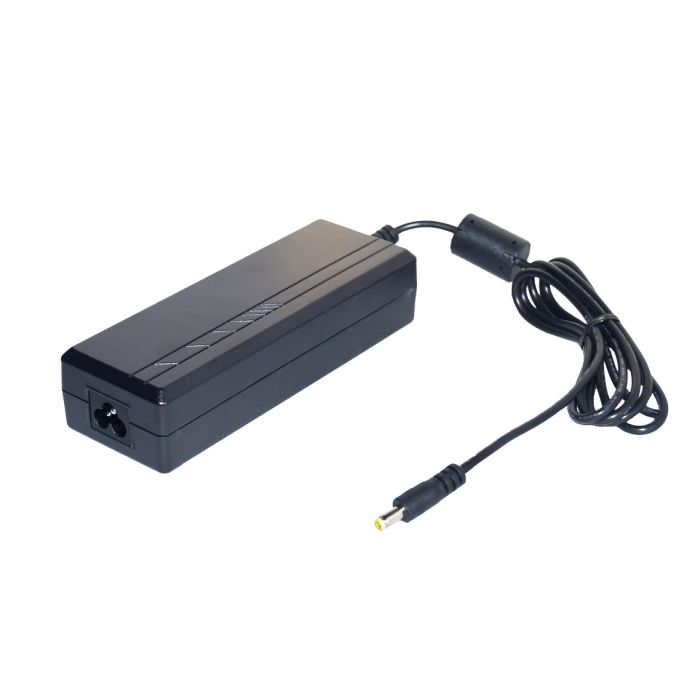

Pegasus Astro's sealed and certified switching power supply unit is the perfect match for their astronomical products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a 1.8m long US power cord.
Compatible with the following Pegasus items
- Dew Master
- UPB v1
Not compatible with the following Pegasus items
- Dew Zap: see # PSU-2.1
- DSLR Buddy (v1 and v2): see # PSU-2.1
- DMFC: see # PSU-2.1
- PPB: see # PSU-2.1
- PPB Advance (Gen 1 and Gen 2): see # PSU-2.1
- UCH: see # PSU-2.1
- UPB v2: see # PSU-XT60
Specifications
- Output Voltage: 12V
- Loading: 0-10 Amps
- Max. Power : 120 Watt
- Input Voltage Range: 90-264V
- Connector Size: 5.5 * 2.5mm (2.1mm and XT60 versions sold separately)
- Frequency: (47-63) Hz
- Cord Length: 150cm / 5 feet
- Regulated Output With Low Ripple Noise
- Sealed / Protected Enclosure (humidity / dust cannot enter)
- Safety Agency Requirements and EMI/EMS Certified
- Efficiency level (ErP) : VI
- CE and FCC certificate acquired
- Dimensions: 169 x 61 x 39 [mm]
Protections
- Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Over Voltage: The power supply will be auto recovered when faults remove
- Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
- No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6KV on request)
Certifications
