Pegasus Astro FlatMaster 150 Dimmable Flat Field Illumination Panel
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

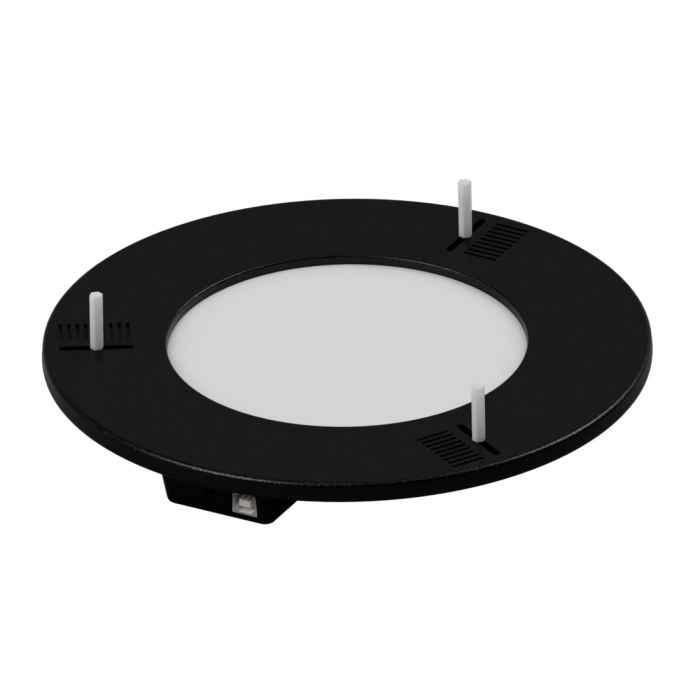

The FlatMaster 150L # FLTMSTR150L is Pegasus Astro's new LED flatfield panel that provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures.
It can be used for telescopes up to 6 inches.
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters.
Manual Button
The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one USB type B cable provides power and control of your panel.
Carry bag
A carry bag is in the package allowing you to easily transfer the FlatMaster 150L to any location.
Unity Platform support
Unity Platform allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel.
ASCOM and INDI support
The device is fully supported out of the box by ASCOM 6 & INDI.
Native support by most popular imaging software
FlatMaster is supported by popular imaging software suites:
- Sequence Generator Pro (SGPro)
- Voyager Astrophotography Automation
- Astrophotography Tool (APT)
- Nighttime Imaging ‘N’ Astronomy (N.I.N.A)
Specifications:
- Type: Led Light Panel (White)
- Dimmable: Yes – (0-100%)
- Material: Strong black ABS plastic
- Manual Push Different brightness levels
- Usable diameter of circle: 150mm / 5.9 inches
- Power requirements: 5V DC provided by USB mini cable (500mA max current)
- Size: Diameter 250mm, 8mm thickness
- Weight: 350g
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1 x FlatMaster 150 (suitable for any telescope with apperture up to 150mm or 5.9 inches)
- 1 x Carry bag
- 1 x Cable USB2 Type B 1.8m
