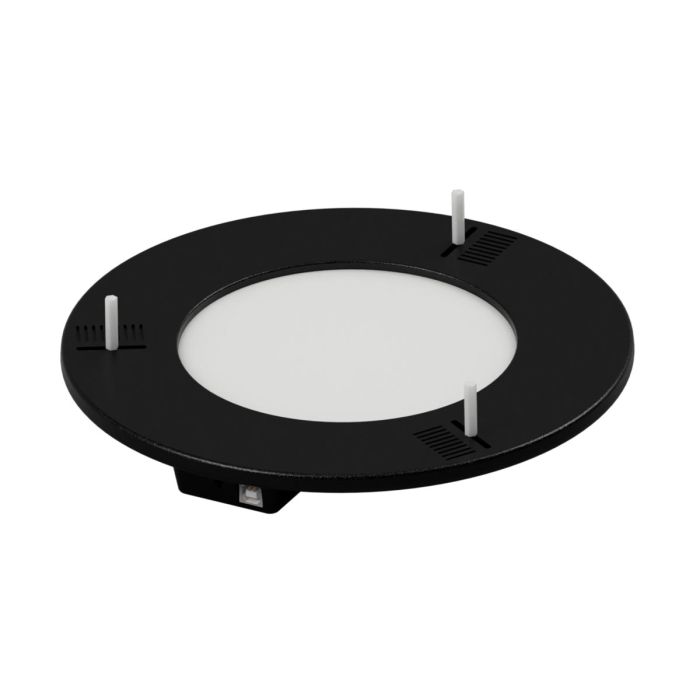

Pegasus Astro FlatMaster 150 WiFi Flat Field Illumination Panel
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
FlatMaster 150L Wi-Fi
Our new LED flatfield panel provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures.
This updated model has Wi-Fi capabilities and can be used for telescopes up to 6 inches.
Key Specs
- Dimmable Panel: The FlatMaster can adjust its brightness from 0 to 100%
- WiFi Support: Control and monitor panel brightness remotely from your mobile phone
- ASCOM Alpaca, ASCOM 7 and Indi support: The FlatMaster device is fully compatible with ASCOM Alpaca, classic ASCOM, and INDI protocols.
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters
Wi-Fi support
New Flatmaster is Wi-Fi enabled, allowing you to control and monitor panel brightness remotely from your mobile phone.
Notably, you can operate it simultaneously with USB or Wi-Fi, providing flexibility and ease of use for astronomers, all from the convenience of your smartphone.
ASCOM Alpaca, ASCOM 7 and Indi support
The FlatMaster device is fully compatible with ASCOM Alpaca, classic ASCOM, and INDI protocols.
One Cable Operation / Manual Button
Only one USB type B cable provides power and control of your panel.
The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
Native support by most popular imaging software
Sequence Generator Pro (SGPro)
Voyager Astrophotography Automation
Astrophotography Tool (APT)
Nighttime Imaging ‘N’ Astronomy (N.I.N.A)

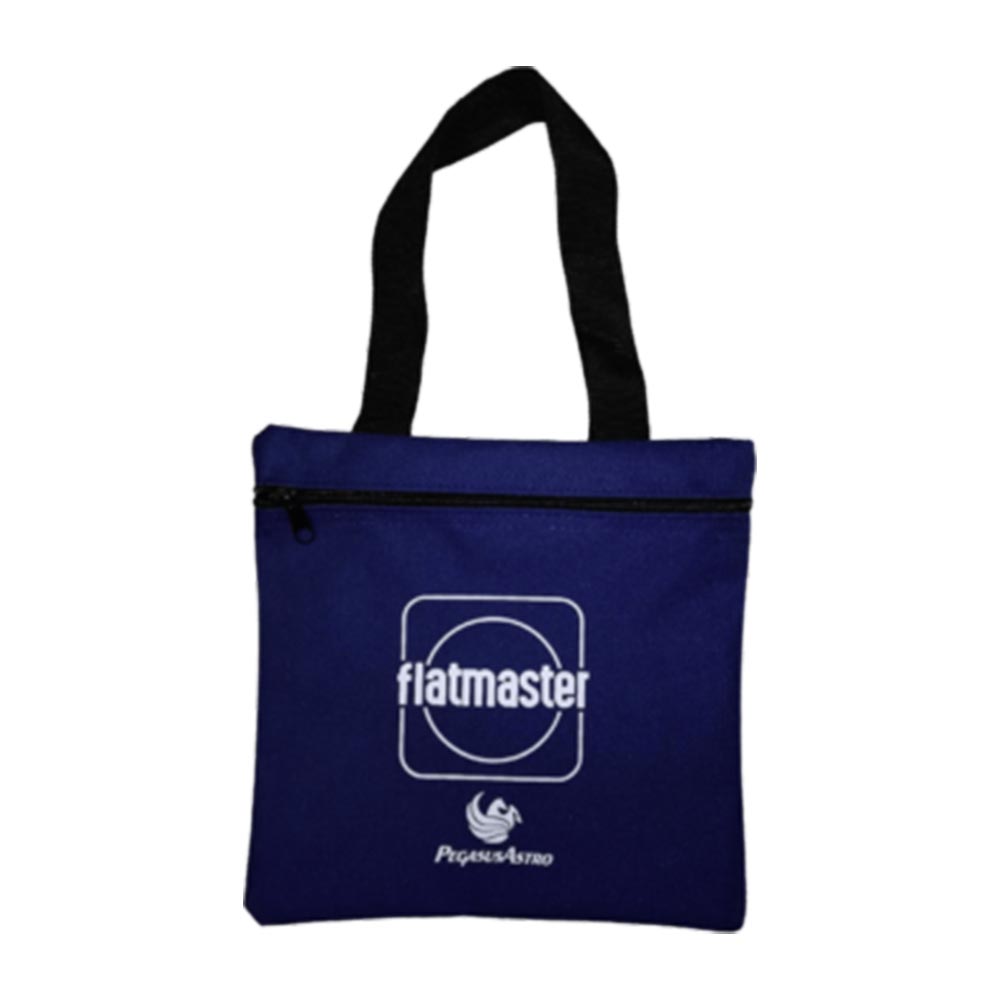

Carry bag
A carry bag is in the package allowing you to easily transfer the FlatMaster 150 to any location.
FlatMaster Wi-Fi Dashboard
Once connected to the FlatMaster Wi-Fi hotspot, you can access the control the panel light brightness by simply entering “flatmaster.local” into any web browser
This feature is operating system-independent and works seamlessly alongside USB control, offering flexibility and convenience across a wide range of setups.
Specifications
- Type: Led Light Panel (White)
- Dimmable: Yes – (0-100%)
- Material: Strong black ABS plastic
- Manual Push Button: Different brightness levels
- Usable diameter of circle: 150mm / 5.9 inches
- Power requirements: 5V DC provided by USB mini cable (500mA max current)
- Size: Diameter 250mm x 8mm thickness
- Weight: 350g
- Wi-Fi Capabilities: Access Point or Client (at 2.4GHz)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- [1x] FlatMaster 150 (suitable for any telescope with aperture up to 150mm or 5.9 inches)
- [1x] Carry bag
- [1x] Cable USB2 Type B 1.8m
FlatMaster 150L Wi-Fi
Our new LED flatfield panel provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures.
This updated model has Wi-Fi capabilities and can be used for telescopes up to 6 inches.
Key Specs
- Dimmable Panel: The FlatMaster can adjust its brightness from 0 to 100%
- WiFi Support: Control and monitor panel brightness remotely from your mobile phone
- ASCOM Alpaca, ASCOM 7 and Indi support: The FlatMaster device is fully compatible with ASCOM Alpaca, classic ASCOM, and INDI protocols.
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters
Wi-Fi support
New Flatmaster is Wi-Fi enabled, allowing you to control and monitor panel brightness remotely from your mobile phone.
Notably, you can operate it simultaneously with USB or Wi-Fi, providing flexibility and ease of use for astronomers, all from the convenience of your smartphone.
ASCOM Alpaca, ASCOM 7 and Indi support
The FlatMaster device is fully compatible with ASCOM Alpaca, classic ASCOM, and INDI protocols.
One Cable Operation / Manual Button
Only one USB type B cable provides power and control of your panel.
The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
Native support by most popular imaging software
Sequence Generator Pro (SGPro)
Voyager Astrophotography Automation
Astrophotography Tool (APT)
Nighttime Imaging ‘N’ Astronomy (N.I.N.A)
Carry bag
A carry bag is in the package allowing you to easily transfer the FlatMaster 150 to any location.
FlatMaster Wi-Fi Dashboard
Once connected to the FlatMaster Wi-Fi hotspot, you can access the control the panel light brightness by simply entering “flatmaster.local” into any web browser
This feature is operating system-independent and works seamlessly alongside USB control, offering flexibility and convenience across a wide range of setups.
Specifications
- Type: Led Light Panel (White)
- Dimmable: Yes – (0-100%)
- Material: Strong black ABS plastic
- Manual Push Button: Different brightness levels
- Usable diameter of circle: 150mm / 5.9 inches
- Power requirements: 5V DC provided by USB mini cable (500mA max current)
- Size: Diameter 250mm x 8mm thickness
- Weight: 350g
- Wi-Fi Capabilities: Access Point or Client (at 2.4GHz)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- [1x] FlatMaster 150 (suitable for any telescope with aperture up to 150mm or 5.9 inches)
- [1x] Carry bag
- [1x] Cable USB2 Type B 1.8m
Pegasus Astro FlatMaster 150 WiFi Flat Field Illumination Panel # FLTMSTR150L-WiFi
