Pegasus Astro FlatMaster 250 Dimmable Flat Field Illumination Panel
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

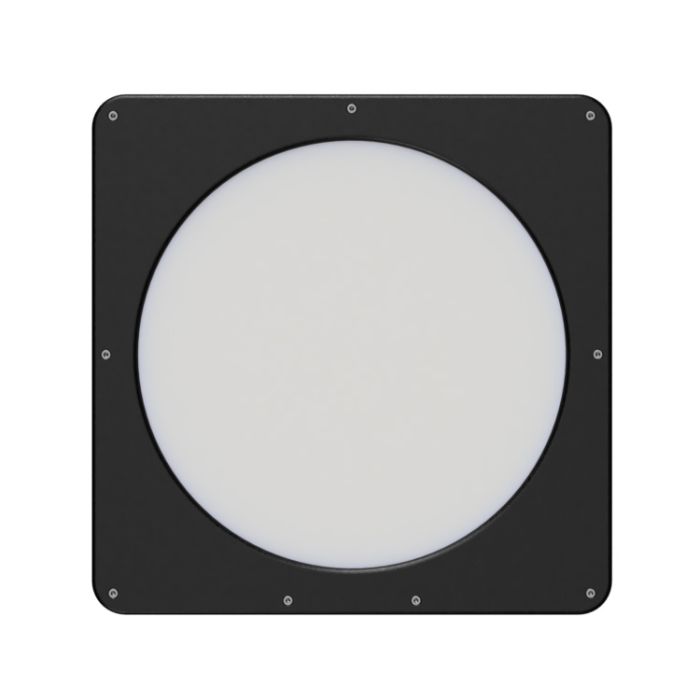

This is the updated version of the Pegasus Astro FlatMaster 250L, their bigger, slimline, flatfield panel. It provides a uniform source of illumination for up to 10-inch telescopes and produces high-quality flat field frames for astrophotography and photometric captures.
Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 250L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters.
Manual Button
The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one cable (USB) is required to provide power and control of your flatpanel.
Unity Platform support
Unity Platform allows you to set filter names and store/retrieve brightness levels of your FlatMaster panel.
ASCOM and INDI support
FlatMaster 250L supports the latest ASCOM and INDI framework.
Native support with popular imaging software
FlatMaster is supported by popular imaging software suites:
- Sequence Generator Pro (SGPro)
- Voyager Astrophotography Automation
- Astrophotography Tool (APT)
- Nighttime Imaging 'N' Astronomy (N.I.N.A)
Specifications:
- Type: Led Light Panel (White)
- Dimmable: Yes – (0-100%)
- Material: Strong black ABS plastic
- Manual Push Button: On each click applies a different brightness level
- Usable diameter of circle: 250mm / 10 inches
- Power requirements: 5V DC provided by USB mini cable (500mA max)
- Size: Diameter 250mm x 8mm thickness
- Weight: 840g
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1 x FlatMaster 250L (suitable for any telescope with apperture up to 250mm or 10 inches)
- 1 x Cable USB2 Type B 1.8m
