Pegasus Astro FlatMaster Neo 125 Retractible Flat Field Illumination Panel
Availability: Expected mid-November
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

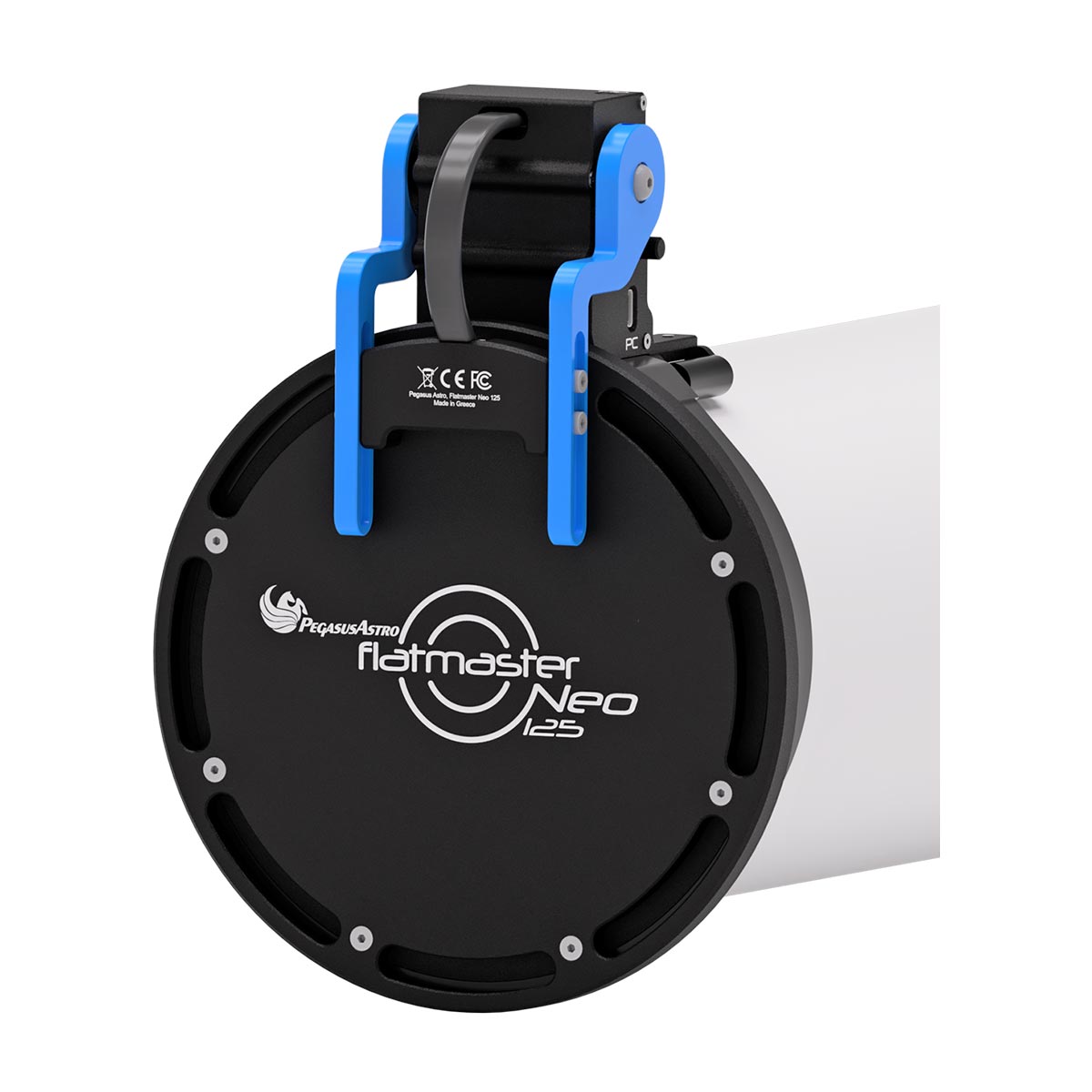

FlatMaster Neo
Our new retractable LED flat-field panel delivers a uniform illumination source for telescopes up to 125mm, ensuring high-quality flat-field frames for astrophotography and photometric captures.
Its adjustable lid can be precisely positioned between 0° and 270°, doubling as a protective cover against dust and moisture for your telescope lens.
Crafted from lightweight, aircraft-grade aluminum, the Flatmaster Neo offers a durable and robust design to safeguard your telescope lens.

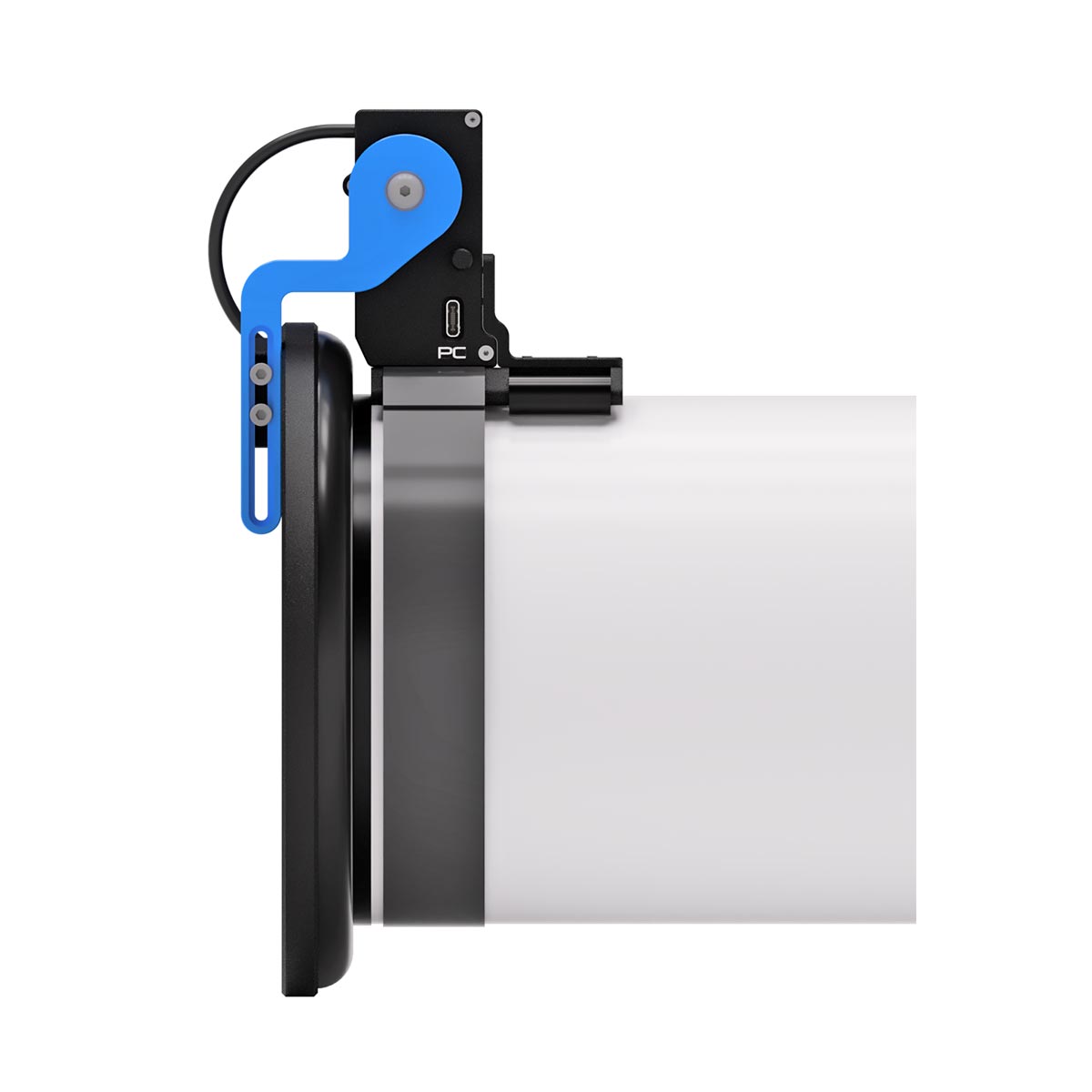

Dimmable LED Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster Neo can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters

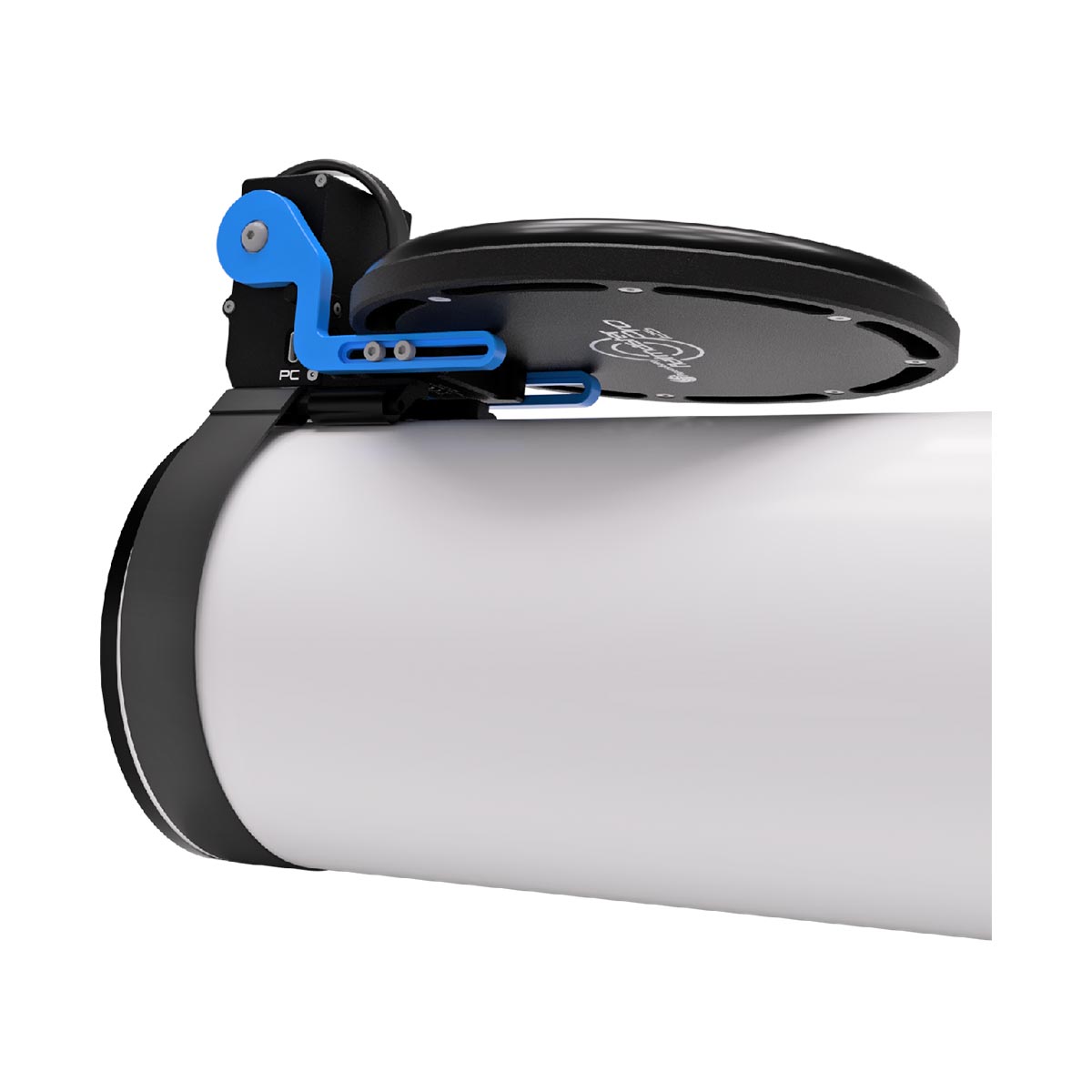

Retractable Panel
The panel can be remotely controlled and adjusted between 0° and 270°. To prevent collisions with obstacles, you can set a custom maximum opening angle.
Designed to fit any telescope up to 125mm, FlatMaster Neo features a specialized silicone flange that ensures a light- and dust-proof seal around your optical elements.
Additionally, this flange helps shield the surrounding area (e.g., in shared host observatory) when the LED is illuminated during flat-frame calibration.
Wi-Fi Control and Standalone Dashboard
The device features built-in Wi-Fi, allowing you to connect and control it either via its own Wi-Fi hotspot or as a client on an existing network.
Its integrated web dashboard is accessible from any mobile application, providing seamless and intuitive control.
ASCOM and ASCOM Alpaca
The device is fully supported out of the box by ASCOM 7 & ASCOM Alpaca.
One Cable Operation / Manual Button
Achieving perfect focus is easy with the ZWO EAFN! Start by manually rough-focusing your stars. Then, run an autofocus routine in the ASIAIR app (pictured) or your preferred software. The EAFN moves the focuser in and out, measuring star size to generate a V-curve — the lowest point marks perfect focus. The EAFN automatically adjusts to this point and can re-focus after filter changes, meridian flips, or at set intervals to account for temperature shifts.
Dew Heater and Sensors
- The device panel features an integrated dew heater that actively removes moisture when fully powered, ensuring a dry, dew-free surface. This prevents water droplets from getting trapped between the lid and the telescope lens after closing.
- Additionally, a built-in temperature and humidity sensor automatically adjusts the heater based on calculated dew point levels. You can enable or disable this feature as needed or manually set and store the heater’s intensity.
- A built-in light sensor further enhances automation by automatically closing the lid at sunrise.

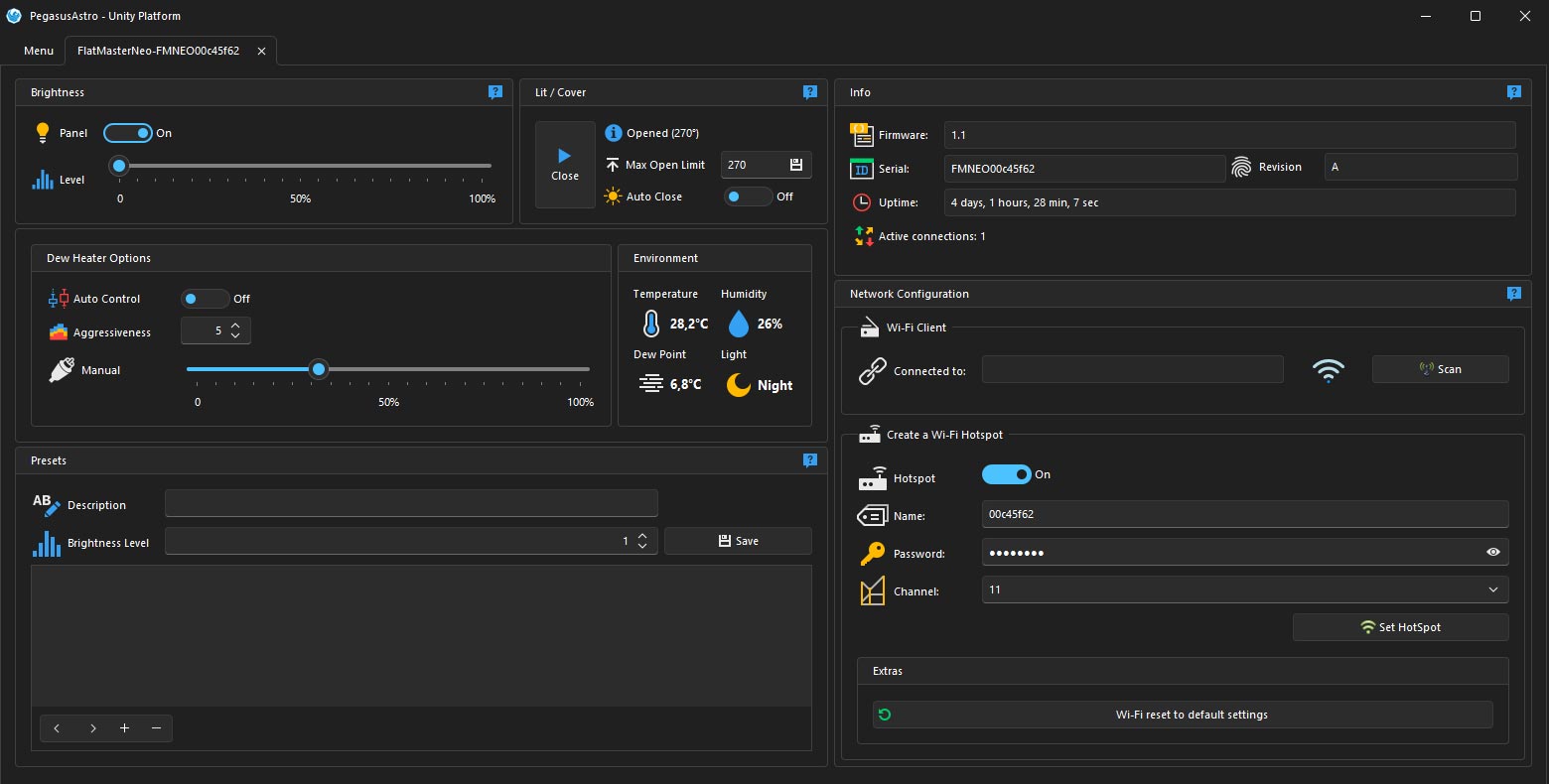

Control FlatMasterNeo through Unity Platform
Specifications
- Type: Servo (0-270 degrees) with LED Light Panel (White)
- Dimmable: Yes - (0-100%)
- Material: Aircraft Grade Aluminium
- Manual Push Button: Different brightness levels
- Usuable Diameter of Circle: 125mm
- Power Requirements: 5V DC provided by USB mini cable (1.5A max current)
- Size: Diameter 250mm x 8mm thickness
- Weight: 400g
