Pegasus Astro FocusCube 2 Focuser Motor - For Celestron 11" SCTs
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Focus your telescope quickly, reliably and accurately by using the “FocusCube 2″. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in small periods of time as temperature can affect focal length and modify the optimal focus position. Pegasus' FocusCube has been developed to meet all of these requirements.
Featuring high quality modern electronics, the FocusCube can provide precise digital focus control from a PC. The device includes a stepper motor for absolute position focusing. The electronics and stepper motors are enclosed in a compact sized box. Do not be fooled by its size! This device can easily lift more than 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!
This stepper motor is a high resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale! You only need this device to focus! Attach the FocusCube to your refractor / reflector / SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!
1. High torque & resolution stepper motor
Embedded unipolar stepper motor has a powerful and very low backlash gearbox. Motor step angle is 7.5 deg but the 1:120 reduction gearbox turns the reduction rate to 0.06255 deg / step. As firmware implements half step drive, the motor can execute twice the steps per cycle. This means 11510 steps per cycle! Bottom line: You can focus in microns, easily and with great accuracy.
The motor can lift up to 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!
2. Two designs
You can choose between:
- Universal bracket: which fits many non-SCT focusers on the market (sold separately) or
- SCT Brackets: SCT bracket fits Celestron C Series, Celestron Edge and Celestron RASA telescopes. These are available in 3 versions:
- Celestron Classic / Edge / RASA 6", 8" and 9.25" telescopes (sold separately)
- With 13mm metal pulley bore diameter and M3x15mm bolts
- Celestron Classic / Edge 11" telescopes (this item)
- With 22mm metal pulley bore diameter and M3x30mm bolts
- Not compatible with RASA 11" since that scope has a Feathertouch focuser knob, unless you have Celestron's "Focuser Retrofit Kit for RASA 11" # 94255"
- Celestron Classic / Edge / RASA 14" telescopes (sold separately)
- With 22mm metal pulley bore diameter and M4x40mm bolts
- Celestron Classic / Edge / RASA 6", 8" and 9.25" telescopes (sold separately)
Universal L Bracket

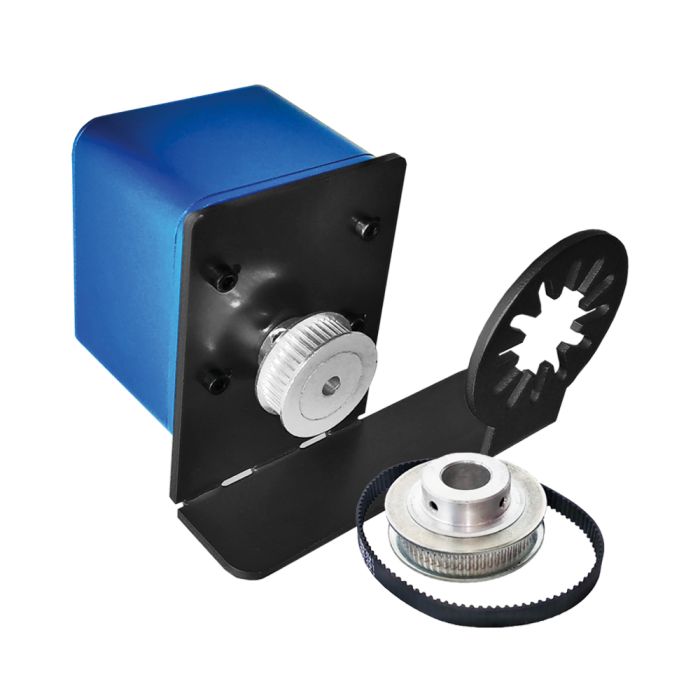

FocusCube SCT Bracket
3. Temperature Probe
An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is always included)
4. Expansion Port / Manual Focus (optional accessory)
The FocusCube includes an expansion RJ45 port on the left side. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality.
Please Note: Hand Controller is an optional accessory
5. ASCOM supported
The controller is fully compatible with latest ASCOM 6.4
Autofocus via SGPro
6. INDI (Open Astronomy Instrumentation) supported
The Pegasus Focuscube is fully compatible with INDI. Driver is included in stable libindi.
Official Indi Driver: http://indilib.org/devices/focusers/pegasus-dmfc.html
7. Standalone program supported
The controller can be operated by the standalone software (only available for Windows).
8. All cables are included
- A 1.8m USB Type B cable is included in the package.
- A 1.5m Cigarette lighter adapter power cable is included in the package
9. Firmware upgrade support
Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.
10. 2 Years warranty
For the FocusCube device and the temperature sensor.
11. Compact size
56 x 63 x 39 mm / Weight 300g
12. Specifications
- Supply Voltage: 12V - 13.8V DC
- Motor Compatibility: Stepper Motor is inside the enclosure
- Motor Output: None (Stepper Motor inside in the enclosure)
- USB Connectivity: USB 2.0 Type B plug
- Thermal Sensor Resolution: 9-bit Celsius temperature measurements
- Power Input Connector: 2.1mm Centre Positive Socket
- Motor Specs: High resolution geared stepper motor
- (Step Angle (Deg) 7.5 / 120
- (Gearbox reduction rate = 0.06255 Deg).
- 5755 steps per circle of rotation.
- * Firmware implements half step drive so one motor cycle is 5755 x 2 = 11510 steps
- Very low backlash
- Dimensions: 56 mm x 63 mm x 39 mm
- Weight: 300g
- Operating Temperature: -40 ºC to +80 ºC
