Pegasus Astro Universal L Bracket Hardware Kit for FocusCube or Motor Focus Kit
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Do you have an SCT version (Large or Small) of the Pegasus FocusCube (v1 or v2) or Motor Focus Kit (v1 or v2), but you now want to use the same motor on a different, non-SCT telescope? If yes, then this hardware kit will allow you to use the motor you already have, saving you the cost of buying an entirely new and complete Universal FocusCube or Motor Focus Kit.
- Hardware kit consisting of Universal L bracket, couplers and bolts. Motor not included.
- Same hardware that is included with Pegasus Astro's FocusCube Motor (v1/v2) or Motor Focus Kit (v1/v2) (Universal versions).
Universal L Bracket Hardware Kit # PEG-UNIV-KIT
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
Five solid different bore size motor couplers are provided so you can select the coupler that fits to your focuser’s shaft. Choose between 4mm to 8mm couplers. All of them are included in the “Universal” package.
We have succesfully installed the Universal L bracket to the following focusers:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |

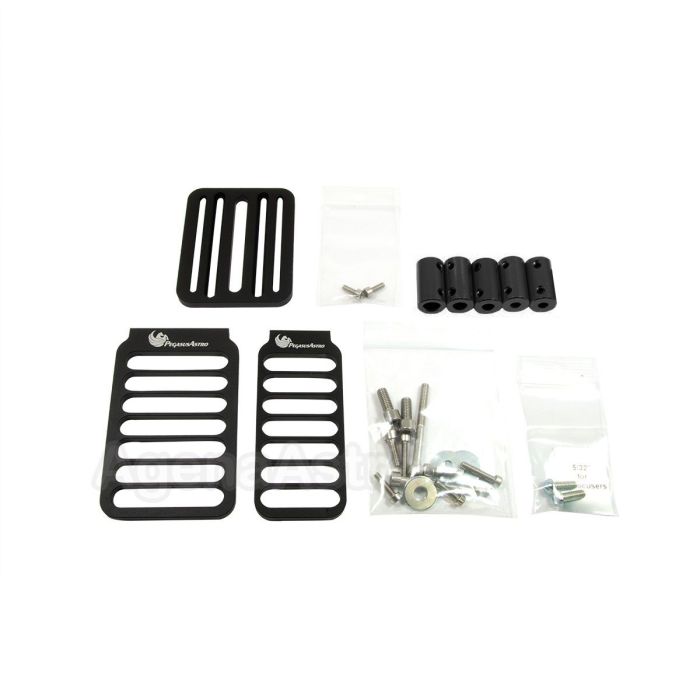

- Universal Black Anodised Aluminium L shaped bracket (wide and narrow)
- 5 solid, different bore size, motor couplers are provided so you can select the coupler that fits to your focuser’s shaft. Choose between 4mm to 8mm couplers.
- Different sizes (Pairs of M4x10, M4x30 M5x10, M6x10) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
Do you have an SCT version (Large or Small) of the Pegasus FocusCube (v1 or v2) or Motor Focus Kit (v1 or v2), but you now want to use the same motor on a different, non-SCT telescope? If yes, then this hardware kit will allow you to use the motor you already have, saving you the cost of buying an entirely new and complete Universal FocusCube or Motor Focus Kit.
- Hardware kit consisting of Universal L bracket, couplers and bolts. Motor not included.
- Same hardware that is included with Pegasus Astro's FocusCube Motor (v1/v2) or Motor Focus Kit (v1/v2) (Universal versions).
Universal L Bracket Hardware Kit # PEG-UNIV-KIT
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
Five solid different bore size motor couplers are provided so you can select the coupler that fits to your focuser’s shaft. Choose between 4mm to 8mm couplers. All of them are included in the “Universal” package.
We have succesfully installed the Universal L bracket to the following focusers:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- Universal Black Anodised Aluminium L shaped bracket (wide and narrow)
- 5 solid, different bore size, motor couplers are provided so you can select the coupler that fits to your focuser’s shaft. Choose between 4mm to 8mm couplers.
- Different sizes (Pairs of M4x10, M4x30 M5x10, M6x10) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
