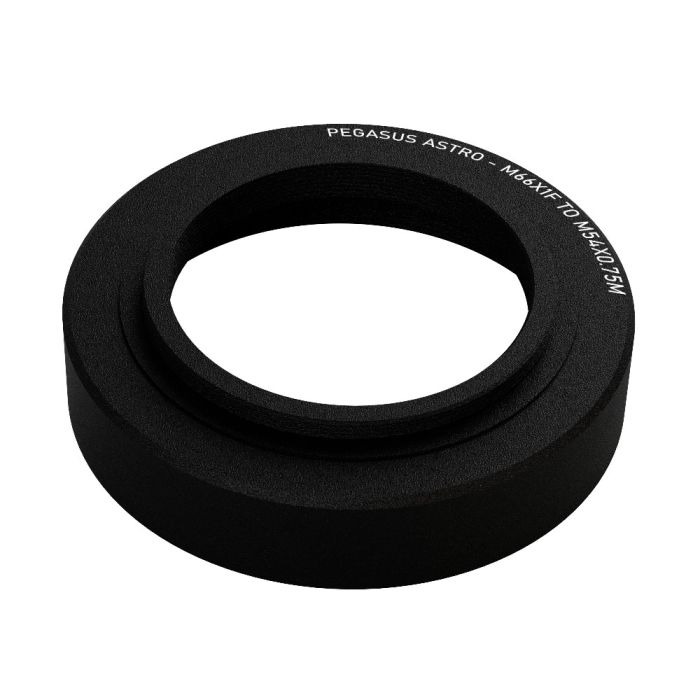

Pegasus Astro M66x1 Female to M54x0.75 Male Thread Adapter for SW Esprit 100 Flattener
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Description/Uses:
- Connects the SW Esprit 100 Flattener to female threaded M54x0.75 accessories. For example: SW Esprit 100 + M66F–M54M Adapter + Indigo OAG + Indigo Filter Wheel + QHY268M = 63 mm of backfocus.
- The telescope side has M66x1 female threads, while the other has M54x0.75 male
Features:
- Constructed of matte black anodized aluminum
- Preserves proper backfocus for imaging when connected to M54 accessories
- Precision threading ensures secure connections with compatible products
Specifications:
- Total length = 19 mm (0.75 in)
- Length of M54x0.75 male thread (including unthreaded undercut) = 3 mm (0.12 in)
- Length of M66x1 female thread = 6.5 mm (0.26 in)
- Optical length = 16 mm (0.63 in)
- Clear aperture = 47.2 mm (1.86 in)
- Maximum outside diameter = 75 mm (2.95 in)
- Weight = 2.1 oz (60 g)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Description/Uses:
- Connects the SW Esprit 100 Flattener to female threaded M54x0.75 accessories. For example: SW Esprit 100 + M66F–M54M Adapter + Indigo OAG + Indigo Filter Wheel + QHY268M = 63 mm of backfocus.
- The telescope side has M66x1 female threads, while the other has M54x0.75 male
Features:
- Constructed of matte black anodized aluminum
- Preserves proper backfocus for imaging when connected to M54 accessories
- Precision threading ensures secure connections with compatible products
Specifications:
- Total length = 19 mm (0.75 in)
- Length of M54x0.75 male thread (including unthreaded undercut) = 3 mm (0.12 in)
- Length of M66x1 female thread = 6.5 mm (0.26 in)
- Optical length = 16 mm (0.63 in)
- Clear aperture = 47.2 mm (1.86 in)
- Maximum outside diameter = 75 mm (2.95 in)
- Weight = 2.1 oz (60 g)
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Pegasus Astro M66x1 Female to M54x0.75 Male Thread Adapter for SW Esprit 100 Flattener # PEG-ADAPT-M66F-M54M
