Pegasus Astro Motor Focus Kit - With Universal L-Bracket (Requires Controller)
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus accurate and fast your telescope using our powerful Motor Focus Kit. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.

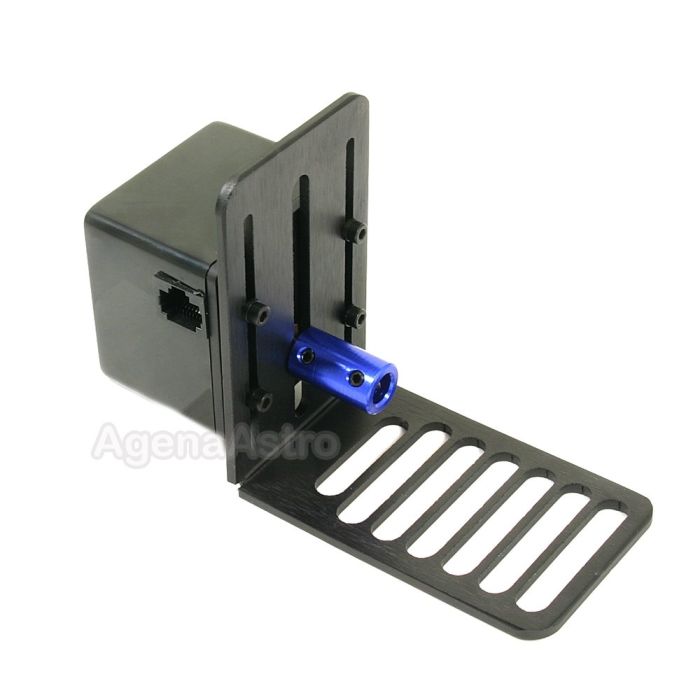

An L-shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers. In fact we have successfully installed it on:
- Orion Optics UK default focuser
- GSO (RC focuser)
- Takahashi (FSQ106)
- Moonlite (2", 2.5")
- Baader (Steel track)
- Synta Focuser Refractors
- Altair Astro (2", 2.5", 3")
- Starlight Focusers (2", 2.5", 3")
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Universal Black Anodised Aluminium L shaped bracket for Motor
- Motor Coupler (5mm to 10mm) with 3 grub-screws
- Different sizes of bolts and spacers
Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 250g
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
