Pegasus Astro Motor Focus Kit v2 - With Universal L-Bracket (Requires Controller)
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

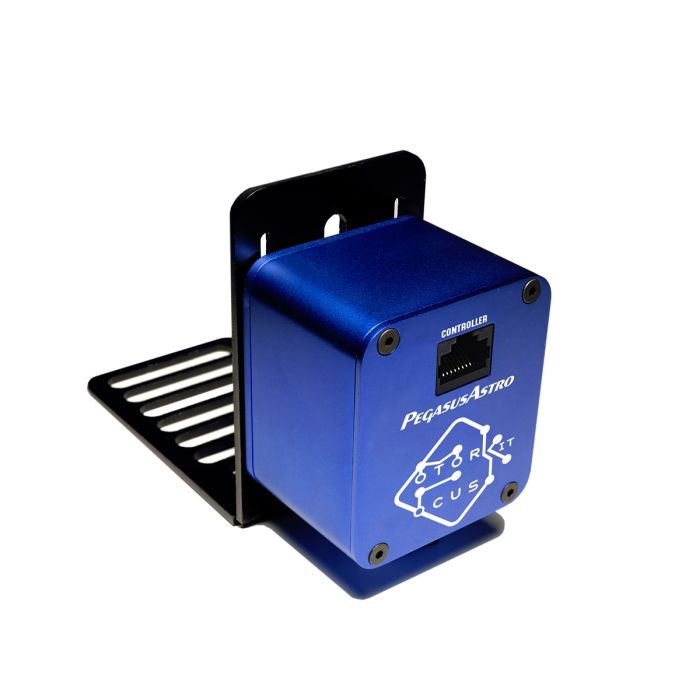

Focus your telescope quickly and accurately using Pegasus Astro's powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover, the motor’s gearbox has low backlash which can easily be tuned out using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.
1. Universal L-shaped bracket (black anodized)
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
In fact we have successfully installed it on:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120)
- Universal Black Anodised Aluminium L shaped bracket for Motor
- 6 x Solid Motor Couplers (3mm to 8mm)
- Different sizes (Pairs of M3x10, M4x10, M4x30 M5x10, M6x10, ) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
3. Technical Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625, with 5755 steps per circle of rotation
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 350g
