Pegasus Astro Pocket Powerbox Micro Power Supply
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Pocket Powerbox Micro (in short PPB Micro) is suitable for the “grab and go” astrophotographer. Device can provide up to 10Amps of power, a sufficient number of 12V Outputs, Two Dew Heater Channels, an adjustable voltage power output and an environmental sensor to monitor humidity / temperature (dew point).
The Pocket Powerbox Micro provides:
- 4 x 12V DC Power outlets for your equipment (ON/OFF via software)
- 10 Amps of total power
- A Voltage Adjustable Output (Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V)
- 2 Channels PWM Dew Heaters – RCA Outputs (Adjust levels via software)
- Humidity and Temperature Sensor (included)
- Auto Tune Dew Heaters (Auto-Dew)
- Reverse Polarity Protection / Overvoltage Protection
- USB / PC Controlled or Standalone Operation out of the box
- Lightweight and extremely compact enclosure
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.
4 x 12V DC Power outlets for your equipment
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch on/off for all ports (* together).
Built in Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment.
Built in Amp-meter
An Amp-meter placed after the DC input reports the total electric current. Moreover there are three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor detailed and overall power consumption of your equipment.
Adjustable Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3,5,8,9,12 Volts). Please note that we provide a wide range of battery couplers for Canon, Nikon, Sony, FUJI Cameras
More than 10A of total power
Controller has been designed to support up to 10 Amps of total current.
Two channel duty cycle PWM outputs
Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote controlled from your laptop using the supplied software.
Auto Adjustment of PWM (Dew Outputs)
Firmware can auto adjust the PWM Outputs by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox decide if it is time to switch on and precise tune your dew heaters.
Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox standalone software or dedicated ASCOM driver.
ASCOM 6 Fully supported
Pocket powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.3 supplied drivers to:
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON or OFF all 12V outputs. (ASCOM Switches)
INDI Fully supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.
Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don’t like it on you can switch it off via the software.
Power Cables are included in the package
Four power cable of DC 2.1mm to 2.1mm male (1m) are included in the package.
External Environmental Sensor
External one (1) meter temperature & relative humidity sensor is included in the package. Know exactly the environment conditions of your location. Temperature, humidity and dew point measurements are displayed in the software.
USB2 Connectivity
Connect the device to your laptop/PC and control Pocket Powerbox from the supplied software or ASCOM drivers
Reverse Polarity Protection
Pocket Powerbox has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
Watchdog
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
Upgradable Firmware
Device is firmware upgradable to support future features and bug fixes.
Compact Size and Lightweight
A high quality blue anodized aluminium, compact sized box encloses the controller board. Size is 66mm x 66mm x 24mm). Weight is 80 grams.
Specifications
- Supply Voltage 12V – 13.8V DC (Reverse Polarity Protected)
- Power Input Connector DC 2.1mm
- Connectivity USB2 – Type B USB Connector
- 4 x 12 Outputs
- Maximum Current 10 Amps in total.
- 2.1mm Center Positive
- Software: ON/OFF all ports
- 2 Channel x 12 PWM Outputs
- Maximum Current 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
- Software: Duty Cycle % / OFF
- 1x Sensor Input
- RJ12 Socket, Connectivity with Environmental Sensor
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Camera / DSLR Output:
- Max 3 Amps, 3,5,8,9,12 Volt. 2.1mm Center Positive
- Voltmeter Measures 5 – 15V
- Dimensions 66mm x 66mm x 24mm , Weight 90 grams
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Pocket Powerbox Micro Controller
- External Temperature / Humidity Sensor
- 4 x Power DC 2.1 to 2.1 male cable (1m)
- USB Cable Type B (1.8m)
Pocket Powerbox Micro (in short PPB Micro) is suitable for the “grab and go” astrophotographer. Device can provide up to 10Amps of power, a sufficient number of 12V Outputs, Two Dew Heater Channels, an adjustable voltage power output and an environmental sensor to monitor humidity / temperature (dew point).
The Pocket Powerbox Micro provides:
- 4 x 12V DC Power outlets for your equipment (ON/OFF via software)
- 10 Amps of total power
- A Voltage Adjustable Output (Can be switched ON/OFF – 3V, 5V, 8V, 9V, 12V)
- 2 Channels PWM Dew Heaters – RCA Outputs (Adjust levels via software)
- Humidity and Temperature Sensor (included)
- Auto Tune Dew Heaters (Auto-Dew)
- Reverse Polarity Protection / Overvoltage Protection
- USB / PC Controlled or Standalone Operation out of the box
- Lightweight and extremely compact enclosure
Please note: The "DC Cable to Cigarette Lighter Adapter # PAOA-PA-CIGLIGHT-ADAPTER25" which was previously included with this item is no longer included by Pegasus. This is available for separate purchase if required.
4 x 12V DC Power outlets for your equipment
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch on/off for all ports (* together).
Built in Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment.
Built in Amp-meter
An Amp-meter placed after the DC input reports the total electric current. Moreover there are three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor detailed and overall power consumption of your equipment.
Adjustable Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3,5,8,9,12 Volts). Please note that we provide a wide range of battery couplers for Canon, Nikon, Sony, FUJI Cameras
More than 10A of total power
Controller has been designed to support up to 10 Amps of total current.
Two channel duty cycle PWM outputs
Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote controlled from your laptop using the supplied software.
Auto Adjustment of PWM (Dew Outputs)
Firmware can auto adjust the PWM Outputs by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox decide if it is time to switch on and precise tune your dew heaters.
Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox standalone software or dedicated ASCOM driver.
ASCOM 6 Fully supported
Pocket powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.3 supplied drivers to:
- Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON or OFF all 12V outputs. (ASCOM Switches)
INDI Fully supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.
Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don’t like it on you can switch it off via the software.
Power Cables are included in the package
Four power cable of DC 2.1mm to 2.1mm male (1m) are included in the package.
External Environmental Sensor
External one (1) meter temperature & relative humidity sensor is included in the package. Know exactly the environment conditions of your location. Temperature, humidity and dew point measurements are displayed in the software.
USB2 Connectivity
Connect the device to your laptop/PC and control Pocket Powerbox from the supplied software or ASCOM drivers
Reverse Polarity Protection
Pocket Powerbox has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
Watchdog
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
Upgradable Firmware
Device is firmware upgradable to support future features and bug fixes.
Compact Size and Lightweight
A high quality blue anodized aluminium, compact sized box encloses the controller board. Size is 66mm x 66mm x 24mm). Weight is 80 grams.
Specifications
- Supply Voltage 12V – 13.8V DC (Reverse Polarity Protected)
- Power Input Connector DC 2.1mm
- Connectivity USB2 – Type B USB Connector
- 4 x 12 Outputs
- Maximum Current 10 Amps in total.
- 2.1mm Center Positive
- Software: ON/OFF all ports
- 2 Channel x 12 PWM Outputs
- Maximum Current 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)
- Software: Duty Cycle % / OFF
- 1x Sensor Input
- RJ12 Socket, Connectivity with Environmental Sensor
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Camera / DSLR Output:
- Max 3 Amps, 3,5,8,9,12 Volt. 2.1mm Center Positive
- Voltmeter Measures 5 – 15V
- Dimensions 66mm x 66mm x 24mm , Weight 90 grams
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Pocket Powerbox Micro Controller
- External Temperature / Humidity Sensor
- 4 x Power DC 2.1 to 2.1 male cable (1m)
- USB Cable Type B (1.8m)

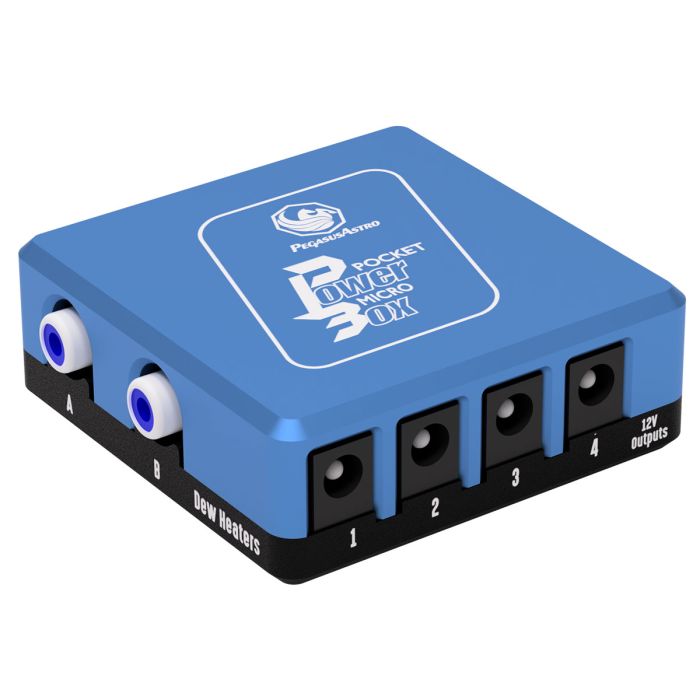

Pegasus Astro Pocket Powerbox Micro Power Supply # PEG-PPBMICRO
