- 4 x 12V DC Power outlets for your equipment. (A single channel to switch all four outputs ON/OFF via software)
- 10 Amps (120W) of total distributed current
- Embedded Powered USB3 Hub (2 x USB3 Ports & 2 x USB3 Ports Available (USB3 ports are backward compatible with USB2 devices)
- 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power.
- Built-in ambient temperature and humidity sensor.
- 2 Channels PWM Dew Heaters – 2.1mm Outputs (Adjust power levels via software). Pair of cable adapters from DC 2.1 -> RCA is included
- Auto Tune of Dew Heater Channels
- Power, current, and input voltage meter.
- Reverse Polarity Protection
- USB / PC Controlled or Standalone Operation out of the box
- Losmandy and Vixen Clamp
The Saddle Powerbox has close functionalities to the Pocket Powerbox Advance and can be directly placed on our NYX-101 mount or other mounts in the market.
4 x 12V DC Power outlets
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch on/off all 12V outputs (not individually).
This single channel can provide up to 10Amps of current to all ports. Current is shared among the 4 x 12V ports.
Built in Sensors
A precise voltmeter measures and displays in real-time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment.
A temperature and relative humidity sensor measures and report your current environment values.
2 x Dew Heater Outputs
Two dew heater outputs allow you to precisely control the output of your heaters. Auto-dew functionality can automatically control the intensity of the heaters by consulting the built-in temperature and humidity sensor. A Pair of cable adapters from DC 2.1 -> RCA is included in the package.
Built in Voltage and Amp-meter
An Amp-meter placed after the DC input reports the total electric current and voltage levels. This allows you to easily monitor your equipment’s detailed and overall power consumption.
More than 10A of total electric current
The powerbox has been designed to output up to 10 Amps of electric current. Please note that a usual backyard astrophotographic setup requires 5-7 Amps.
Embedded USB3 Hub – 2 x USB3 & 2 x USB2 Ports
USB High Power Output
USB Port 1 provides up to 3 Amps of current. You can connect any device that requires 5V. E.g a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.
A powered USB3 Hub at the back of the device provides:
- 2 x USB3 SuperSpeed Ports.
- 2 x USB2 High-Speed Ports.
The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.
USB Port Configuration under PPBADV Gen2
- USB Port1 supports USB2 & USB3 devices
- USB Port2 supports USB2 & USB3 devices
- USB Port3 supports USB2 devices
- USB Port4 supports USB2 devices
Optional Pucks for 3rd party mounts
The Powerbox Saddle can be directly placed onto the NYX-101 mount. For another type of mounts, an extra puck is required. Currently we support the following mounts:
- Puck (PEG-PUCK-AM5) can be used to attach the Powerbox Saddle onto the ZWO AM5 and AM5N mounts (use with the AM3 mount requires user-supplied shorter screws)
- Puck (PEG-PUCK-EQ6R) can be used to attach the Powerbox Saddle onto Skywatcher NEQ6 and EQ6-R mounts.
- Puck (PEG-PUCK-RST) can be used to attach the Powerbox Saddle onto RST 135 and RST 300 mounts.
Standalone Operation “out of the box”
Pocket Powerbox can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!
Two channel duty cycle PWM outputs
Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.
Auto Adjustment of PWM (Dew Outputs)
Controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.
More than 10A of total power
Controller has been designed to support up to 10 Amps of total current.
Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don’t like it on you can switch it off via the software.
Reverse Polarity Protection
Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
A hardware watchdog
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
Upgradable Firmware
Device is firmware upgradable to support future features and bug fixes.

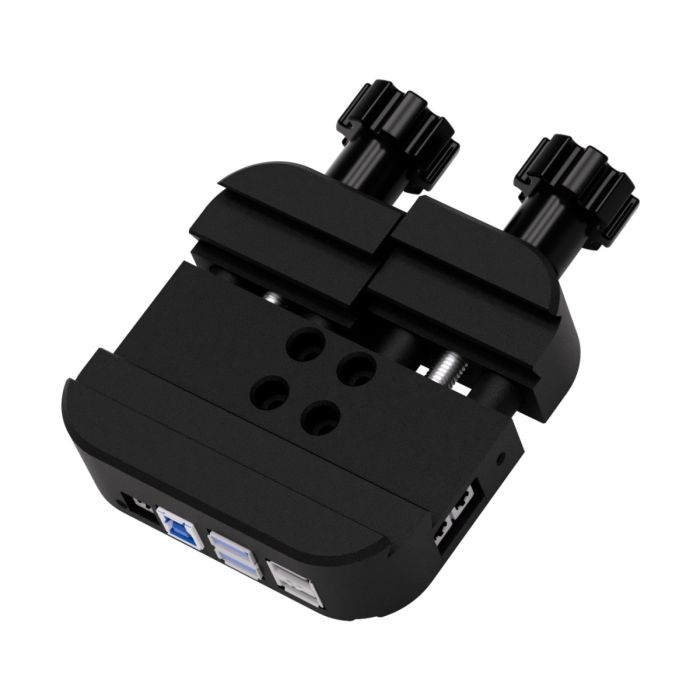

Losmandy and Vixen Style support
A high-quality robust CNC aluminium saddle houses the electronics of the Powerbox. The saddle accepts Vixen and Losmandy plates.
The are two independent knobs allowing you to lock your telescope onto the saddle.
ASCOM 6 fully supported
Pocket Powerbox Advance fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.5 supplied drivers to:
- Report environmental settings to supported software (e.g Sequence Generator Pro / MaximDL) (ASCOM Observing Conditions)
- Switch ON / OFF 12V outputs, Adjustable Output, Tune Dew Heaters. (ASCOM Switches)
INDI fully supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.
Unity Platform Support
Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.
A modern frontend allows the full control of all Pegasus Astro devices
Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.
As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.
Specifications:
- Dual Saddle: Supports Losmandy and Vixen plates
- Supply Voltage: 12V – 13.8V DC
- Power Input Connector: DC 2.1 mm
- Connectivity: USB3 – Type B USB Connector
- 4 x 12 Outputs:
- Maximum Current 10 Amps in total.
- 2.1mm Center Positive
- Software: ON/OFF all ports
- 2 Channel x 12 PWM Outputs
- Maximum Current 4A each)
- Software: Duty Cycle % / OFF
- 2.1 mm socket
- Built in temperature and humidity Sensor:
- 0-100% humidity readings with 2-5% accuracy
- -40 to 80°C temperature readings ±0.5°C accuracy
- Voltmeter Measures 5 – 15V
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1 x Saddle Powerbox
- 2 x DC 2.1 male to RCA Female Pigtails. (15cm)
- 4 x Power DC 2.1 to 2.1 male cables (2×0.5m and 2 x1.0m)
- 1 x USB3 Cable Type B (1.8m)
