Pegasus Astro Scops Motorized Off-Axis Guider
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

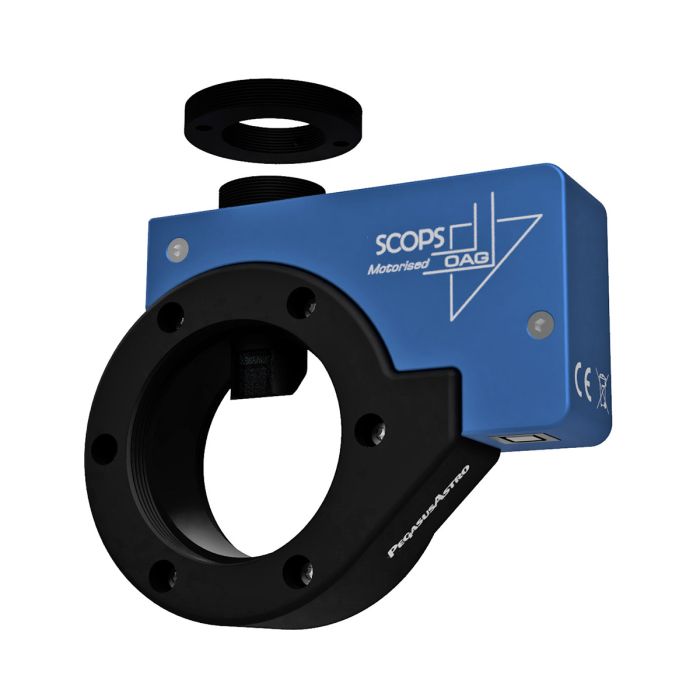

Pegasus Astro's Scops OAG is a motorised Off Axis Guider specialized for remote operation that allows you to adjust guide camera focus with great precision. Easy operation via ASCOM focus drivers or standalone software is going to make your life easier to guide your EQ mount.
One cable operation
Scops OAG does not require an external controller. Its body includes all electronics and only one USB cable is plugged and provides power and control to the OAG.
Stepper Motor ensures focus precision
A stepper motor ensures absolute position of the focus point.
Profile each filter that might have a different focus position and just click the filter in the supplied software to precisely set the OAG to the stored position.
Large mirror
A large 10×10 mm fully multicoated & anti-reflection mirror offers full illumination to the guiding camera. Stars are round and bright across all the OAG's field.
Adjustable prism height
The prism height can be adjusted to allow better illumination of the field of view of the guiding camera. If your imaging /main camera sensor is large the prism can be moved (with a set screw) upwards to disallow blockage of sensor’s optical path.
Robust design for heavy load of equipment
OAG thickness is 31.4mm capable to support heavy imaging equipment. OAG has a 54 mm of clear aperture. Accepts M54 threaded adapters on both sides.
Falcon Rotator Combination
Scops OAG has 6 screw holes that allows it to get combined with Pegasus' Falcon Rotator (without extra adapters)
Accepts M42 & C thread cameras
Scops OAG accepts M42 and all new C-threaded guiding cameras. Both of these adapters (M42 / C) are included in the box.
Specifications
- Clear aperture: 50mm (M54 adapters on both sides)
- Thickness: 31.4mm
- Focus travel: 8.5mm
- Weight: 420g
- Mirror dimensions: 10x10mm
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x Scops Motorised Off Axis Guider (OAG)
- 1x M54 Male to 2” Nosepiece
- 1x M54 Male to M48 Male Adapter
- 1x M42 Male to CS thread Guiding Adapter
- 6x M3x8 mm screws (alternatively to attach Scops OAG on the Falcon rotator)
- 1x USB2 Type B cable (1.8m)
