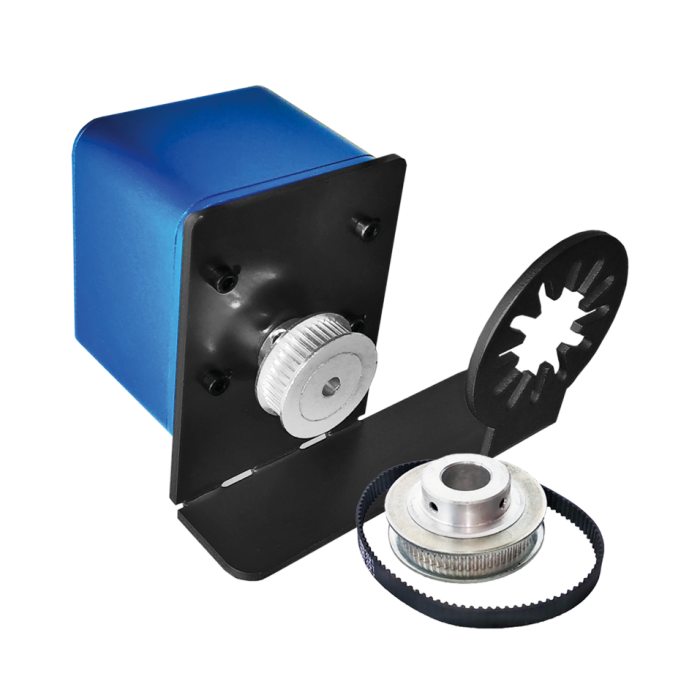

Pegasus Astro FocusCube 2 Focuser Motor - For Celestron 11" or 14" SCTs
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Focus fast, reliable and accurate your telescope by using the “ FocusCube 2″. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small period of time as temperature can affect focal length and modify the optimal focus position. Pegasus FocusCube has been developed to meet all of these requirements.
Designed in high quality with modern electronics, FocusCube can provide digital precise focus control from a PC. Device includes a stepper motor for absolute position focusing. Electronics and stepper motor are enclosed in a compact sized box. Do not be fooled by its size! This device can easily lift more than 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!
This stepper motor is a high resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale! You only need this device to focus ! Attach the FocusCube to your refractor / reflector / SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!
IMPORTANT NOTE FocusCube is a standalone device and includes controller functionality. No physical hand controller is included or required. DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market. DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output The RJ45 port at the back is only for the hand controller or the included temperature sensor.
High torque & resolution stepper motor
Embedded unipolar stepper motor has a powerful and very low backlash gearbox. Motor Step Angle is 7.5 deg but the 1:120 reduction gearbox turns the reduction rate to 0.06255 deg / step. As firmware implements half step drive, the motor can execute twice the steps per cycle. This means 11510 steps per cycle! Bottom line: You can focus in microns, easily and with great accuracy.
Motor can lift up to 6Kg of equipment (212 ounces) of imaging equipment when the telescope points to the zenith!
SCT Bracket: SCT Bracket fits to Celestron C Series, Celestron Edge and Celestron RASA telescopes.
FocusCube SCT Bracket
Temperature Probe
An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is always included)
Expansion Port / Manual Focus (optional accessory)
FocusCube includes an expansion RJ45 port on the left side. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality.
Please Notice: Hand Controller is an optional accessoryASCOM supported
The controller is fully compatible with latest ASCOM 6.4
Autofocus via SGProINDI (Open Astronomy Instrumentation) supported
Pegasus Focuscube is fully compatible with INDI. Driver is included in stable libindi. Official Indi Driver : http://indilib.org/devices/focusers/pegasus-dmfc.html
Standalone program supported
The controller can be operated by the standalone software. (Only available for Windows)
All cables are included
- A 1.8m USB Type B cable is included in the package.
- A 1.5m Cigarette lighter adapter power cable is included in the package
Six solid motor couplers are included
Six solid, different bore size, motor couplers are provided so you can select the coupler that fits to your focuser's shaft. Choose between 3mm to 8mm couplers. All of them are included in the package.
All cables are included
- A 1.8m USB Type B cable is included in the package.
- A Cigarette lighter cable is included in the package
Firmware upgrade support
Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.
2 Years warranty
For the FocusCube device and the temperature sensor.
Compact size
56 x 63 x 39 mm / Weight 300g
Specifications
- Supply Voltage: 12V - 13.8V DC
- Motor Compatibility: Stepper Motor is inside the enclosure
- Motor Output: None
- (Stepper Motor inside in the enclosure)
- USB Connectivity: USB 2.0 Type B plug
- Thermal Sensor Resolution: 9-bit Celsius temperature measurements
- Power Input Connector: 2.1mm Centre Positive Socket
- Motor Specs: High resolution geared stepper motor
- (Step Angle (Deg) 7.5 / 120
- (Gearbox reduction rate = 0.06255 Deg).
- 5755 steps per circle of rotation.
- * Firmware implements half step drive so one motor cycle is 5755 x 2 = 11510 steps
- Very low backlash
- Dimensions: 56 mm x 63 mm x 39 mm
- Weight: 300g
- Operating Temperature: -40 ºC to +80 ºC
