Pegasus Astro Motor Focus Kit v2 - For Celestron 11" or 14" SCTs
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus accurate and fast your Celestron SCT telescope using our powerful motor focus kit SCT. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. An RJ45 socket pinout can be easily converted to a compatible pinout with Moonlite and Robofocus controllers.
Pulley and Belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit to all Celestron SCTs
A special shaped blue anodized aluminum bracket, hard to bend, can be attached to all Celestron SCT telescopes. It has been successfully installed it on:
- Celestron EdgeHD 8, 9.25 , 11, 14
- Celestron SCT C6, C8, C925, C11, C14
- Celestron RASA

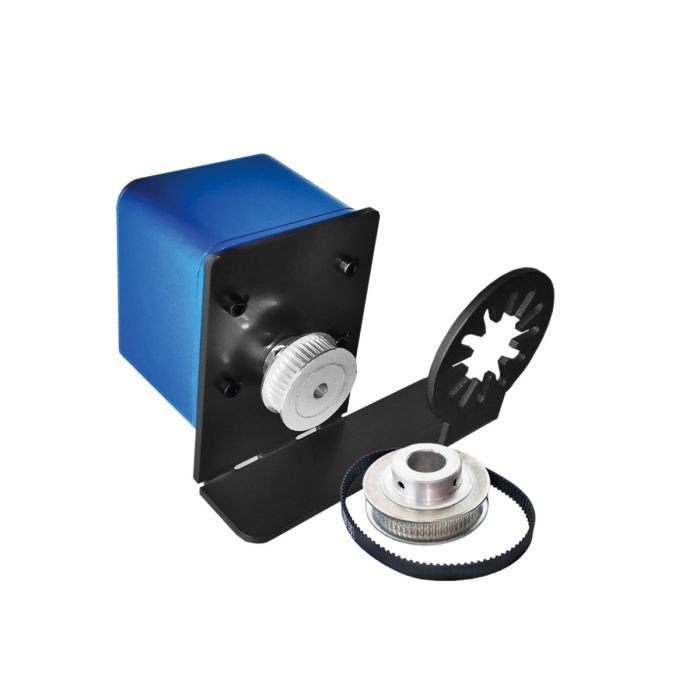

What the Motor Focus Kit SCT Package (Large) Includes:
- High resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Blue Aluminium Anodised Bracket for Celestron SCT Telescopes
- 20cm 2GT Timing Belt
- 13 mm Pulley 2GT (6”,8”,9.25”) or 22mm Pulley 2GT (11” ,14” Celestron)
- Bolts
Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, SCT Adapter & Motor Pulley / Belt weight in total 300g
