Pegasus Astro SCT Motor Focus Kit v2 - For Celestron 14" SCTs (Requires Controller)
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Focus your telescope quickly and accurately using Pegasus Astro's powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover, the motor’s gearbox has low backlash which can easily be tuned out using backlash compensation in imaging software.
Pulley and belt design allows the motor to stay away from your filter wheel (and not collide with it) when you use a focal reducer. Its sophisticated bracket design can fit all Celestron SCTs as detailed below.
1. SCT L-shaped bracket (black anodized)
An L-shaped, black anodised, hard to bend aluminium bracket can be attached to most Celestron SCT scopes. In fact. Pegasus' customers have successfully installed it on:
- Celestron EdgeHD 8, 9.25, 11, 14 (13mm bore)
- Celestron SCT C6, C8, C925, C11, C14 (22mm bore)
- Celestron RASA 8 (13mm bore)
- Celestron RASA 14” (22mm bore)

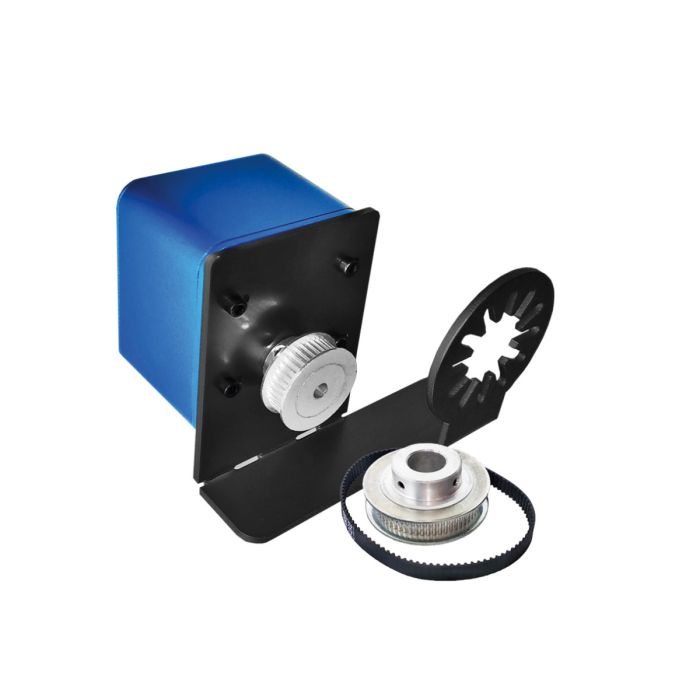

Please note that the current version of this item features a black mounting bracket and blue motor box as shown in the first photo above. The colors are not reversed as shown in several other photos above.
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
- Black Aluminium Anodised Bracket for Celestron SCT Telescopes
- Timing Belt
- 13mm or 22mm pulley and scope-compatible bolts (see details below)
3. Three SCT versions
- Celestron Classic / Edge / RASA 6", 8" and 9.25" telescopes (sold separately)
- With 13mm metal pulley bore diameter and M3x15mm bolts
- Celestron Classic / Edge 11" telescopes (sold separately)
- With 22mm metal pulley bore diameter and M3x30mm bolts
- Not compatible with RASA 11" since that scope has a Feathertouch focuser knob, unless you have Celestron's "Focuser Retrofit Kit for RASA 11" # 94255"
- Celestron Classic / Edge / RASA 14" telescopes (this item)
- With 22mm metal pulley bore diameter and M4x40mm bolts
4. Technical Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, SCT Adapter & Motor Pulley / Belt weight in total 300g
