Pegasus Astro SmartEye 2" Smart Eyepiece & Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Digital eyepiece or standalone cooled camera
- Sony IMX533 sensor, 3008×3008 resolution, 3.76μm pixels
- Real-time stacking, auto color calibration, and motion sensors
- 90° display, +1D to -5D diopter, 12mm eye relief
- MicroSD slot for direct FITS file saving
- SkySafari control for capture, settings, and live preview
Pegasus SmartEye: First-of-its-Kind Smart Eyepiece
The Pegasus Astro SmartEye is a smart eyepiece that combines the best parts of both visual astronomy and astrophotography in one easy-to-use package. It uses the traditional form-factor of a 2-inch eyepiece, but inside is a cutting edge CMOS sensor, a premium OLED display, powerful live-stacking software, and a cooling fan to rival any traditional astrophotography setup. The SmartEye uses all of this technology to automatically live-stack images in real-time, revealing vibrant colors and details in deep-sky objects that regular eyepieces simply cannot show. What sets it apart from other astronomy gear is its simplicity and immediate results, with a design that is truly plug-and-play.
There’s no need to master complex imaging software or spend hours processing photos! With SmartEye you can observe effectively from light-polluted areas, transform small telescopes into powerful instruments, and share spectacular views with others instantly through either in-person or through the remote SkySafari app integration.
What Sets the SmartEye Apart
Pegasus Astro is known for innovation, and the SmartEye takes it to a whole new level. This digital eyepiece is an all-in-one astronomy tool that combines a Sony IMX533 color CMOS sensor with a 2” eyepiece barrel. All of this is housed in a durable IPX65-rated waterproof aluminum body.
Controlled by the SkySafari app or your favorite astronomy software, the SmartEye delivers unmatched versatility never seen before in a standalone eyepiece or camera. It lets you live-stack images, identify celestial objects in real-time, and stream the eyepiece’s view directly to your phone, tablet, PC, or TV.
Whether you’re observing solo or sharing the night sky with others, the SmartEye makes it easy for everyone to see and enjoy the universe—no experience needed!
The Night Sky is Accessible to All with The SmartEye
The SmartEye makes astronomy accessible to everyone. No matter your experience level, technical ability, or observing or imaging style. Its innovative design removes many of the obstacles people typically face when dealing with traditional astronomy gear.
With powerful features packed into a simple interface, the SmartEye is perfect for amateur astronomy for hobbyists, students, first-time telescope owners, and anyone else who is tired of battling complex gear instead of enjoying the stars.
Pegasus Astro SmartEye Overview Video
In this video, Agena Astro affiliate Luca Bartek (@the_space_koala) covers the key features and some of the outstanding results she’s achieved with the Pegasus Astro SmartEye:
Pegasus Astro SmartEye Highlights
Thermoelectric Cooling
Sony’s IMX533 CMOS sensor is already known for its low noise performance, but the SmartEye takes it even further with an active TEC cooling system that lowers the sensor temperature by up to 54°F (30°C) below ambient, greatly minimizing thermal noise during long exposures.
On-board Storage with FITS
The SmartEye shines in live-stacking mode, delivering real-time results right on the display.
But it also supports traditional imaging workflows, saving each exposure as a high-quality, lossless FITS file. These astro-friendly files include all your imaging metadata, making them perfect for post-processing.
A built-in MicroSD slot lets you easily store and transfer your data to a computer whenever you're ready to edit.
ASCOM Alpaca Support
The SmartEye works with all your favorite astrophotography software using the ASCOM Alpaca Camera integration protocol.
While its strength lies in its dual-role design, you can also use it as a standalone cooled astronomy camera. Just connect it to your imaging computer, and with ASCOM, it functions like any other astronomy camera with an IMX533 color sensor.

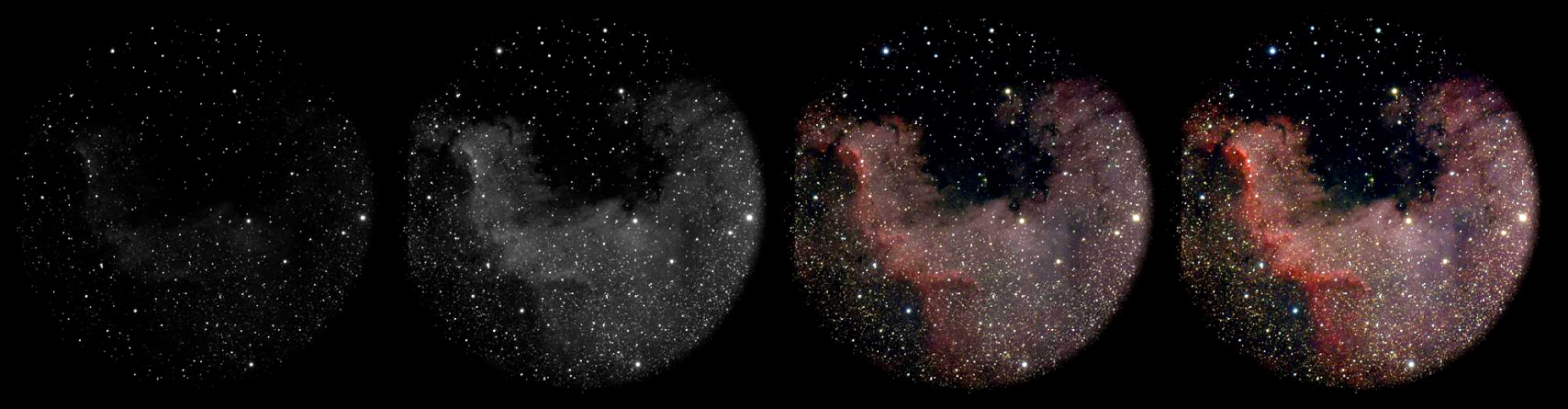

Live-Stacking As You’ve Never Seen it Before
The SmartEye features automatic live stacking, which enhances the image every 10 seconds. Unlike standard astronomy cameras that rely on a separate computer, the SmartEye includes a built-in accelerometer and gyroscope.
These two sensors monitor for vibrations and apply corrections to exclude poor-quality images from the ongoing stack. This means only the best data is used, which keeps your stars sharp and your targets well-defined, even with an occasional bump on the tripod or a stray gust of wind.
Thanks to the low noise levels of the Sony IMX533 sensor, the powerful TEC cooler, and the integrated color calibration, the SmartEye can produce truly breathtaking views.

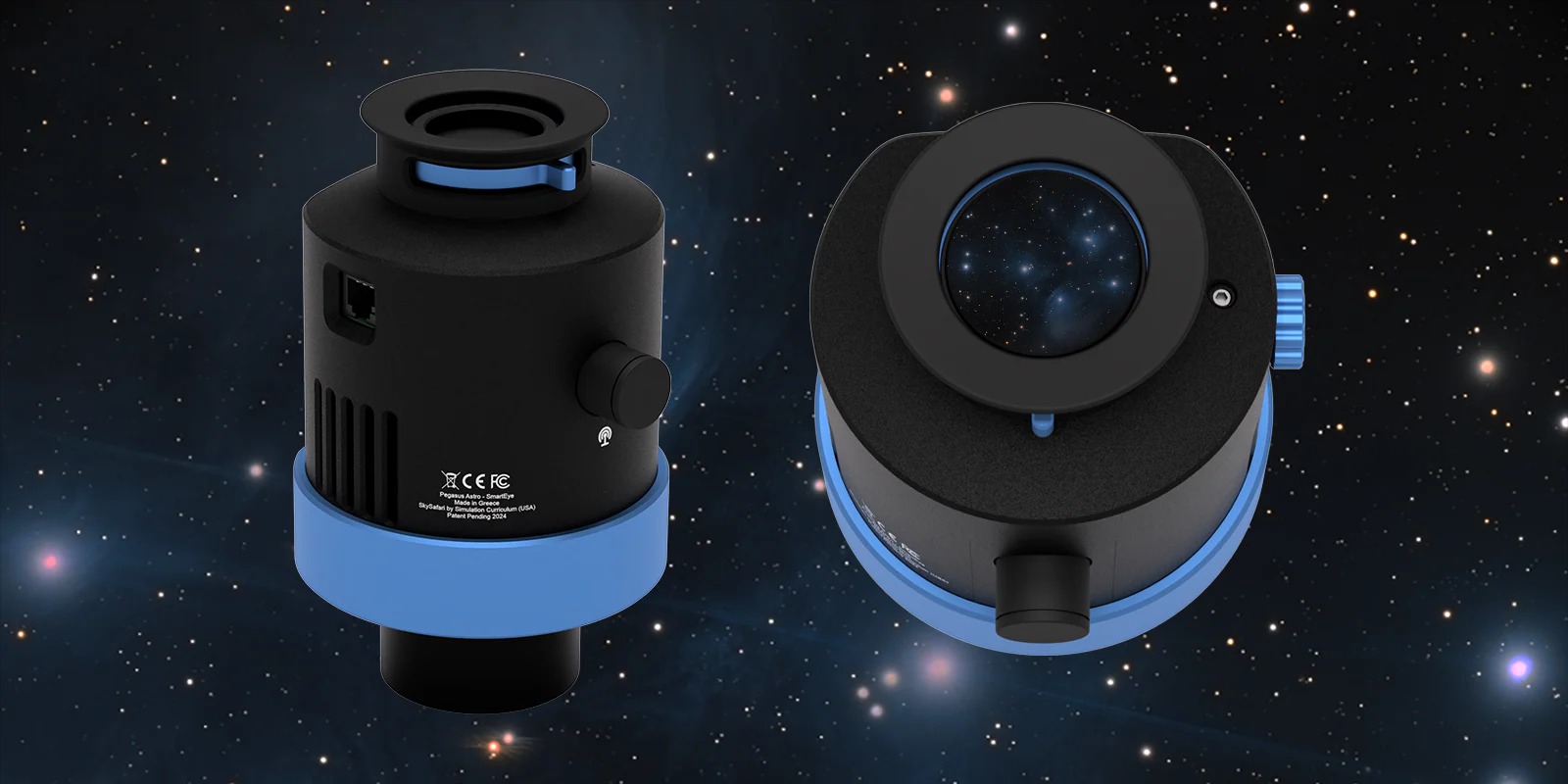

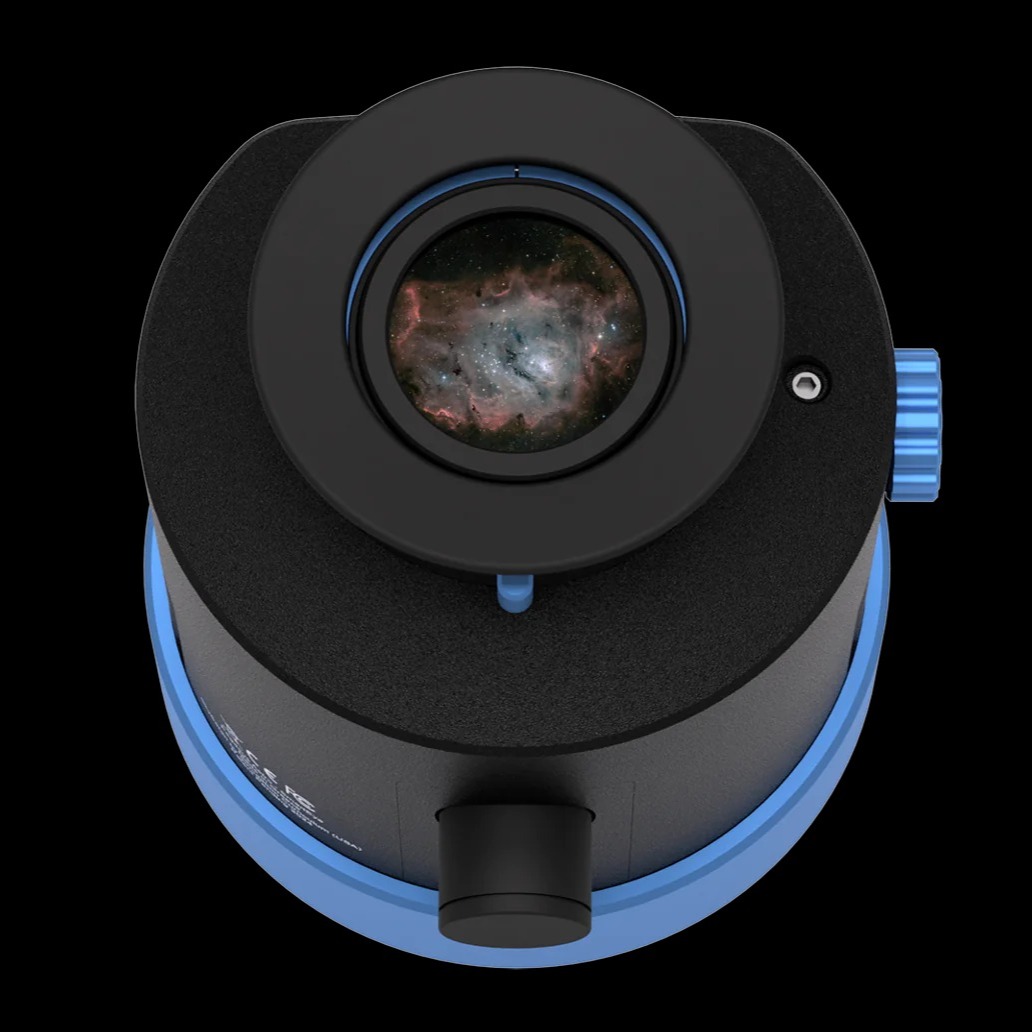

Simple to Use. Stunning UHD Visuals
Built for durability and performance, the Pegasus Astro SmartEye features an all-metal construction with anodized finish and an IPX65 waterproof rating. At its core is a 2560x2560 Ultra High Definition OLEDoS display with 3500ppi resolution delivering stunning and immersive views.
A streamlined one-cable connection handles both the power supply and computer connections. You can also control the SmartEye entirely from your mobile device thanks to its built-in Bluetooth and 2.4GHz WiFi antenna.
The SmartEye’s automatic image processing software puts all of this technology to good use. Ensuring stunning results with no manual image post-processing adjustments.
Such a powerful combination of durable materials, ease-of-use, and outstanding quality gives the SmartEye a professional feel that is sure to impress astronomers of all experience levels.

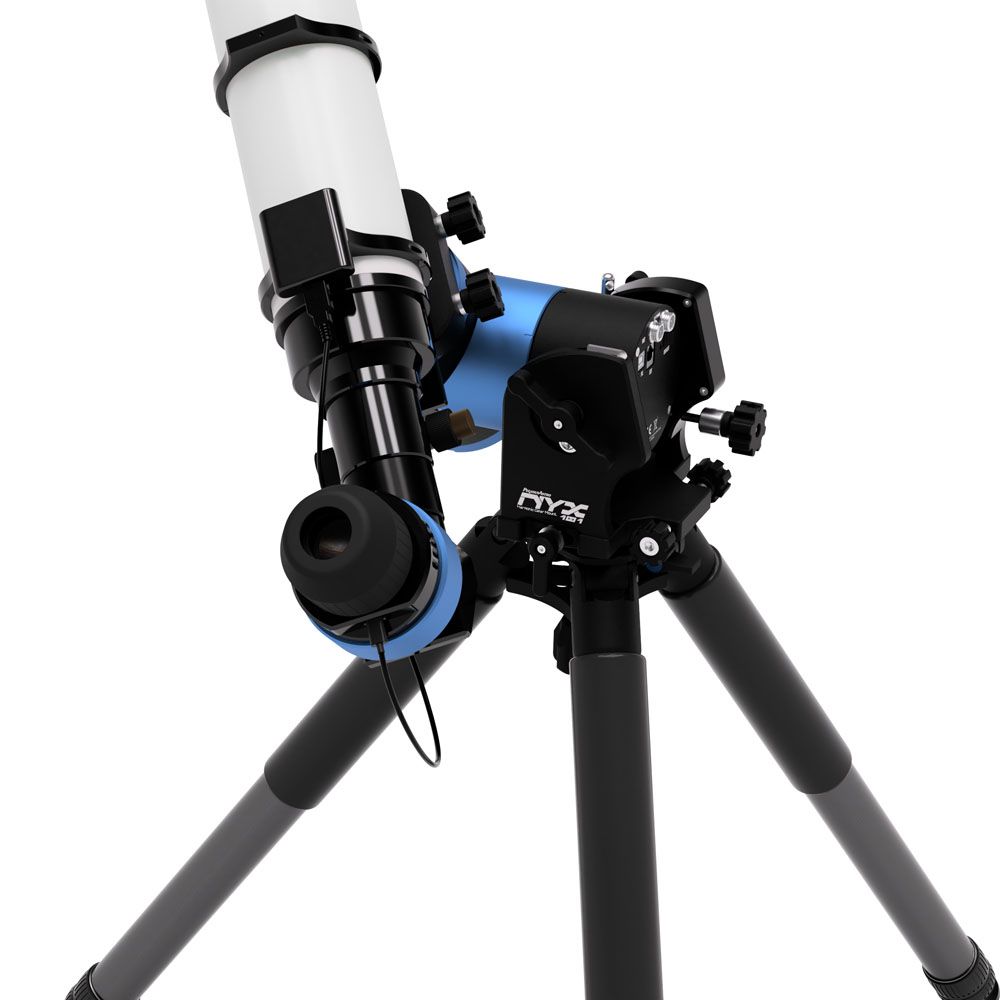

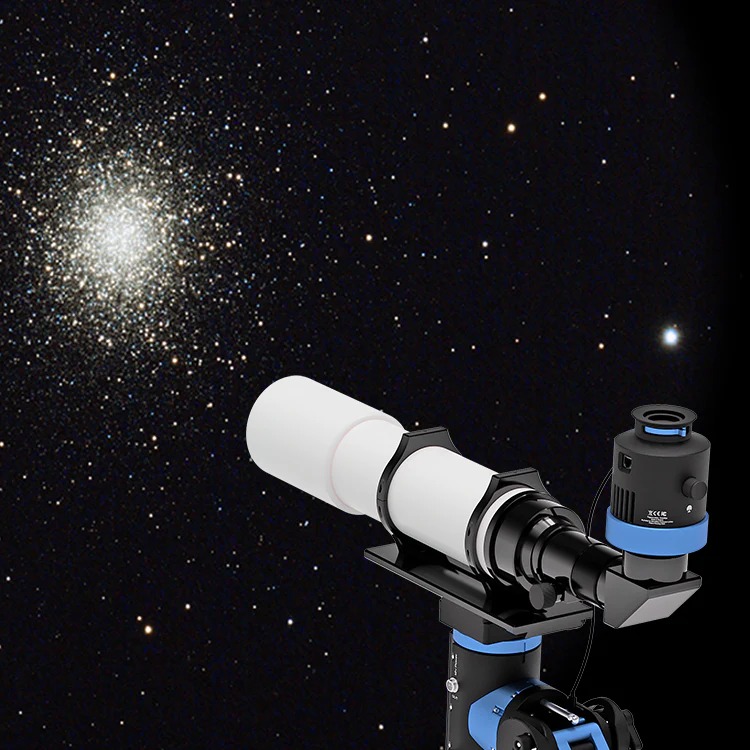

Transform Your Small Telescope
One of the biggest benefits of live stacking is the ability to see big details from small apertures. Where aperture used to be the sole determining factor of an observer's light-gathering ability, now you have access to time.
More time for photons to hit the SmartEye’s sensor means more details in the eyepiece! You’ll see vibrant details in distant galaxies and nebulae that were previously inaccessible with smaller telescopes. Or even with larger ones!
This redefines the boundaries of visual astronomy, enabling everyone to explore the cosmos with unparalleled clarity and ignite their passion for astronomy.
Defy Light Pollution & Observe from Anywhere
Even in the darkest of skies, human eyes will always struggle to see as much detail as a camera sensor. This is especially true in high-light pollution areas. But with the SmartEye’s sensitive CMOS sensor and the ability to live-stack, you can now use any narrowband, multi-band, or even broadband light pollution filter.
With the SmartEye’s onboard color calibration and image analysis software, these filters will still produce beautiful views. You can also choose to save the files for processing at a later time - you may end up with some pretty fantastic data!

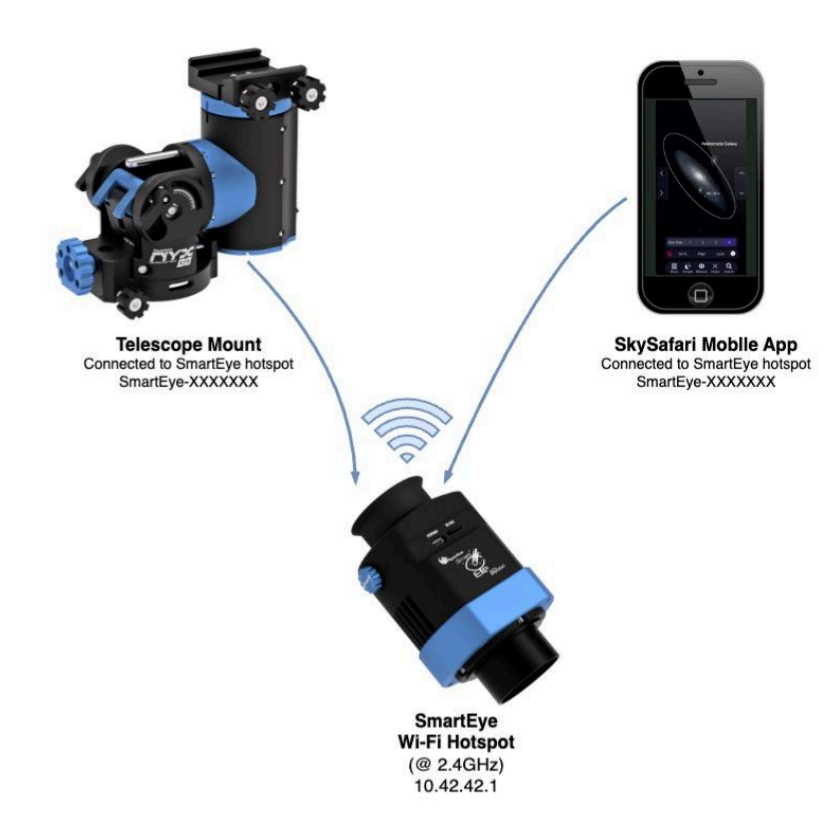

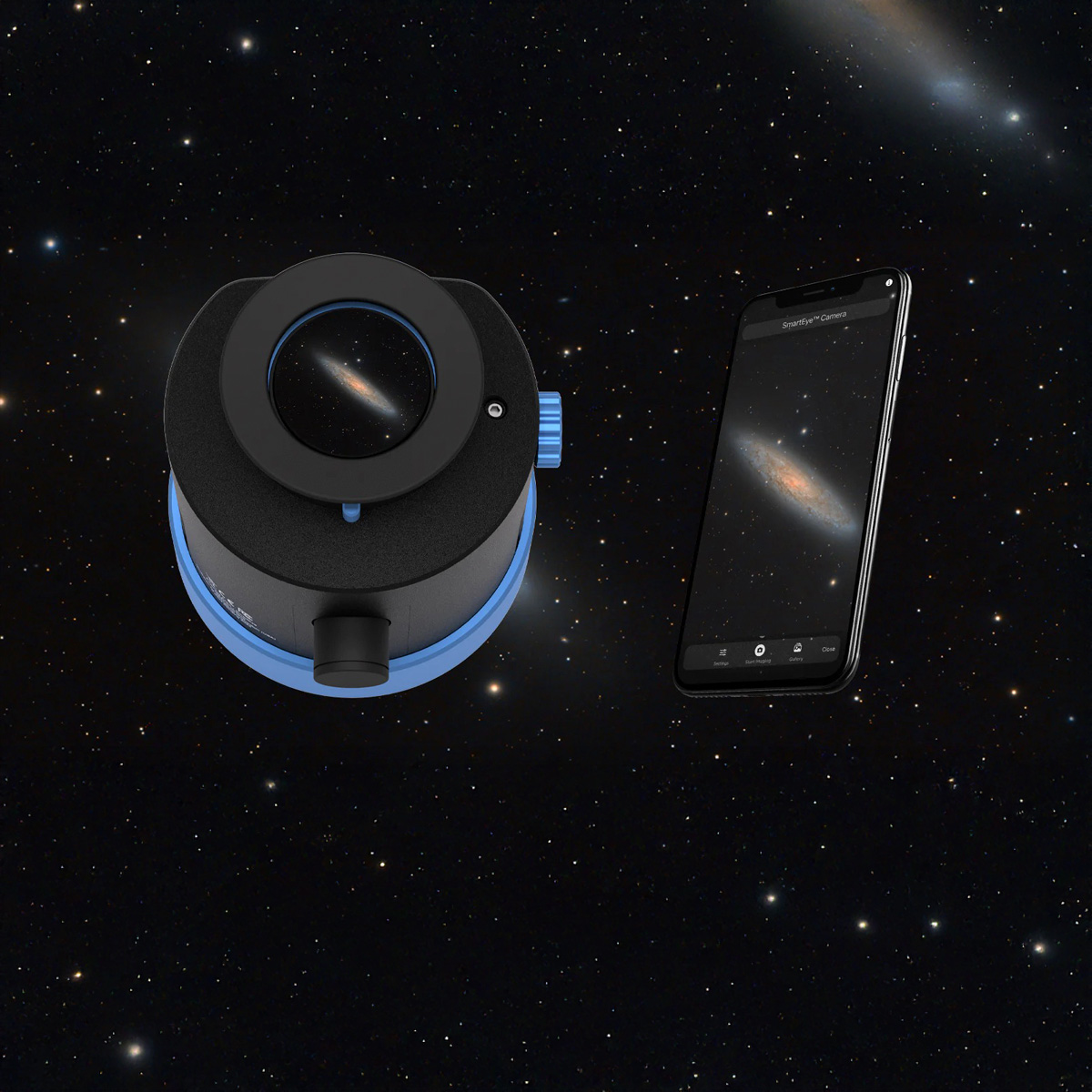

Powered by the SkySafari app
The SmartEye integrates directly with the award-winning SkySafari app, providing extended functionality and advanced configuration options. The app, which is available on iOS and Android, is renowned for its usability, detailed sky maps, and astronomical data.
This also enables you to control your telescope, log observations, and share images. The SmartEye combines its powerful hardware with SkySafari's software to create a complete astronomical navigation and control solution.
Identification & Sharing
The SmartEye takes the guesswork out of observing, allowing you to simply enjoy the night sky! The information found in the SkySafari app powers real-time identification of targets, making it easy to know what you’re looking at. Once an image is analyzed by the app, it syncs the location to your mount. It will also display the object’s name and details on the app or the SmartEye display.
For anyone who falls in love with the images your SmartEye is displaying, its image-sharing options enable you to effortlessly send your astronomical discoveries to guests, friends, family, and even social media!
No matter how you use it, the Pegasus Astro SmartEye is sure to make astronomy more fun.
Astronomy Outreach & Education with the SmartEye
The SmartEye is a groundbreaking solution for astronomy outreach and educational programs. It enhances any telescope's observing power by combining a traditional eyepiece with digital imaging technology.
Gone are the days of minimally inspiring gray smudges from your scope. Faint celestial objects are now accessible with modest optical equipment, and viewers can experience colors, details, and resolutions never before possible through an eyepiece.
With the SkySafari app providing all the information you need, educators and outreach coordinators can focus their energy where it matters.
Specifications
- Eyepiece Barrel: 2-Inch, Compatible With Standard 2-Inch Focusers and Filters
- Sensor: Sony IMX533 Color Complementary Metal-Oxide Semiconductor (CMOS), Ultra High Definition Display
- Field of View: Wide 90° FOV, 0.47 in (12mm) Eye Relief
- Cooling: High-Quality 2-Stage Thermoelectric Cooling (TEC) Unit
- Diopter Range: +1 Diopter to -5 Diopters
- WiFi Support: Dual-Band (2.4 GHz and 5 GHz, IEEE 802.11 b/g/n/ac)
- Bluetooth: Version 5 With Bluetooth Low Energy (BLE) Support
- Storage: Secure Digital (SD) Card Reader
- Power Requirements: 5 Volts / 3 Amps (USB Type-C)
- Backfocus Distance: 0.49 in (12.5mm)
- Weight: 28 oz (795g)
- Water Resistance: Ingress Protection (IPX) Rated
- Operating Temperature: -4°F to 122°F (-20°C to +50°C)
- Warranty: 2-Year
- Compatibility: Both iOS (Apple) and Android Devices
- Dimensions: 4.89 in x 3.70 in (124.3mm x 94mm)
Frequently Asked Questions
What types of telescope work with SmartEye?
SmartEye is compatible with all telescopes that are able to come to focus with a regular eyepiece. It is compatible with 2" focusers out of the box, but the 2" barrel on the SmartEye is removable, enabling use with an optional 1.25" barrel. Commercial 1.25" to 2" telescope eyepiece adapters are also available. For the best results it is also recommended to use telescopes that have a focal ratio of f/7 or faster. For longer focal length telescopes like Schmidt-Cassegrains (SCTs), focal reducers can help achieve this recommended ratio.
Do I need a computer to use SmartEye?
No. SmartEye is a standalone device with an integrated display, computer, and imaging sensor. Think of it as a plug-and-play solution.
Is a tracking telescope mount required for SmartEye operation?
Yes, a tracking mount is required for using the SmartEye for deep sky objects. The SmartEye has software that can automatically de-rotate images when used with Alt-Az mounts, but EQ mounts will give best results. The only time when tracking would not be essential is while observing brighter celestial objects like the Moon.
Can you use filters with SmartEye?
Yes. SmartEye features a 2” threaded barrel that supports 2” nebula filters, allowing users to tailor their observations to specific astronomical targets with ease.
What is the back focus distance for SmartEye?
The optical back focus distance of SmartEye is 12.5 mm, which includes the 12.0 mm mechanical distance plus an additional 0.5 mm introduced by the chamber glass. The device's nosepiece is attached using an M54 thread.
What are the power requirements for the SmartEye? And is there a power supply included from the factory?
All SmartEye packages include a premium USB-C to USB-C power cable (1.0m) and a 12V to USB-C power adapter. Any battery or power bank with a USB-C adapter will work, provided it has an output rating of at least 30W.
Pegasus Astro states that this 30W specification is crucial for maintaining steady 3A delivery while also accommodating brief power spikes (particularly during sensor cooling operations). Insufficient power sources or cables may result in unstable operation, system restarts, or complete failure to power on.
Does SmartEye display a circular field of view like traditional eyepieces, even with its square sensor?
Yes, SmartEye presents a circular view that mimics authentic eyepiece observation. While exported images appear rectangular due to the square Sony IMX533 imaging sensor format, the visual experience remains circular.
What are the specs of the display? Does the resolution eliminate pixelation concerns?
SmartEye employs OLEDoS (OLED on Silicon) technology featuring high pixel density. Combined with its 90° field of view and 2560×2560 resolution, SmartEye produces crisp, clear imagery that eliminates visible pixelation, ensuring an exceptional visual experience.
Can I modify the screen brightness on SmartEye?
Yes, screen brightness is fully adjustable to user preferences. Maximum brightness reaches 1800 nits with an impressive 500,000:1 contrast ratio.
What image storage capabilities does SmartEye offer?
SmartEye provides a number of storage options, including on-board storage using SmartEye's internal memory as well as an integrated Micro-SD card reader. You can also transmit images wirelessly through SkySafari for a digital gallery display, enabling easy browsing and sharing.
What exposure duration range does SmartEye support?
In standard "SmartEye" mode, exposure times range from 5 to 30 seconds. When operating in "Astro Camera" mode with third-party astrophotography software, SmartEye supports unlimited exposure durations as a standard camera device.
Can SmartEye work with autoguiding?
Yes. SmartEye features an integrated ST-4 Auto Guiding port. An ST-4 port is a standard connection on many telescope mounts, used to link a camera for autoguiding. The guide camera tracks a star’s position and sends real-time corrections to the mount, ensuring the telescope stays on target and preventing drift or misalignment during long-exposure astrophotography.
Currently, it can act as a guide camera via ASCOM ALPACA and third-party imaging software like N.I.N.A. and SharpCap. A future update will enable SmartEye to send small corrections to your telescope mount during live stacking, ensuring precise tracking and keeping objects centered during observations.
Why does SmartEye have a display? Can't you just view the image on your phone?
SmartEye tries to maintain the personal connection between an observer and their telescope. The inclusion of a display enhances this connection and the feeling of looking through an eyepiece.
Looking through the display offers a unique experience that must be seen to be truly appreciated. Thanks to its high contrast ratio, resolution, pixel density, and dynamic range, objects appear almost three-dimensional, providing an unparalleled viewing experience. This level of immersion and connection would not be achievable solely through viewing on a phone or other external device.
Can I simulate the field of view I’ll get with SmartEye and my telescope setup?
Yes! There are two great tools you can use to simulate how SmartEye will perform with your telescope and accessories:
1. SkySafari 7 Pro You can add SmartEye to your equipment list in SkySafari 7 Pro and create Field of View (FOV) indicators. This lets you simulate exactly what you'll see through your telescope using SmartEye, including accessories such as focal reducers.
2. Astronomy Tools FOV Calculator SmartEye is now listed in the Astronomy Tools Field of View Calculator, a popular online tool that lets you visually preview your setup. You can search for "SmartEye" as both an eyepiece or imaging camera. Visit the FOV Calculator.

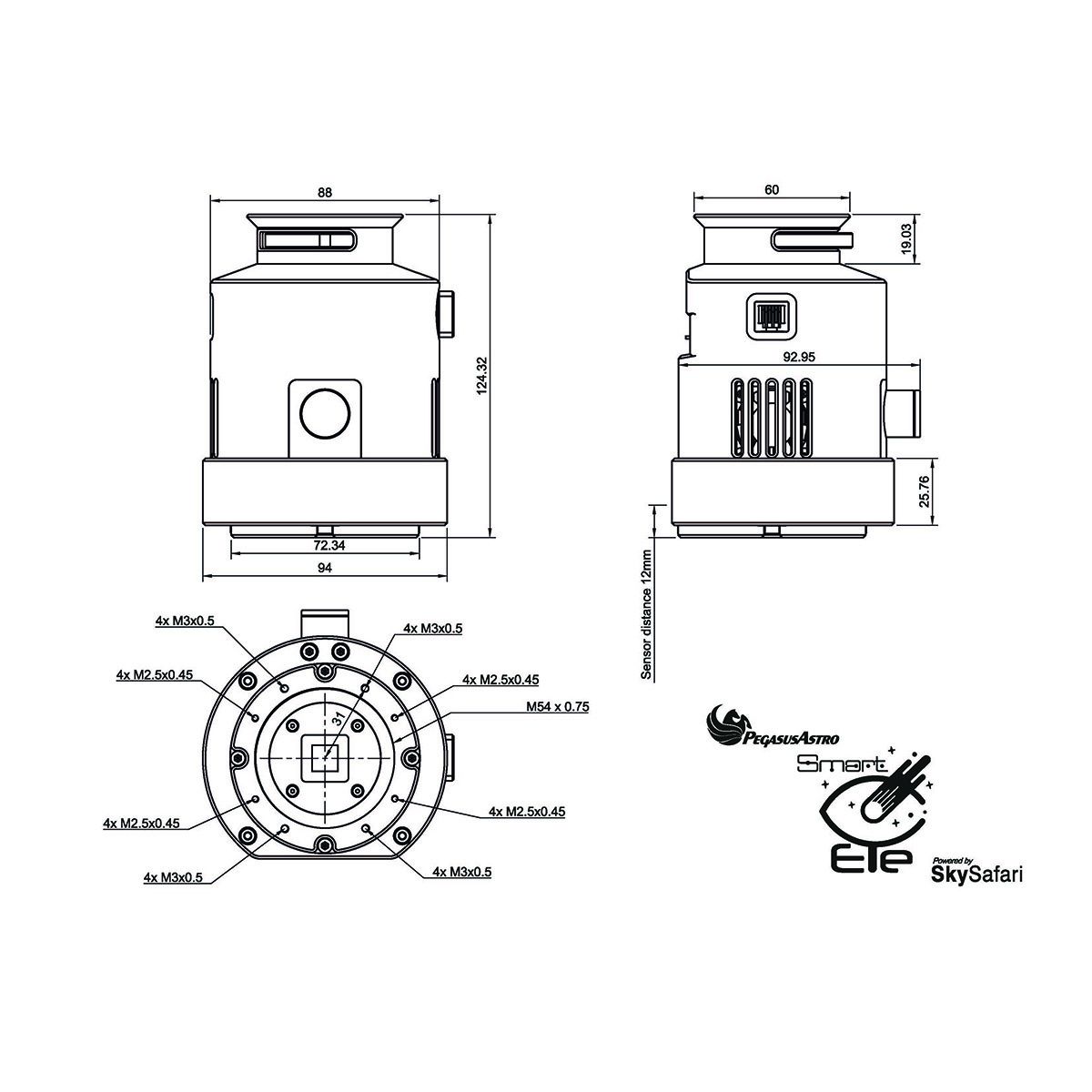

SmartEye Mechanical Diagram
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
-

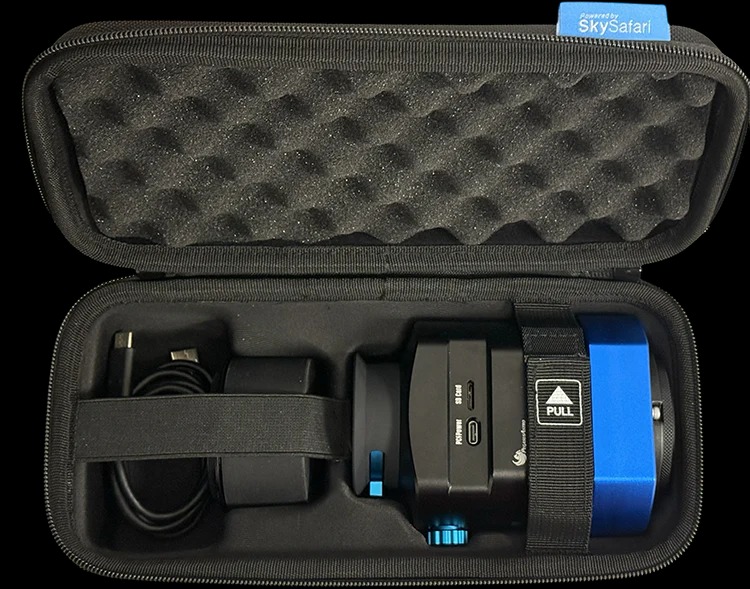

The SmartEye - With Protective Caps
-
USB-C to USB-C Power Cable (1.0m)
-
Adapter for 12V to USB-C
-
2" Nose Piece - With M54 Male With a M48 Female Thread
-
Protective Hard Case
