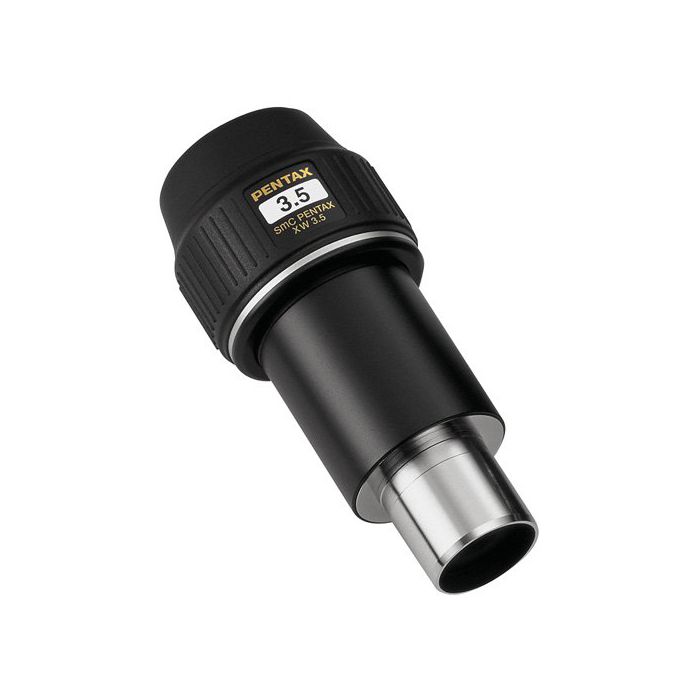

Pentax 1.25" SMC XW Eyepiece - 3.5mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Designed for use with Pentax spotting scopes and with astronomical telescopes with 1 1/4" focusers/eyepiece holders
- Weatherproof construction for greater durability
- Features high-grade Lanthanum glass with high refraction and low dispersion
- Original multi-coating and special coating on the laminated surfaces effectively reduce flare and ghosting, achieving extremely high light transmission performance
- Removable eyecup allows attachment of an adapter of 43mm in diameter with a 0.75mm pitch (not included)
70% Apparent Field of View, 20mm Eye Relief, plus Weatherproof Body for Multi-Application Viewing
Clear, Comfortable Viewing Assured by 70° Apparent Angle of View and 20mm Eye Relief
All SMC Pentax XW-series eyepieces feature an extra-wide 70-degree apparent angle of view and an extra-long 20mm eye relief to deliver an exciting, wide-perspective image.
High-Grade Optics for Exceptional Image Quality
The high-performance XW-series optics incorporates high-refraction, extra-low-dispersion lanthanum glass elements to produce a well-balanced image with minimal aberrations. It is particularly designed to reduce the disturbing blackout effect by effectively compensating the spherical aberration of the pupil.
Pentax-Original Multi-Layer Coating for Outstanding Light Transmission Efficiency
All lens surfaces that come in contact with air are treated with original multi-layer coatings, while all laminated surfaces are treated with an innovative partial coating to offer the light transmission efficiency of more than 90 percent (an astonishing 96 percent at 550nm) over the visible light spectrum.
Advanced Light-Shielding Technology for Improved Image Contrast
Thanks to Pentax’s advanced computer simulation technology, the XW series features a light-shielding diaphragm at the most effective position to drastically reduce internal reflections for a brighter, higher-contrast image.
Weatherproof Construction for All-Weather Viewing
The XW series features JIS Class 4 weatherproof construction, making it possible to use it in drizzle or under night dew. However, please note that the XW-series eyepieces are not designed for underwater use and should not be submerged under water.
American-Standard Eyepiece Sleeve and Built-In Adapter-Mounting Screw
The XW series features the American-standard 31.7mm (1.25") barrel for smooth, easy installation on Pentax spotting scopes. When the rotatable eyecup is removed, it also offers an adapter-mounting screw/thread (43mm in diameter with a 0.75mm pitch).
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | XW |
| Focal Length | 3.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 70° |
| Eye Relief (Designed) | 20mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multicoated |
| Lens Elements | 8 |
| Lens Groups | 5 |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Manufacturer Supplied |
| Height (With Eyeguard Extended) | 137mm / 5.39" |
| Maximum Width | 61mm / 2.40" |
| Rubber Eye Guard | Yes |
| Weight | 14.3 oz / 405 g |
| Country of Manufacture | Japan |
| Hide Found a better Shipped Price on Frontend? | No |
- Designed for use with Pentax spotting scopes and with astronomical telescopes with 1 1/4" focusers/eyepiece holders
- Weatherproof construction for greater durability
- Features high-grade Lanthanum glass with high refraction and low dispersion
- Original multi-coating and special coating on the laminated surfaces effectively reduce flare and ghosting, achieving extremely high light transmission performance
- Removable eyecup allows attachment of an adapter of 43mm in diameter with a 0.75mm pitch (not included)
70% Apparent Field of View, 20mm Eye Relief, plus Weatherproof Body for Multi-Application Viewing
Clear, Comfortable Viewing Assured by 70° Apparent Angle of View and 20mm Eye Relief
All SMC Pentax XW-series eyepieces feature an extra-wide 70-degree apparent angle of view and an extra-long 20mm eye relief to deliver an exciting, wide-perspective image.
High-Grade Optics for Exceptional Image Quality
The high-performance XW-series optics incorporates high-refraction, extra-low-dispersion lanthanum glass elements to produce a well-balanced image with minimal aberrations. It is particularly designed to reduce the disturbing blackout effect by effectively compensating the spherical aberration of the pupil.
Pentax-Original Multi-Layer Coating for Outstanding Light Transmission Efficiency
All lens surfaces that come in contact with air are treated with original multi-layer coatings, while all laminated surfaces are treated with an innovative partial coating to offer the light transmission efficiency of more than 90 percent (an astonishing 96 percent at 550nm) over the visible light spectrum.
Advanced Light-Shielding Technology for Improved Image Contrast
Thanks to Pentax’s advanced computer simulation technology, the XW series features a light-shielding diaphragm at the most effective position to drastically reduce internal reflections for a brighter, higher-contrast image.
Weatherproof Construction for All-Weather Viewing
The XW series features JIS Class 4 weatherproof construction, making it possible to use it in drizzle or under night dew. However, please note that the XW-series eyepieces are not designed for underwater use and should not be submerged under water.
American-Standard Eyepiece Sleeve and Built-In Adapter-Mounting Screw
The XW series features the American-standard 31.7mm (1.25") barrel for smooth, easy installation on Pentax spotting scopes. When the rotatable eyecup is removed, it also offers an adapter-mounting screw/thread (43mm in diameter with a 0.75mm pitch).
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | XW |
| Focal Length | 3.5mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 70° |
| Eye Relief (Designed) | 20mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multicoated |
| Lens Elements | 8 |
| Lens Groups | 5 |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Manufacturer Supplied |
| Height (With Eyeguard Extended) | 137mm / 5.39" |
| Maximum Width | 61mm / 2.40" |
| Rubber Eye Guard | Yes |
| Weight | 14.3 oz / 405 g |
| Country of Manufacture | Japan |
| Hide Found a better Shipped Price on Frontend? | No |
Pentax 1.25" SMC XW Eyepiece - 3.5mm # 70511
