PrimaLuceLab C120 Pier for Concrete Base
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

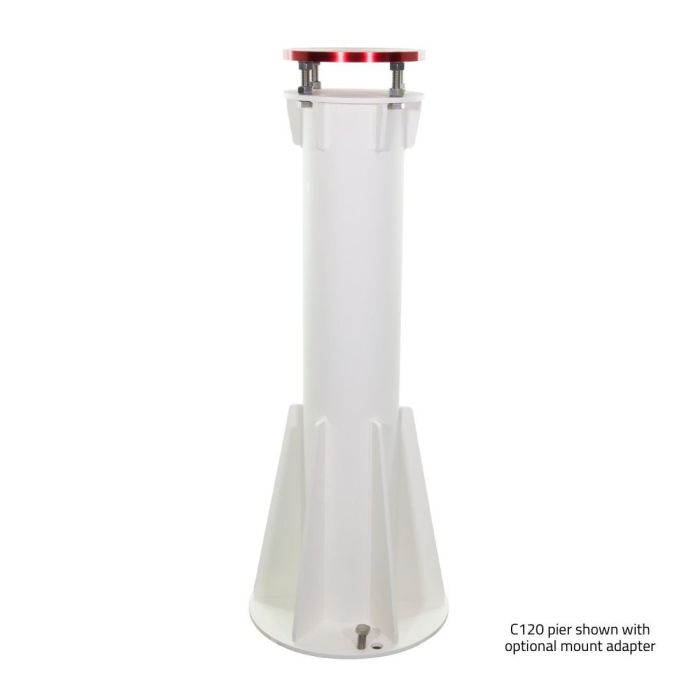

C120 pier is the perfect solution to install even a large telescope in an astronomical observatory. The C120 pier has a high load capacity (150 kg) and, compared to a standard tripod, it provides high stability and needs for less space. A pier also prevent the telescope to touch the tripod legs during movements! This pier is available also with different optional adapters for EQ6, EQ6-R, AZ-EQ6, CGEM, EQ8, GM1000, GM2000, GM3000 or Paramount MX mounts.
The C120 pier is 120cm high (height from the ground including the optional adapter) and is made up of steel with 4mm thickness and 220mm diameter tube in order to ensure high load capacity. The pier is powder coated. At the base of the pier there are 3 pairs of holes at 120°: each pair consists of a through hole that is used to fix the pier to the threaded bars (not included) that have to be in the concrete base and an M20 threaded hole where you screw in the M20 screws (supplied in the package) to allow leveling of the C120 pier. The C120 pier for concrete base weighs 60 kg without the optional adapter.

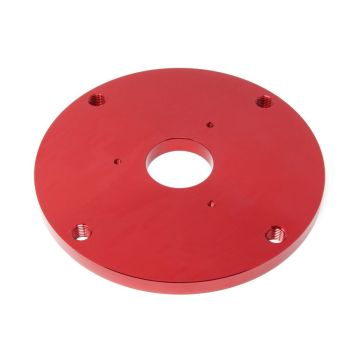

You can order the C120 pier also without the adapter: in this case the user will have to make an adapter for their mount. In the third image above you will find the dimensions of the adapter with the connections for the C120 pier, then you will have to add the connection for your mount.
| Free Shipping Graphic | Free Contiguous US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
C120 pier is the perfect solution to install even a large telescope in an astronomical observatory. The C120 pier has a high load capacity (150 kg) and, compared to a standard tripod, it provides high stability and needs for less space. A pier also prevent the telescope to touch the tripod legs during movements! This pier is available also with different optional adapters for EQ6, EQ6-R, AZ-EQ6, CGEM, EQ8, GM1000, GM2000, GM3000 or Paramount MX mounts.
The C120 pier is 120cm high (height from the ground including the optional adapter) and is made up of steel with 4mm thickness and 220mm diameter tube in order to ensure high load capacity. The pier is powder coated. At the base of the pier there are 3 pairs of holes at 120°: each pair consists of a through hole that is used to fix the pier to the threaded bars (not included) that have to be in the concrete base and an M20 threaded hole where you screw in the M20 screws (supplied in the package) to allow leveling of the C120 pier. The C120 pier for concrete base weighs 60 kg without the optional adapter.
You can order the C120 pier also without the adapter: in this case the user will have to make an adapter for their mount. In the third image above you will find the dimensions of the adapter with the connections for the C120 pier, then you will have to add the connection for your mount.
