PrimaLuceLab Losmandy Style Dovetail Plate PLUS: 495mm (19.5") Length
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

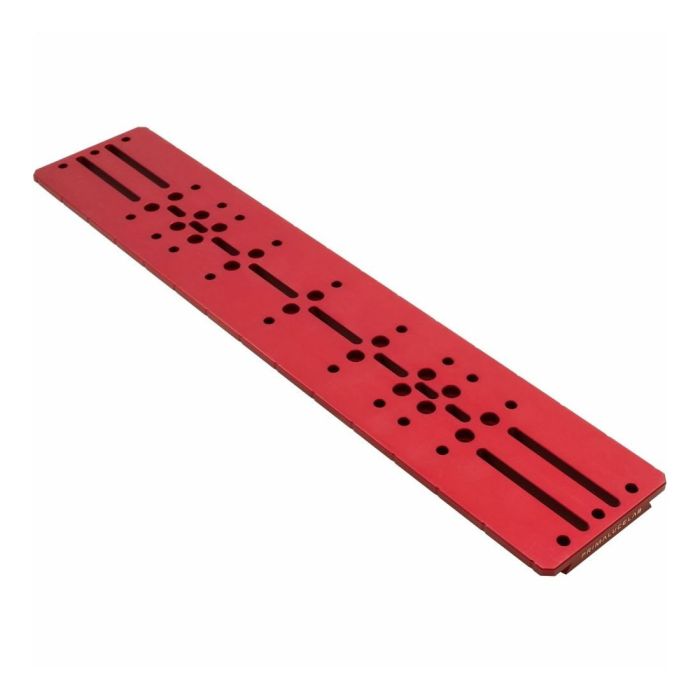

The Losmandy style dovetail plate 495mm PLUS is designed to let you install your telescopes on mounts with this connection. This dovetail plate is 495mm long and is useful for installing large dimensions telescopes (such as Newton up to 300mm in diameter) on mounts with Losmandy plate (as the SkyWatcher AZ-EQ6, or EQ8). Like all the elements of the PLUS system, this plate is made with high precision mechanics (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical components such as support rings, guide rings or dovetail clamps. Weight: 1.2 kg.
The Losmandy style dovetail plate 495mm PLUS is part of PrimaLuceLab's PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.
For this application, PrimaLuceLab designed many elements, including the Losmandy style dovetail plate 495mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Losmandy style dovetail plate 495mm PLUS can be:
- positioned below the support rings to install the telescope on mounts with Losmandy plate
- installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
- used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Losmandy plate) together with 2 dovetail clamps PLUS.
If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed PrimaLuceLab has provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The Losmandy style dovetail plate 495mm PLUS is designed to let you install your telescopes on mounts with this connection. This dovetail plate is 495mm long and is useful for installing large dimensions telescopes (such as Newton up to 300mm in diameter) on mounts with Losmandy plate (as the SkyWatcher AZ-EQ6, or EQ8). Like all the elements of the PLUS system, this plate is made with high precision mechanics (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical components such as support rings, guide rings or dovetail clamps. Weight: 1.2 kg.
The Losmandy style dovetail plate 495mm PLUS is part of PrimaLuceLab's PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.
For this application, PrimaLuceLab designed many elements, including the Losmandy style dovetail plate 495mm PLUS. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.
Thanks to the particular design, the Losmandy style dovetail plate 495mm PLUS can be:
- positioned below the support rings to install the telescope on mounts with Losmandy plate
- installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as guide rings to precisely adjust the position of the guide telescope).
- used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Losmandy plate) together with 2 dovetail clamps PLUS.
If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed PrimaLuceLab has provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
PrimaLuceLab Losmandy Style Dovetail Plate PLUS: 495mm (19.5") Length # PLLLOS495P
