PrimaLuceLab PLUS Riser Blocks / Spacers - 20mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

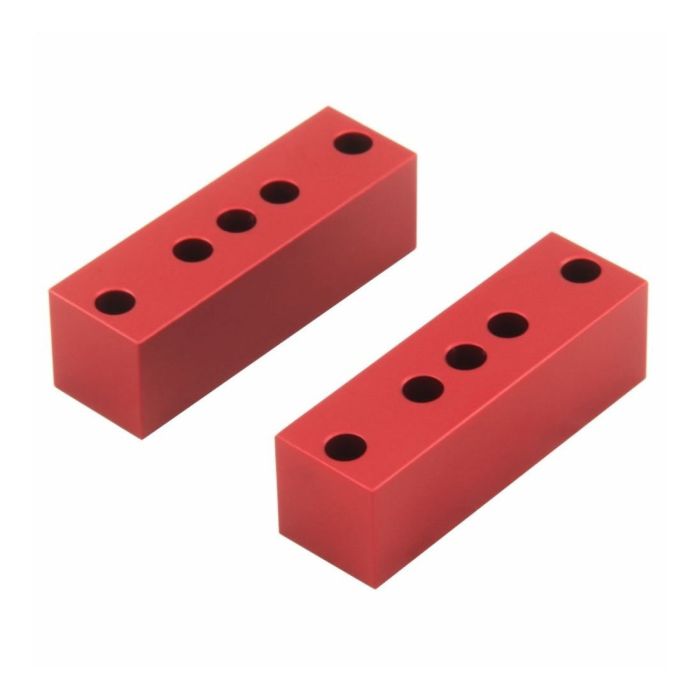

When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 20mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have five holes, with 20mm separation for one pair to PLUS Vixen dovetail bars and guide rings and 55mm for a second pair for PLUS Losmandy dovetail bars. Fifth hole is on center.
The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (35mm) which are provided in the package (4 screws). In the image above, the PLUS spacers have been installed between a PLUS Losmandy dovetail bar and PLUS support rings.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 20mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have five holes, with 20mm separation for one pair to PLUS Vixen dovetail bars and guide rings and 55mm for a second pair for PLUS Losmandy dovetail bars. Fifth hole is on center.
The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (35mm) which are provided in the package (4 screws). In the image above, the PLUS spacers have been installed between a PLUS Losmandy dovetail bar and PLUS support rings.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
PrimaLuceLab PLUS Riser Blocks / Spacers - 20mm # PLLSPES20
