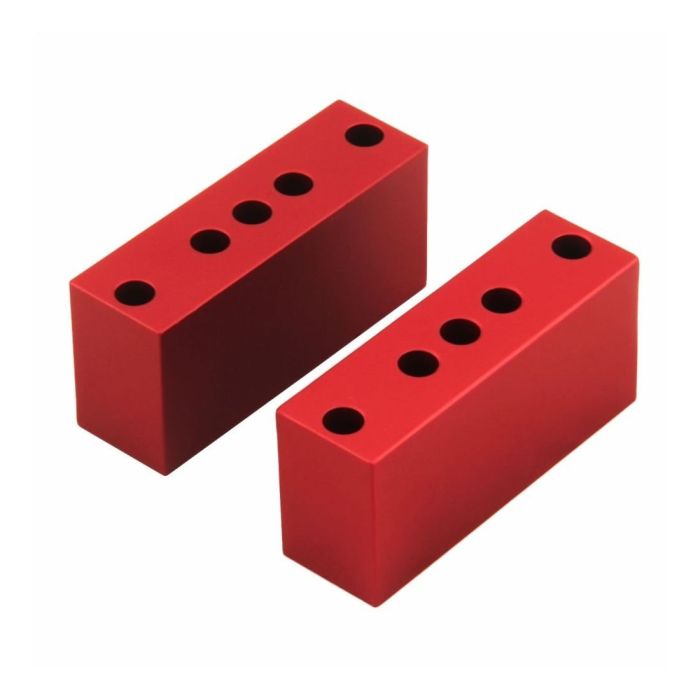

When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 30mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have five holes, with one pair being 20mm separation for PLUS Vixen dovetail bars and guide rings and a second pair with 55mm separation for PLUS Losmandy dovetail bars. Fifth hole is on center.
The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (45mm) which are provided in the package (4 screws). In the image above, the PLUS spacers have been installed between a PLUS Losmandy dovetail bar and PLUS support rings.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
When we install many instruments (for example telescope with guide scope in parallel) on the mount, it can happen that they are too close together, and that some element touches the others. That's why we created the PLUS 30mm spacers that can be fixed between two mechanical elements (such as a plate and the support rings), keeping the functionality of the PLUS system. In fact they have five holes, with one pair being 20mm separation for PLUS Vixen dovetail bars and guide rings and a second pair with 55mm separation for PLUS Losmandy dovetail bars. Fifth hole is on center.
The PLUS spacers have holes to fix the other elements always with M6 screws but of greater length (45mm) which are provided in the package (4 screws). In the image above, the PLUS spacers have been installed between a PLUS Losmandy dovetail bar and PLUS support rings.
