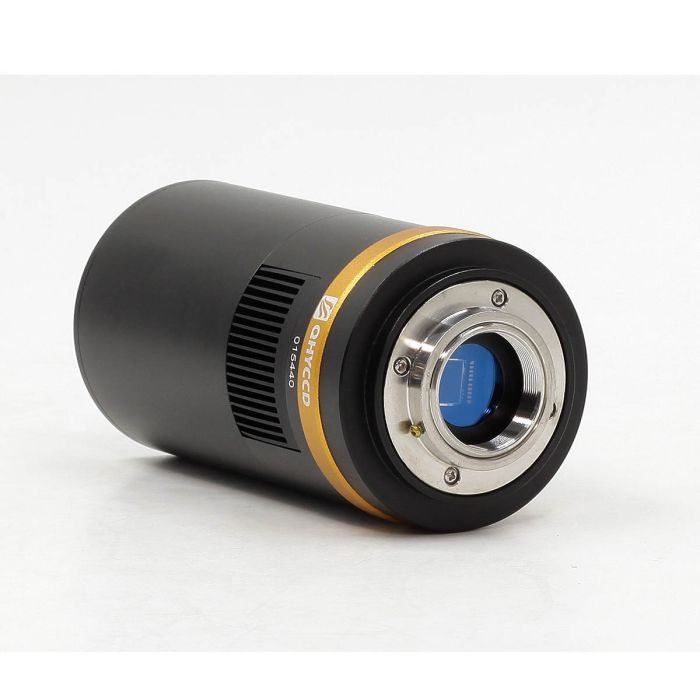

QHY 10 Color Astronomy Camera with USB 2.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- One-shot color astronomy camera with 10 Megapixel APS-C Sony ICX493AQA sensor
- Low thermal noise and low read noise clean high-resolution color images
- Large full well capacity for sharper star images and superior color
- Two-stage cooling keeps sensor temperature as much as 40C below ambient to reduce thermal noise further, even in warm conditions
- Slim body with 63mm diameter and black matte finish ideal for Hyperstar configurations
1. Cooled One-Shot Color Astronomy Camera for Deep-Sky Imaging
The QHY10 is a 10 Megapixel one-shot color camera with an APS-C Sony ICX493AQA Super HAD CCD sensor. In addition to the very low thermal noise of Sony's SuperHAD technology, this sensor has a high full well capacity. Even with high resolution 6.05um square pixels, it has a 45ke- full well. This is almost double that of the ICX413 with 7.8um square pixels, and almost double that of the KAF-8300 color sensor with 5.4um square pixels. The high full well capacity yields a higher dynamic range allowing a longer exposure time without signal saturation. This yields better colors and smaller star points.
At a dark site, this camera offers the user a simple and easy way to capture deep sky objects in full color without the need, complexity and cost of RGB filters and filter wheel. Image processing can likewise be simplified compared to separate processing and combining of LRGB frames.
2. Two-Stage Cooling for Low Noise and Purged Chamber to Keep Sensor Dry
SONY's CCD sensors are famous for their low thermal noise, and the effect of this noise is further reduced in the QHY10 with two-stage TEC cooling and thermal construction design. The QHY10 has the cooling capability of -40C below ambient. This results in the production of very clean images even in exposures of 30 minutes to one hour.
3. Classic Narrow-Profile Design Ideal for Hyperstar Configurations
The QHY10 camera body has a diameter of only 63mm only, making it ideally suited for Hyperstar imaging The QHY10 comes with a clip for USB and power cables to help keep solid connections and avoid conditions that result in loss of contact.
The outer camera body finish is matte black to avoid reflection when used in Hyperstar configurations.
4. What's in the Box
- USB cable
- 9-Pin Power Cable
- DC201
- Cable Clip
- Desiccant Drying Tube
- Center and Angle Adjustment Ring
Note:12V 6A adapter is optional
| Manufacturer | QHYCCD |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
