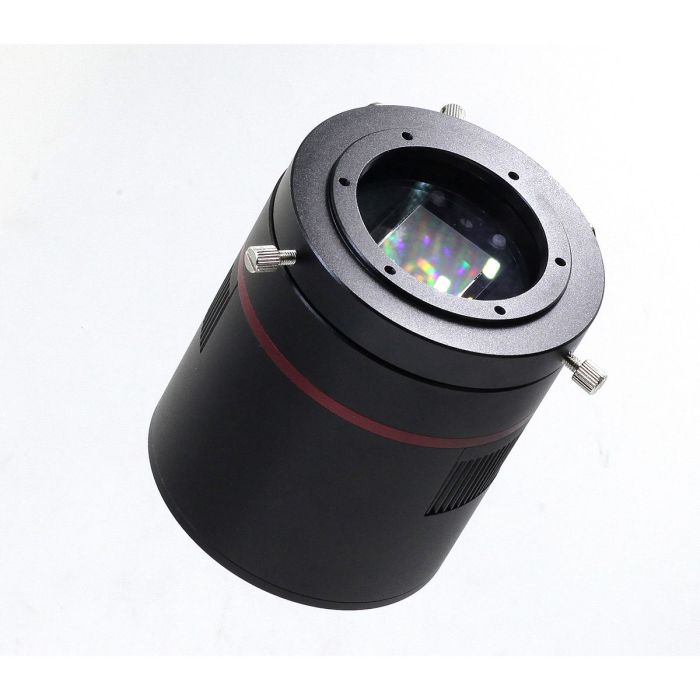

QHY 11 Cooled Monochrome Astronomy Camera with USB 2.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Full-frame monochrome astronomy camera with 11 Megapixel TrueSense KAI-11002 Grade 2 CCD sensor with big 9 um pixels
- Two-stage cooling keeps sensor temperature as much as 45C below ambient to reduce thermal noise further, even in warm conditions
- Heated window to prevent dew and frost
- Slim body diameter and black matte finish ideal for Hyperstar configurations
- Large image circle ideal for Schmidt-type RASA astrographs and other wide-field configurations
1. Full-Frame Monochrome Astronomy CCD Camera for Deep-Sky Imaging
The QHY11 is a full frame (36 x 24mm) monochrome cooled CCD camera in a compact body. It uses the well-known On Semiconductor (Kodak) TrueSense KAI-11002 Grade 2 CCD. The 11 Megapixel CCD has 9um pixels for excellent resolution and a wide field of view in many telescopes. Numerous APODs have been taken with cameras using this CCD. The 9.0um square pixels with microlenses provide high sensitivity and the large full well capacity results in high dynamic range. The vertical overflow drain structure provides anti-blooming protection and enables electronic shuttering for precise exposure control. Other features include low dark current, negligible lag and low smear.
2. Two-Stage Cooling for Low Noise and Heated Window
The QHY11 cooling typically achieves a temperature as much as -45C below ambient. This temperature exceeds most of other cameras based on the KAI-11000 or KAI-11002. Lower temperature results in lower thermal noise and fewer hot pixels with this camera.
The camera also includes a heater for the optical window to prevent frost and dew. For conditions with high humidity, the QHY11 CCD chamber has a connector for the desiccant plug to dry the CCD chamber. The QHY11 also comes with a cable clip which helps secure the contract of the USB and power cables. The QHY11 is available in both mono and color. For the color version we only accept pre-orders.
3. Classic Narrow-Profile Design Ideal for Hyperstar Configurations
The QHY11 has a compact body making it ideally suited for Hyperstar imaging. The camera offers a wide field of view and a big image circle that makes it an excellent choice for Schmidt cameras like the Celestron RASA telescope or similar wide-field systems.
4. What's in the Box
- USB cable
- 9-Pin Power Cable
- DC201
- Cable Clip
- Desiccant Drying Tube
- Center and Angle Adjustment Ring
Note:12V 6A adapter is optional
