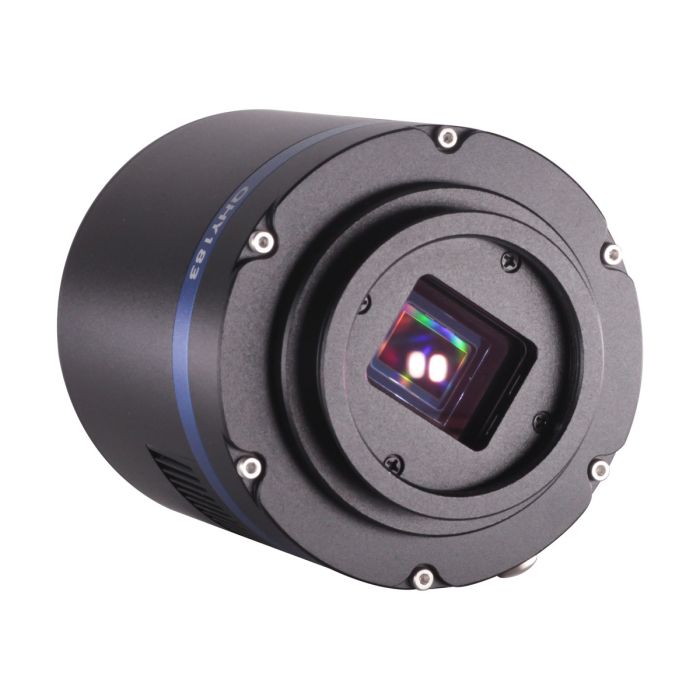

QHY 183M Cooled Monochrome Astronomy Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- QHY183M cooled 20-Megapixel monochrome astronomy camera ideal for serious deep-sky imaging
- Sony STARVIS Exmor-R IMX183 1-inch CMOS sensor with small 2.4um pixels in a 5544x3694 array
- Two-stage cooling keeps sensor temperature as much as 45C below ambient for low-noise imaging, even in warm conditions
- 128MB DDRII data buffer to minimize data dropouts during image transfer
- Reduced amp-glow for superior imaging of faint objects
1. Cooled Astronomy Camera for Deep-Sky Imaging
The 20-megapixel QHY183M camera uses the back-illuminated Exmor R Sony IMX183 20MP sensor for high sensitivity and a quantum efficiency of 84%. The 1-inch monochrome sensor has an array of 5544x3694 pixels that are 2.4um in size, with readout noise as low as 1e and a full well depth of 15.5ke-. This CMOS astrophotography camera is capable of 4K video output at 31fps and full resolution real time output at 19 frames per second. Ideal for serious deep-sky imagers!
2. Two-Stage Cooling for Low Noise and Sealed Chamber to Keep Sensor Dry
The QHY183M monochrome camera comes with a two-stage TEC cooling and temperature control that cools the camera as low as -45C below ambient, which is ideal for warm and damp summer observing conditions. QHY has also built in anti-dew technology into the QHY183. The sensor chamber is sealed and incorporates a silicon gel tube socket and heater to help keep both the sensor and the sensor window dry.
The cooler requires +12VDC input (power supply not included).
3. Built-In Buffer for Reliable Data Transfer
The QHY183M has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 2.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also helps multiple camera applications and avoids USB transfer problems. For example, it is possible to operate four QHY183 cameras on the same computer to create an LRGB imaging array.
4. Reduced Amp-Glow for Superior Deep-Sky Imaging
The QHY183M camera has a control circuit to reduce amplifier glow significantly, especially important for longer exposures of deep-sky objects at high gain.
5. Whats in the Box
- USB3.0 cable(1.5m)
- Self-locking power cable
- 6pin guide cable
- Car power adapter
- Desiccant Drying Tube
- desiccant
- M42/1.25inch adaptor
- Driver download card
- Inspection report
- Camera
Optional accessories: 12V power adapter + power cable, C-adapter lens mount
NOTE: If you wish to supply your own 12V power adapter, its output current must be at least 3.5A and the polarity must be center positive.
