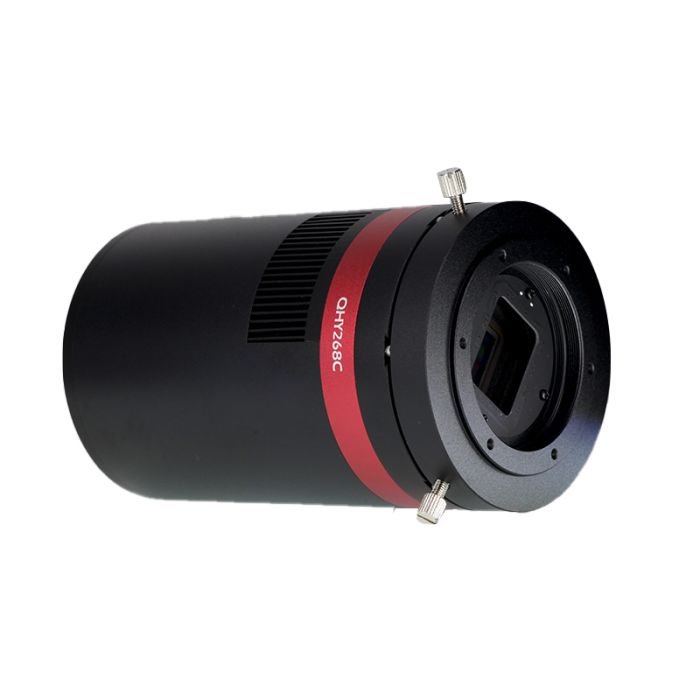

QHY 268C (Standard BFL Version) 26 MP CMOS APS-C Color Astronomy Camera
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note: This is QHY's standard back focal length (17.5mm) version.
- Back Focal Length: 17.5mm (without CAA) This intercept does not include CAA. If CAA is used, it increases by 6mm (23.5mm total). Please check the mechanical drawing for details.
- Telescope Interface: M54/0.75 （with CAA）and M48 (with standard adapter)
1. Ultra High Resolution: 26 Megapixels, APS-C format
The QHY268C is a 26 Megapixel cooled, back-illuminated, color CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels. The QHY268C is available only in a color model.
2. Native 16-Bit: On-chip 16-bit A/D, 65536 Levels
The Sony IMX571 sensor has on-chip 16-bit A/D for highest resolution of greyscale. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, 16-bit A/D provides higher sampling resolution. At high gain, the camera yields close to 1e-/ADU with low read noise and no sampling error.
3. High Dynamic Range: 51ke- Full Well at 3.76um, 75ke- in extended mode
One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned 3.76um pixels the QHY268C has a full well capacity of 51ke-. QHY268C also offers a unique read mode up to 75ke per pixel. When binned 2x2 to 7.5um the full well is 176ke- and when binned 3x3 to 11um the full well is 396ke-.
4. Ultra Low Read Noise: 0.7e- Noise at High gain, 3.5e- Noise at Low Gain
The QHY268C has only 0.7 electron of read noise at its highest gain and 6.8 FPS at full resolution readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys and time domain astronomy
5. Back-Illuminated, High QE: Very Low Dark current, Electronic Shutter, Round Body
The back-illuminated Sony Exmor sensor has about twice the QE of similar front illuminated sensors. The QHY268C has extremely low dark current using SONY's Exmor BSI CMOS technology (only 0.0005e/pixel/sec @ -20C). In addition, the camera uses QHYCCD's proprietary thermal noise reduction technology and 2-stage TE cooling to reduce the dark current noise to extremely low levels.
In general, a fan-blade mechanical shutter may fail after several hundred thousand cycles and is subject to intermittent problems in very cold weather. The advantage of an electronic shutter over a mechanical shutter is high reliability and stability when the observer takes a large number of images.
The round body and sensor size make this camera ideal for Hyperstar and RASA systems. The camera has a USB3.0 interface to the computer.
6. Built-In Buffer for Reliable Data Transfer
2GB Image Buffer: In order to get smooth uninterrupted high speed transfer of data, the QHY 268C has a large 2 GB DDR3 memory buffer.
7. Photographic and Pro Versions Available
The QHY268PH-C (this item) has only the USB3.0 port. The QHY268PRO-C (sold separately) has both USB3.0 and 2X10Gbit fiber ports.
| Manufacturer | QHYCCD |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Please note: This is QHY's standard back focal length (17.5mm) version.
- Back Focal Length: 17.5mm (without CAA) This intercept does not include CAA. If CAA is used, it increases by 6mm (23.5mm total). Please check the mechanical drawing for details.
- Telescope Interface: M54/0.75 （with CAA）and M48 (with standard adapter)
1. Ultra High Resolution: 26 Megapixels, APS-C format
The QHY268C is a 26 Megapixel cooled, back-illuminated, color CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels. The QHY268C is available only in a color model.
2. Native 16-Bit: On-chip 16-bit A/D, 65536 Levels
The Sony IMX571 sensor has on-chip 16-bit A/D for highest resolution of greyscale. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, 16-bit A/D provides higher sampling resolution. At high gain, the camera yields close to 1e-/ADU with low read noise and no sampling error.
3. High Dynamic Range: 51ke- Full Well at 3.76um, 75ke- in extended mode
One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned 3.76um pixels the QHY268C has a full well capacity of 51ke-. QHY268C also offers a unique read mode up to 75ke per pixel. When binned 2x2 to 7.5um the full well is 176ke- and when binned 3x3 to 11um the full well is 396ke-.
4. Ultra Low Read Noise: 0.7e- Noise at High gain, 3.5e- Noise at Low Gain
The QHY268C has only 0.7 electron of read noise at its highest gain and 6.8 FPS at full resolution readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys and time domain astronomy
5. Back-Illuminated, High QE: Very Low Dark current, Electronic Shutter, Round Body
The back-illuminated Sony Exmor sensor has about twice the QE of similar front illuminated sensors. The QHY268C has extremely low dark current using SONY's Exmor BSI CMOS technology (only 0.0005e/pixel/sec @ -20C). In addition, the camera uses QHYCCD's proprietary thermal noise reduction technology and 2-stage TE cooling to reduce the dark current noise to extremely low levels.
In general, a fan-blade mechanical shutter may fail after several hundred thousand cycles and is subject to intermittent problems in very cold weather. The advantage of an electronic shutter over a mechanical shutter is high reliability and stability when the observer takes a large number of images.
The round body and sensor size make this camera ideal for Hyperstar and RASA systems. The camera has a USB3.0 interface to the computer.
6. Built-In Buffer for Reliable Data Transfer
2GB Image Buffer: In order to get smooth uninterrupted high speed transfer of data, the QHY 268C has a large 2 GB DDR3 memory buffer.
7. Photographic and Pro Versions Available
The QHY268PH-C (this item) has only the USB3.0 port. The QHY268PRO-C (sold separately) has both USB3.0 and 2X10Gbit fiber ports.
