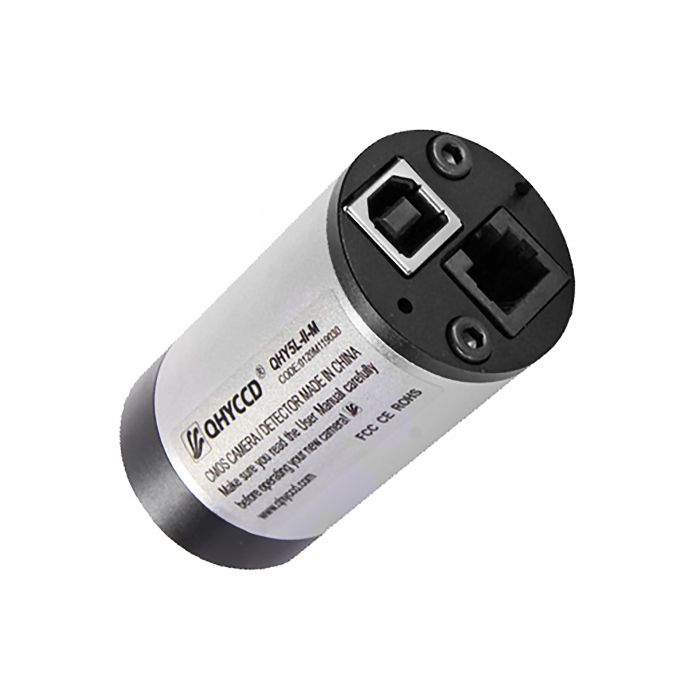

QHY 5-II Monochrome Astronomy Camera & Autoguider with USB 2.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Compact monochrome autoguider fits in a 1.25-inch eyepiece holder
- 1.3 Megapixel ½-inch CMOS sensor with 56% quantum efficiency
- Large 5.6-micron pixels provide high signal-to-noise ratio rivalling CCD sensors
- Data speed up to 30fps at full resolution of 1280x1024
- Comes with metal box, USB cable, focus ring, and 1.25” extension tube
1. Compact, High-Sensitivity Autoguiders
QHY5-II series USB2.0 cameras come in very small but powerful packages. These cameras fit in a standard 1.25-inch eyepiece holder, but their improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope's eyepiece tube. QHY5-II-series cameras are ideal for use as light-weight autoguiders or planetary imaging or travel cameras, and they’re directly powered through a USB connection. These cameras also have an adjustable location ring for confocality with an eyepiece.
2. Ideal for Real-Time Imaging of Bright Celestial Objects
QHY5-II series cameras are supplied with both Native WDM and Broadcast WDM drivers, which means you can use them as an ultra-high-performance web-cam for video capture or live video broadcasting. Show real-time astronomy images and events to your friends! QHY5-II series cameras can also be connected with the QHY InterCam stand-alone camera.
3. Fast Data Transfer and High Signal-To-Noise Ratio
The small but powerful QHY5II-M uses the On Semiconductor's MT9M001, 1/2-inch, 1.3 Megapixel monochrome CMOS sensor that provides a resolution of 1280x1024. The big 5.6um pixels result in low-light sensitivity and high signal-to-noise ratio rivaling that of CCDs while maintaining the size, cost, and integration advantages of CMOS. The camera can output 1280x1024@30fps and 320x240@320FPS. This camera is available in monochrome only. The quantum efficiency (QE) of the monochrome sensor is 56%. It weighs only 51g.
4. Ready To Go Out of the Box
Each QHY5II series camera comes in its own metal box with USB cable, guide cable, focus ring and 1.25" extension tube.
Specifications:
- Sensor: MT9M001
- Computer Interface: USB2.0
- Total Pixels: 1.3 Megapixels
- Pixel Size: 5.6um
- Pixel Array: 1280 x 1024
- Optical Format: 1/2 inch
- FPS @ 640 x 480: 106
- FPS @ Full Resolution: 30
- Peak QE: 56%
- A/D Resolution: 10-bit
- Shutter: Electronic
- Dynamic Range: 68.2 dB
- Telescope Interface: 1.25", CS-Mount
- Weight: 51g
Manufacturer part number: QHY5-II-M
5. What's in the Box
USB Cable
Tracking Cable
Focus Location Ring
1.25" extension tube
CS focus spacers
