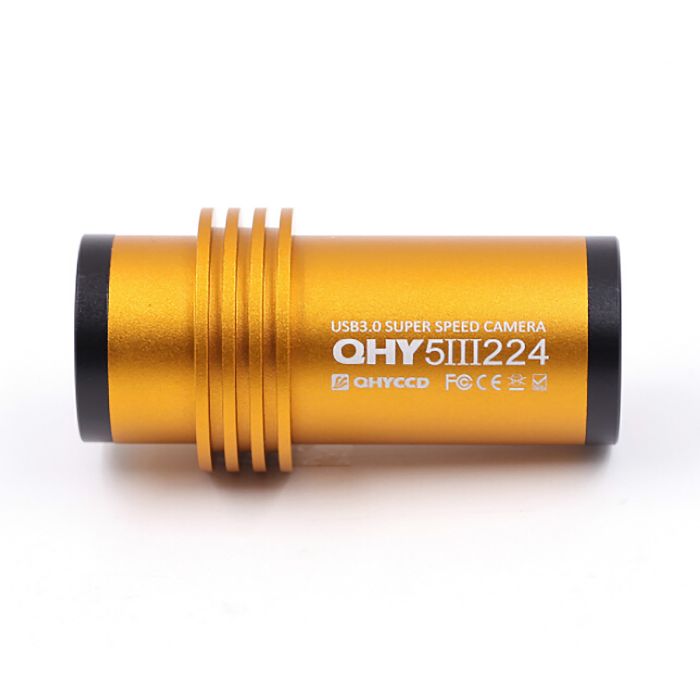

QHY 5-III 224C Color Astronomy Camera with USB 3.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Ultra-high sensitivity and low read noise for autoguiding and imaging
- IMX224 sensor with 3.75um pixels works well for imaging planets, Moon and Sun, and brighter deep-sky objects
- Data transfer rate of 150fps at full resolution of 1280x960
- Compact, thermally efficient housing fits in 1.25” eyepiece holder
- Robust aircraft-spec 5-pin socket for secure connection to external devices
1. Fast Data Transfer
The QHY5III-series are fast and sensitive astronomy cameras and autoguiders. They use a 5Gbps USB3.0 interface and have a maximum 350MByte/s transfer speed of image frames, ideal for high speed imaging of fast-rotating planets.
2. Advanced Heat Design
QHY5III-series cameras incorporate an advanced thermal design that helps transfer heat generated by the sensor and electronics to the metal case of the camera quickly. Heat is dissipated by the cooling fins and by the eyepiece holder of your telescope.
3. Compact Robust Design
Like the QHY5II-series, the QHY5III-series cameras feature a compact body that slides into a 1.25” eyepiece holder. Each camera also includes an adjustable location ring to make it confocal with an eyepiece. The QHY5III-series also includes an extremely robust and stable 5-pin aircraft-spec socket for a secure, solid connection between the camera and other devices. The cameras come with a 5-pin-LEMO-to-RJ11 guide cable for autoguiding.
4. Ultra-high Sensitivity and Low Read Noise for Solar System and DSO Imaging
The QHY5III-224C color astronomy camera uses Sony's ultra-low read noise IMX224 1/3-inch format CMOS sensor which has very high sensitivity and remarkably low readout noise. This sensor can reach less than a full 1e read noise, even at high gain. This lets you capture large amounts of light with minimal noise interference, producing crisp and clear images reliably. With its high sensitivity, this camera is great for planetary imaging and autoguiding, and it can also be used for deep sky imaging of brighter objects. The camera has a resolution of 1280x960 with 3.75um pixels, and a fast data transfer rate of 150fps at full resolution.
Software support includes: EZPlanetary, SharpCAP, FireCapture, Native WDM, BroadCast WDM and ASCOM.
5. What's in the Box
- USB Cable
- Tracking Cable
- Focus Location Ring
- 1.25" extension tube
- CS focus spacers
| Manufacturer | QHYCCD |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
