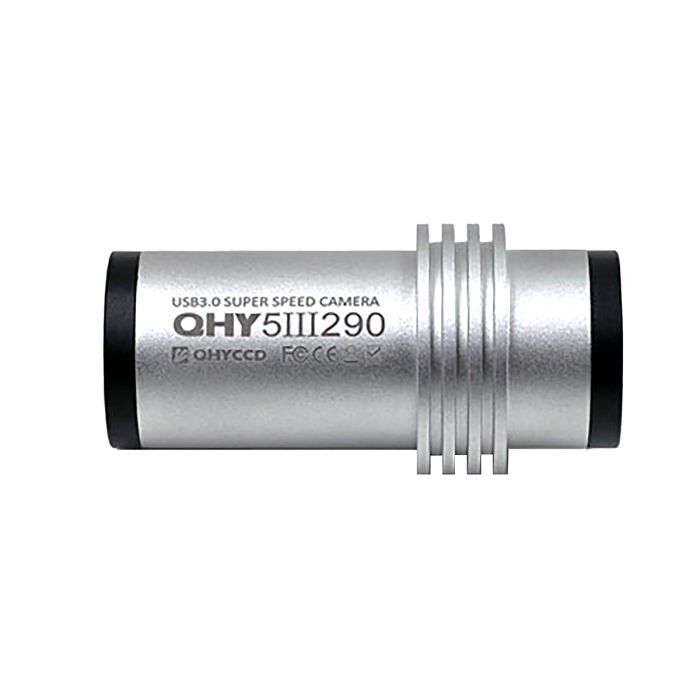

QHY 5-III 290C Color Astronomy Camera with USB 3.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Low-noise 2-Megapixel color camera with Sony IMX290 1920x1080 sensor with 2.9um pixels
- High data transfer rate of 135fps at full resolution ideal for planetary imaging
- Back-illuminated low-noise sensor design ideal for EAA applications
- Compact, thermally efficient housing fits in 1.25” eyepiece holder
- Robust aircraft-spec 5-pin socket for secure connection to external devices
1. Fast Data Transfer
The QHY5III-series are fast and sensitive astronomy cameras and autoguiders. They use a 5Gbps USB3.0 interface and have a maximum 350MByte/s transfer speed of image frames, ideal for high speed imaging of fast-rotating planets.
2. Advanced Heat Design
QHY5III-series cameras incorporate an advanced thermal design that helps transfer heat generated by the sensor and electronics to the metal case of the camera quickly. Heat is dissipated by the cooling fins and by the eyepiece holder of your telescope.
3. Compact Robust Design
Like the QHY5II-series, the QHY5III-series cameras feature a compact body that slides into a 1.25” eyepiece holder. Each camera also includes an adjustable location ring to make it confocal with an eyepiece. The QHY5III-series also includes an extremely robust and stable 5-pin aircraft-spec socket for a secure, solid connection between the camera and other devices. The cameras come with a 5-pin-LEMO-to-RJ11 guide cable for autoguiding.
4. Fast, Sensitive Camera for Planetary Imaging and EAA
The QHY5III-290C color camera uses the IMX290 STARVIS Exmor R back-illuminated CMOS sensor. This 1/2.8-inch sensor has ultralow readout noise and full 1920x1080 HD resolution with small 2.9um pixels, ideal for planetary imaging. The QHY5III-290C uses a fast USB 3.0 interface with 135 fps data transfer at full HD output. Low-noise performance and the back-illuminated sensor, which collects more light at the pixel level, makes this a perfect camera for capturing real-time images for electronically-assisted astronomy (EAA).
Software support includes: EZPlanetary, SharpCAP, FireCapture, Native WDM, BroadCast WDM and ASCOM.
5. What's in the Box
- USB Cable
- Tracking Cable
- Focus Location Ring
- 1.25" extension tube
- CS focus spacers
