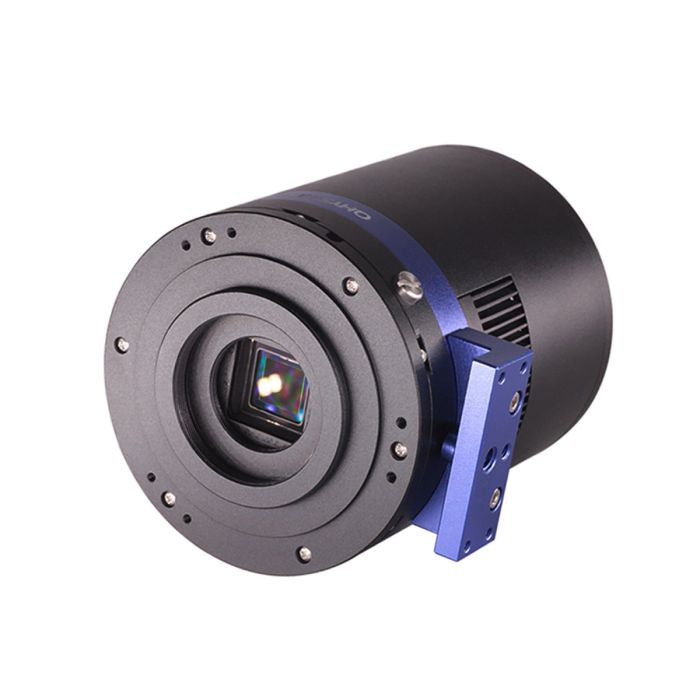

QHY 533C Cooled Color Astronomy Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
With the advantage of low noise and high-speeds, CMOS technology has revolutionized astronomical imaging. The QHY533C is a new generation of back-illuminated CMOS cameras with 3.76um pixels in the the same family as the sensors used in the flagship models QHY600 and QHY268, featuring zero amplifier glow, low noise and high sensitivity.
The IMX533 is a 9-megapixel, 15.97 mm diagonal (11.29 mm square) CMOS image sensor with 3003 x 3003 pixels at 3.76um, 14-bit A/D and is available in both monochrome (# QHY533M) and color (# QHY533C).
Features
BSI
One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels.In a typical front-illuminated sensor, photons from the target entering the photosensitive layer of the sensor must first pass through the metal wiring that is embedded just above the photosensitive layer. The wiring structure reflects some of the photons and reduces the efficiency of the sensor.
In the back- illuminated sensor the light is allowed to enter the photosensitive surface from the reverse side. In this case the sensor’s embedded wiring structure is below the photosensitive layer. As a result, more incoming photons strike the photosensitive layer and more electrons are generated and captured in the pixel well. This ratio of photon to electron production is called quantum efficiency. The higher the quantum efficiency the more efficient the sensor is at converting photons to electrons and hence the more sensitive the sensor is to capturing an image of something dim.
Zero Amplify Glow
Like the larger QHY600 and QHY268 cameras, the QHY533 models exhibit zero amplifier glow, no matter how long the exposure.
Large Image Buffer
The QHY533 has a large 1 GB image buffer for reliable image transfer at high rates using USB 3.0. The camera produces 27 FPS in 8-bit mode or 18 FPS in 16-bit mode.
True Raw Data
Some consumer digital cameras have a RAW image output, but typically it is not completely RAW. Some evidence of noise reduction and hot pixel removal is still visible on close inspection. This can have a negative effect on the image for astronomy such as the “star eater” effect. However, QHY Cameras offer TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs and other scientific imaging applications.
Design
Solid Build Quality
Although the QHY533 has a 1-inch optical format sensor, like the QHY183, it nevertheless uses a similar body size, style and build quality as the larger APS-C sized QHY268 camera.
Dual-Stage TE Cooling
In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to reduce dark current to its lowest possible value, less than 1/1000th of an electron at -20C.
Anti-Dew / Anti-Frost Technology
Based on almost 20 years of cooled camera design experience, QHY has implemented full frost and dew control solutions. The optical window has built-in dew heaters and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window helps prevent the formation of dew on the external surface of the window and the sensor itself is kept dry with our desiccant tube socket design for control of humidity within the sensor chamber.
Mechanical Interface
QHY533M (mono) and QHY533C (color) have different interface designs to accommodate their different anticipated uses. Both versions come with an additional adapter for mounting to a tripod. This makes it easier to shoot with a DSLR lens.
Note: QHY is also designing a front piece adapter for a standard nosepiece. Front plate may appear different in production models.
The QHY533C color camera will include a free Adapter Kit E that provides 55mm back-focus and M48 thread interface and/or direct connection to a Nikon or Canon lens adapter (sold separately). At the same time, the QHY533C has female C-Mount threads allowing direct mounting of C-Mount lenses.
New Adapter Kit
The new E1 Adapter Kit will allow direct connection via M48 threads and provides 55mm of backfocal distance. In the alternative, a Nikon or Canon DSLR lens adapter may be attached (lens adapters sold separately)
Specifications:
- Model: QHY533C
- CMOS Sensor: SONY IMX533 C
- Mono/Color: Color
- FSI/BSI: BSI
- Pixel Size: 3.76um x 3.76um
- Effective Pixel Area: 3080*3280 (includes the optically black area and overscan area)
- Effective Pixels: 9MP
- Sensor Size: 1 inch
- A/D Sample Depth: Native 14-bit A/D
- Full Well Capacity (1×1, 2×2, 3×3): 58ke-
- Full Frame Rate:USB3.0 Port: Full Resolution 27FPS @8BIT, 18FPS @16BIT
- Readout Noise: 1.3 to 3.4e-
- Dark Current: -20C，0.0005e- /pixel/sec
- Exposure Time Range: 30us-3600sec
- Unity Gain: 68
- Amp Control: Zero Amplifer Glow
- Shutter Type: Electronic Shutter
- Computer Interface: USB3.0
- Built-in Image Buffer: 1Gbyte DDR3 Memory
- Cooling System: Two-stage TEC cooler
- Less than 1S lower than ambient temperature -30C in continuous mode
- More than 1S continuous mode or lower than ambient temperature -35C in single frame mode
- Optic Window: Type AR+AR High Quality Multi-Layer Anti-Reflection Coating
- Anti-Dew Heater: Yes
- Telescope Interface: Support M48 (with adapter)
- Back Focal Length: 17mm
- Weight: 845g
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
