QHYCCD 30mm f/4.3 Mini Guidescope without Mount for Select QHY5-II/III Cameras
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
1. Background
In the era of high sensitivity and small pixel cameras, do you need a large and heavy guide scope? The answer is negative. Due to the high resolution (smaller pixels size) of the guide camera and the increase of the pixel density, the guide scope does not need to be a long focal length to sense the movement of the star image. As sensitivity is improved, it does not require a large aperture. As the focal length of the guide scope is shortened, the field of view increases, so that more guide stars will be within a fixed field of view. Based on these ideas, QHYCCD introduced the miniGuideScope.
2. High Sensitivity

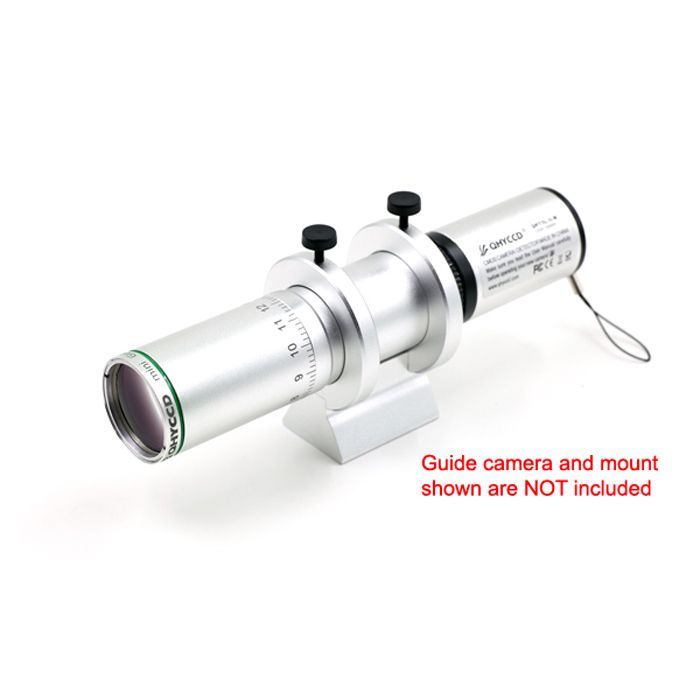

QHYCCD introduced the miniGuideScope to match the famous QHY5L-II planetary/guide camera. However, it is compatible with all of the QHY5II Series cameras and the QHY5III Series cameras. By using a back-illuminated Series III cameras, the sensitivity and accuracy of the system is improved even more. Note that a guide camera (or mounting bracket) is not included with this and must be purchased separately.
3. Small But With High Precision
The miniGuideScope has a focal length of 130mm and a diameter of 30mm. The guidescope weight is only 111g. The use of broadband anti-reflection coating on the achromatic lens assures image quality that is sharper then the use of a telephoto industrial lens. Sharper star images provide better feedback regarding tracking error, so the accuracy of the system is improved.
4. Elegant Appearance
The miniGuideScope is exquisite in workmanship, elegant in style, and has a high face value, which can bring a stylish look to your guiding camera.
5. Focusing design
The front threaded focusing design with locking screw greatly simplifies the focusing mechanism without compromising accuracy. A number is engraved on the front focus ring to make it easy to remember the focus position. It can even be replaced with a short screw to permanently lock it in place once good focus is achieved.
6. Broadband AR Coated Achromatic Lens
Broadband anti-reflection coating on the achromatic lens assures sharp star images thus improving the tracking accuracy of the system.
7. Compatible Cameras (Sold Separately)
QHY5L-II-M, QHY5L-II-C, QHY5R-II-C, QHY5P-II-C, QHY5P-II-M, QHY5III224, QHY5III178, QHY5III185, QHY5III174, QHY5III290
8. Specifications
- Focal length: 130mm
- Aperture: 30mm
- F/ ratio: F/4.3
- Camera interface: C/CS mount
- OTA diameter: 31.6mm (as as QHY5-II/III series cameras)
- Focuser: Front portion of OTA rotates with digit markings and locking mechanism
- Focus Range: Infinity to 1.5m
- Mounting bracket: Not included
9. What's in the Box
- miniGuideScope OTA
- CS to C extender
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
